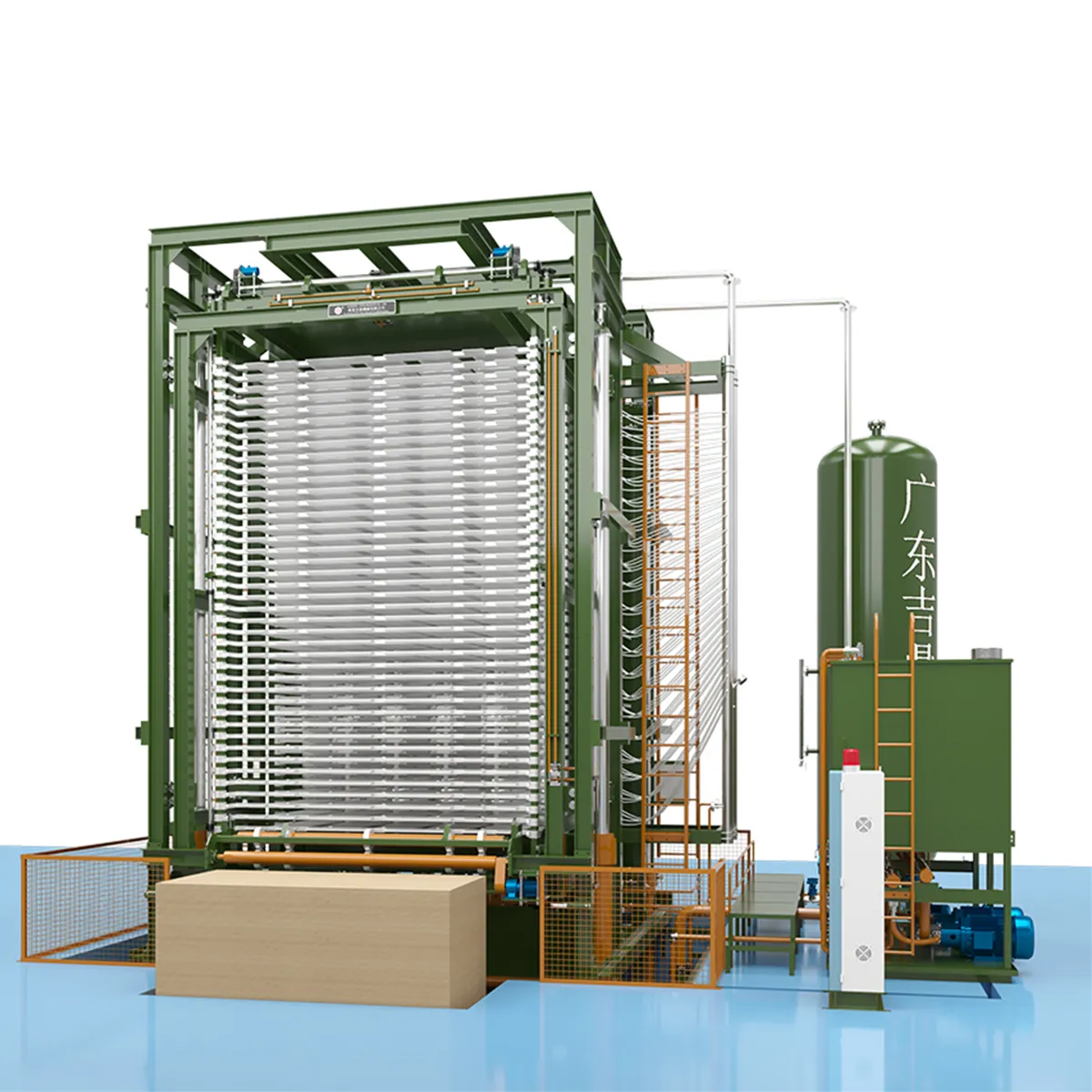

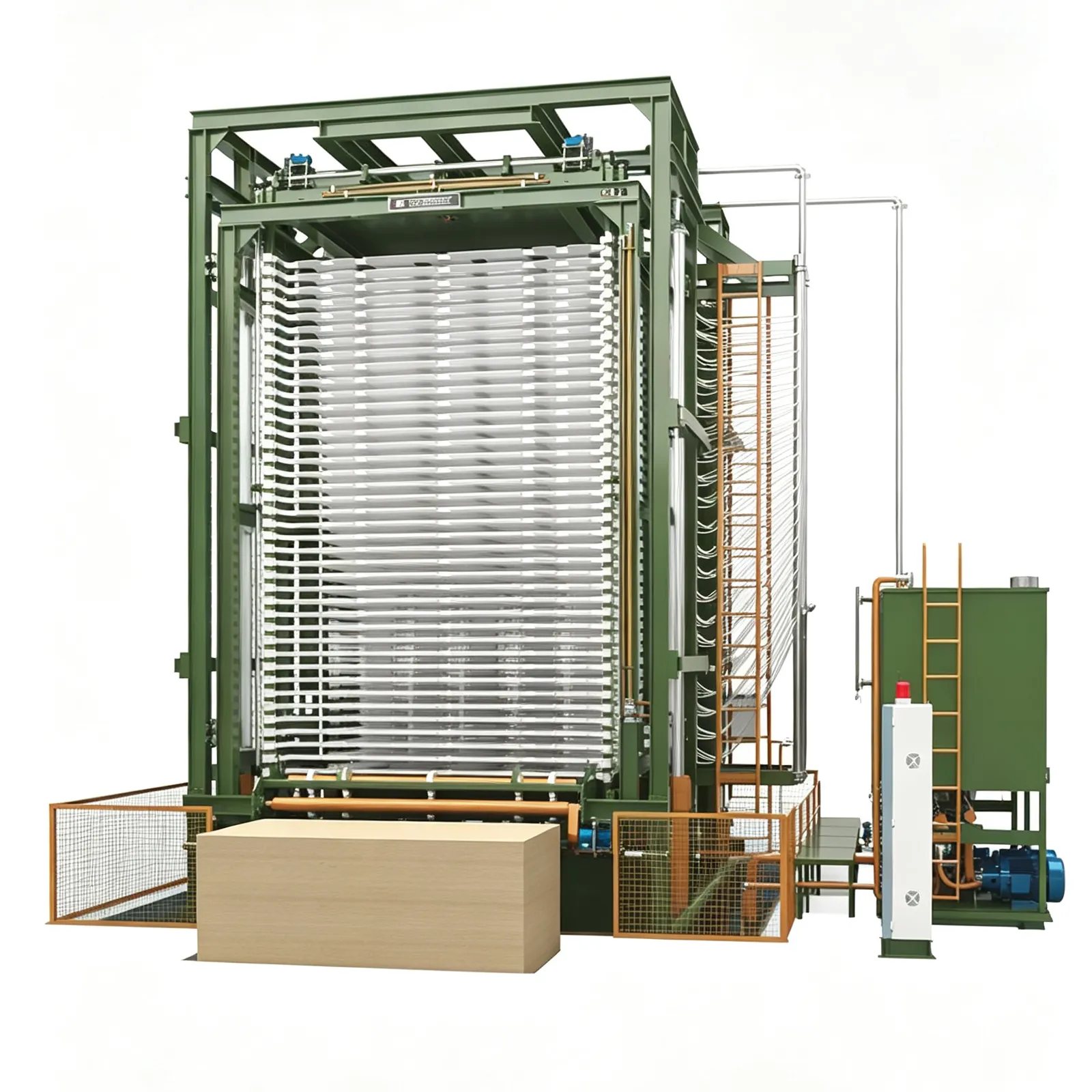

40-layer steam press

    40-layer steam press

    JDRY-800T-40LNominal pressure8000kN Platen sizeL:2700*W:1370*H:42mmFeeding modeDouble in and out Product size (mm)4*8尺:1220*2440mm 1pcsOpen-seat70 mmStorynumber65层Diameter of plunger case(mm)Q320*4700mm*4 pcs Working stroke(mm)2800mmWorking pressure(kg/cm2)21kg/cm2Closing speed(m/min)15m/minOverall size(mm)L:3590*W:1370*H:10600mmNitrogen tank sizeQ1440*6620mm (9m3) 1pcsWeight of nitrogen tank4900kgHydraulic station sizeL:3200*W:1500*H:2800mmTank volume7m3Total weight of hydraulic station5800kgLow pressure pump motor22KW*2 pcsHigh-pressure pump motor5.6KW*1 pcsElevatormotor2.2K...
  • Share：
    • Contact us Inquiry


JDRY-800T-40L

Nominal pressure8000kN

 Platen size

L:2700*W:1370*H:42mm

Feeding modeDouble in and out

 Product size (mm)

4*8尺:1220*2440mm 1pcs


Open-seat70 mm

Storynumber

65层

Diameter of plunger case(mm)Q320*4700mm*4 pcs Working stroke(mm)2800mm
Working pressure(kg/cm2)21kg/cm2Closing speed(m/min)15m/min
Overall size(mm)L:3590*W:1370*H:10600mm

Nitrogen tank size

Q1440*6620mm (9m3) 1pcs
Weight of nitrogen tank4900kgHydraulic station sizeL:3200*W:1500*H:2800mm
Tank volume7m3Total weight of hydraulic station5800kg
Low pressure pump motor22KW*2 pcsHigh-pressure pump motor5.6KW*1 pcs
Elevatormotor2.2KW*1 pcsWhole machine total power(kw)51.8KW
height of workshop7500mmDepth of foundation pit5750mm
Total weight98T




JDRY-800T-40L-ZBJ

Product dimensions(mm)4*8尺:1220X2440mm 1pcs

Open-seat

70mm

Story number40层

Ram& Cylinder(Frames Up)

p140*3050mm*2 pcs (Main)

Working stroke(mm)2900mm

Lifting speed

15m/min

Overall dimensions(mm)L:4220*W:2020*H:7900mmDrive into the boardDouble hydraulic motor
Total weight(T)11.3T





JDRY-800T-25L-XBJ

Product dimensions(mm)4*8尺:1220X2440mm 1pcs

Open-seat

70mm

Story number40层

Ram& Cylinder(Frames Up)

Q140*5120mm*2 pcs

Working stroke(mm)4970mm

Lifting speed

15m/min

Overall dimensions(mm)L:4220*W:1015*H:12400mmDrive into the boardDouble hydraulic motor
Total weight(T)8.9T




Continuous product improvement, when the appearance and parameters of change,are subject to real sample, witnout notice.
