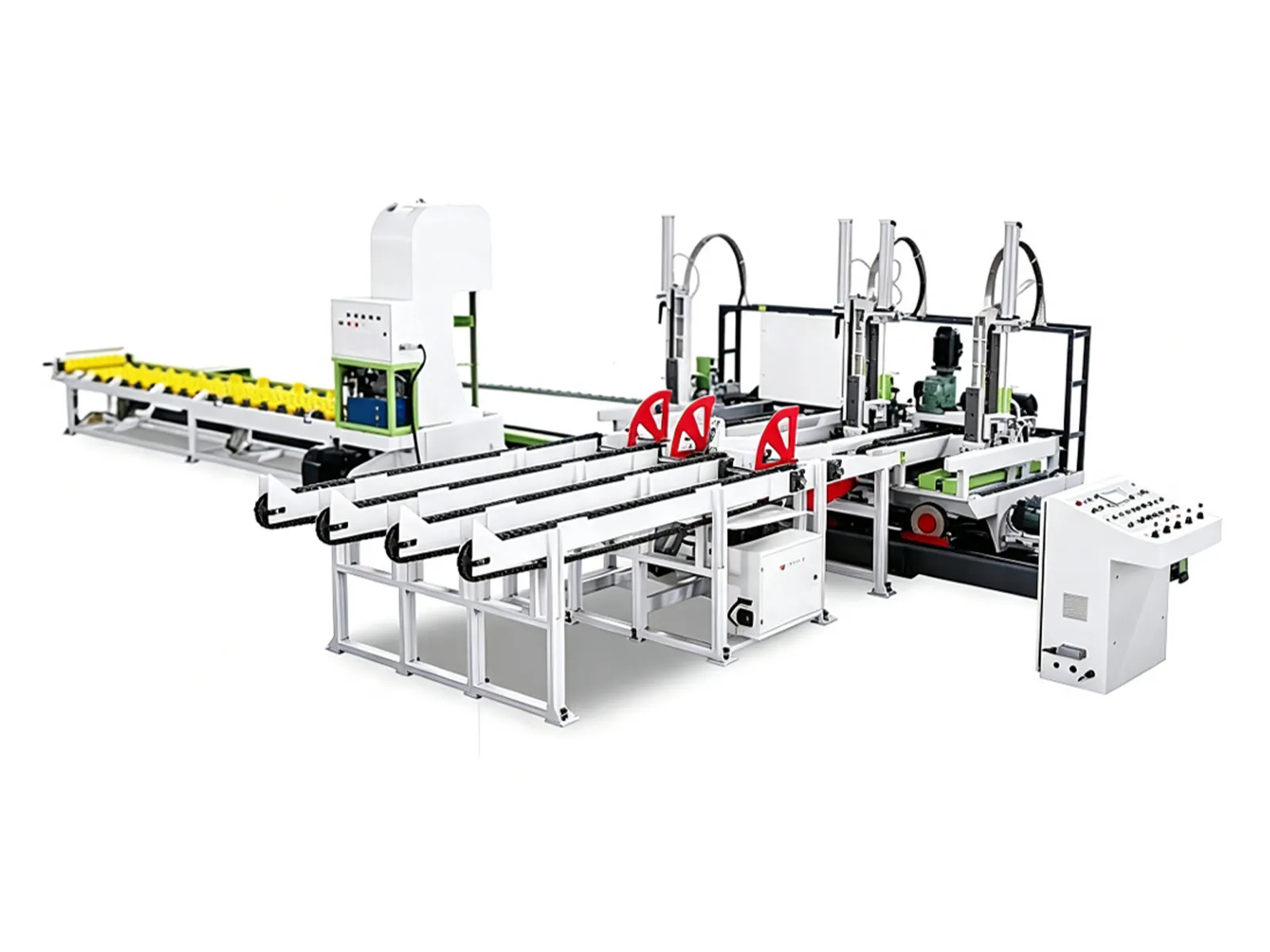

CNC Carriage Band Saw

1.CNC feeding: servo memory sizing, ≤1 mm accuracy, consistent dimensions.
2.Auto loading, turning, clamping.
3.High yield: narrow kerf, less waste, higher utilization.
4.Touchscreen sizing, stable cutting, no experience needed.
5.Labor saving: one operator, one machine, higher efficiency.

Share：

Contact us Inquiry

Detailed Description

Detailed Description

Product Parameters

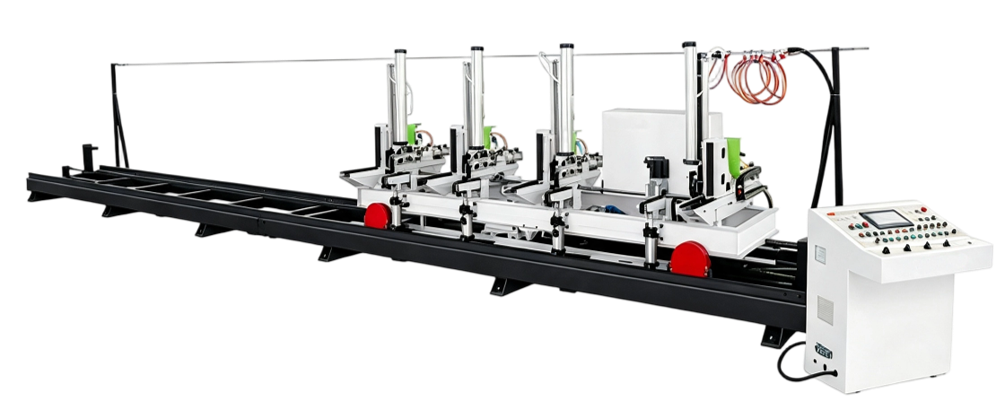

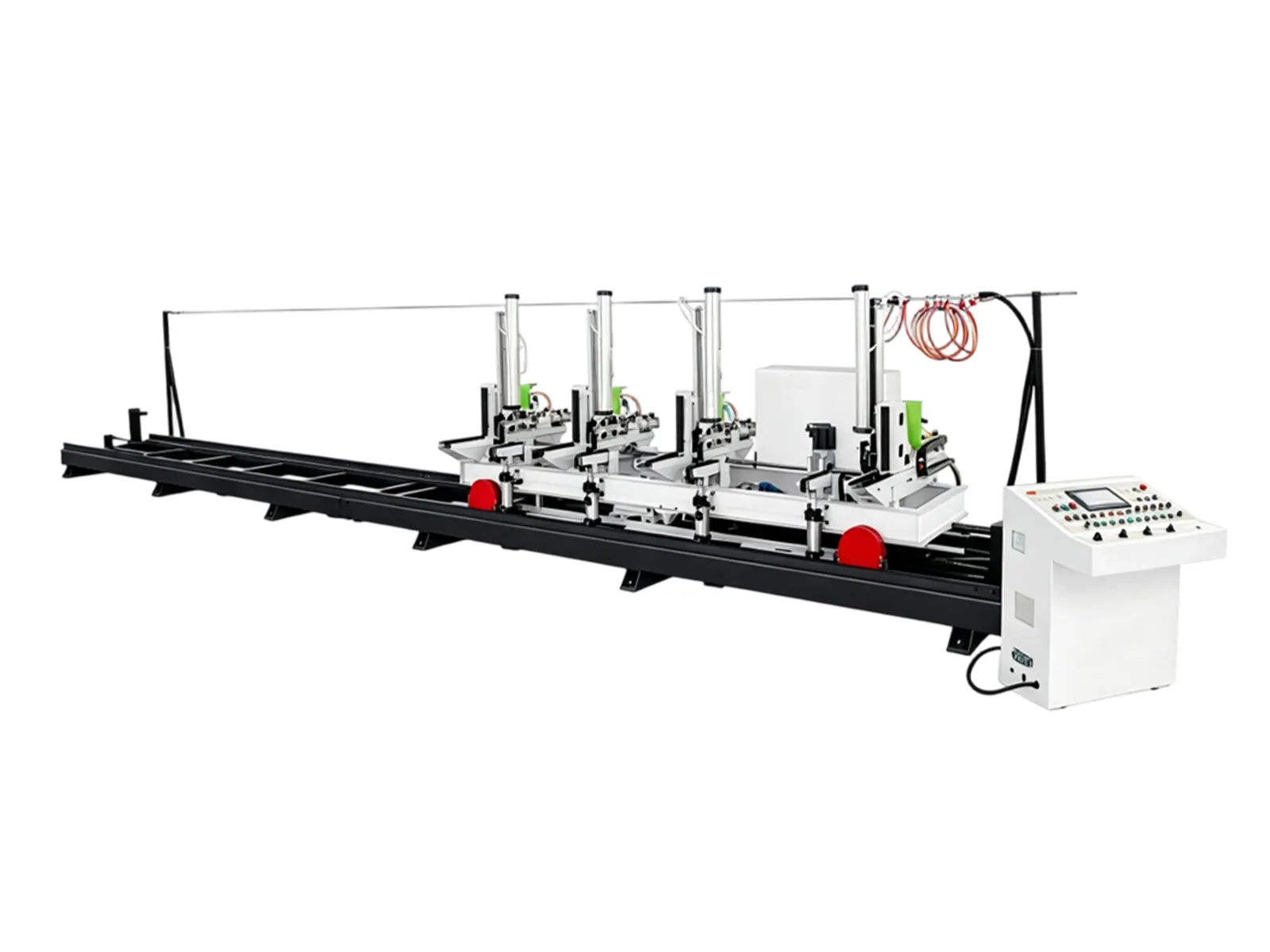

Equipment Model PCDJ-PC3000 PCDJ-PC4000
Total machine weight 6800 kg 7800 kg
Overall dimensions 10200 × 2600 × 2800 mm 12200 × 2600 × 2800 mm
Racing car track length 10000 mm 12000 mm
Workbench Length 3100 mm 4200 mm
Processing Length 900 - 4500 mm 900 - 6000 mm
Turning Arm 3 groups 4 groups
Sports car drive motor 4kW - 4-pole variable frequency 4kW - 4-pole variable frequency
Log feeding motor 2.6 kW servo motor 3 kW servo motor
Log feeding speed 0 - 4 m/min 0 - 4 m/min
Sports car return speed 60 m/min 60 m/min

Product Parameters

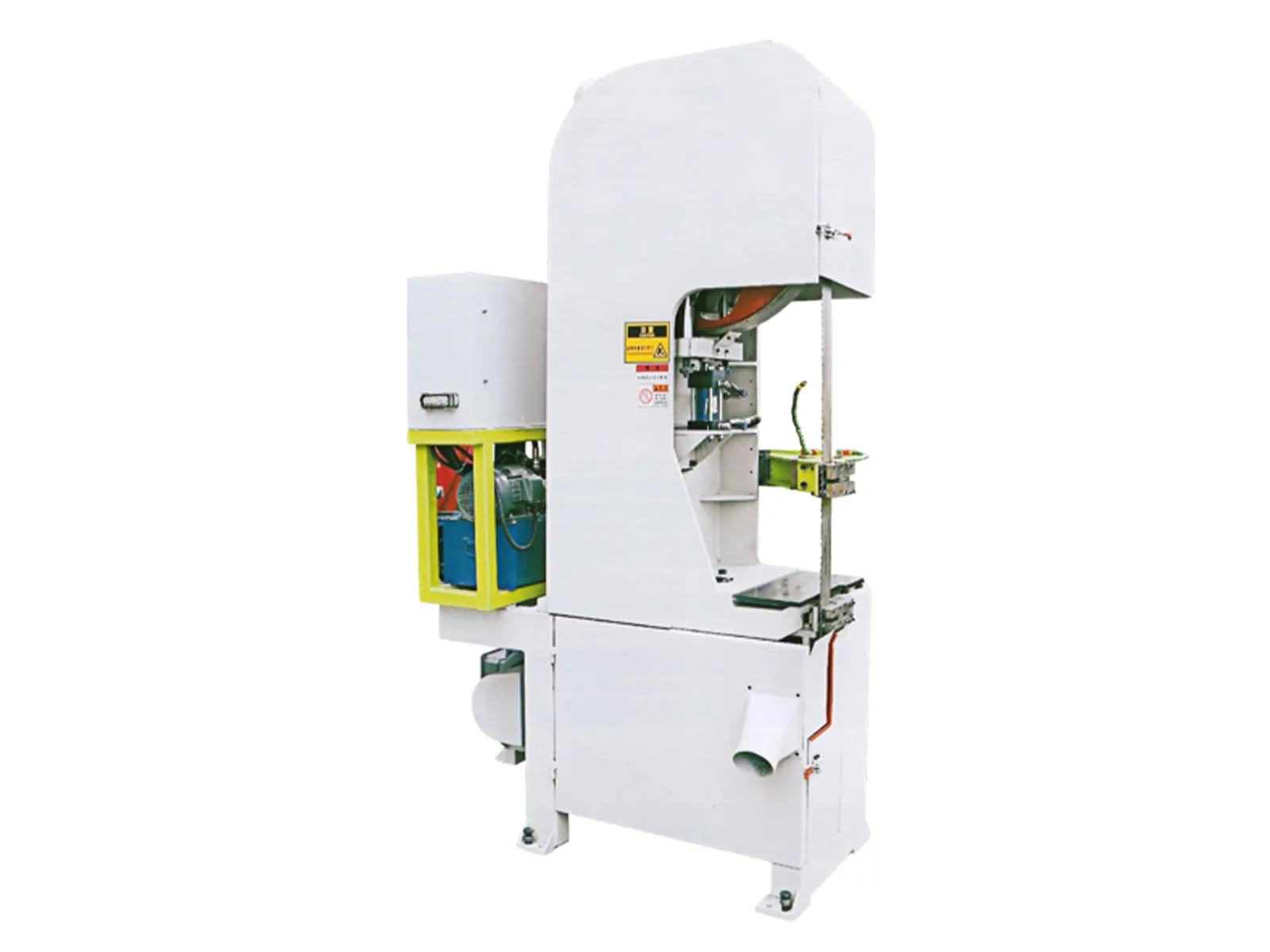

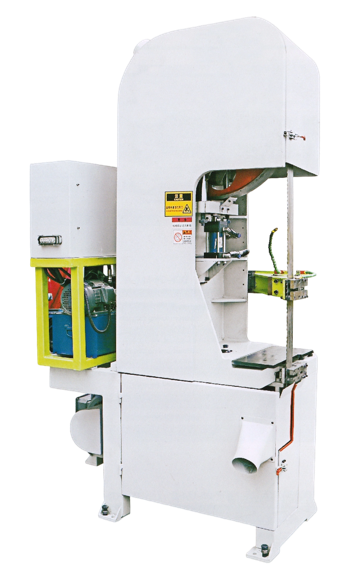

Equipment Model PCDJ-DJ950 PCDJ-PC1200
Total machine weight 2800 kg 3600 kg
Overall dimensions 1750 × 2150 × 3150 mm 1750 × 2400 × 3600 mm
Maximum Sawing Diameter 950 mm 1200 mm
Saw wheel diameter 1020 mm (40 inches) 1220 mm (48 inches)
Saw wheel width 105 mm 130 mm
Material passing width 400 mm 500 mm
Saw wheel speed 400 - 600 r/min 400 - 500 r/min
Saw blade size 6900×(105-125)×1.6/1.8mm 8300×(125-140)×1.6/1.8mm
Saw wheel motor 37 kw 45 kw
Saw clamp lifting motor 0.37 kw 0.37 kw
Saw blade tension pressure 120 - 180 kg/m² 150 - 200 kg/m²

Product Parameters

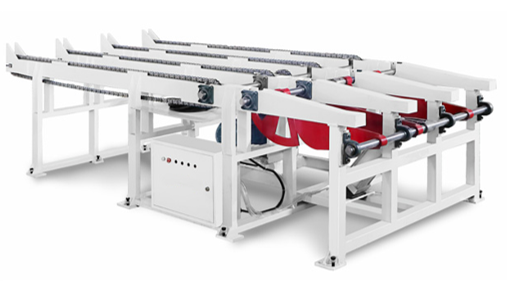

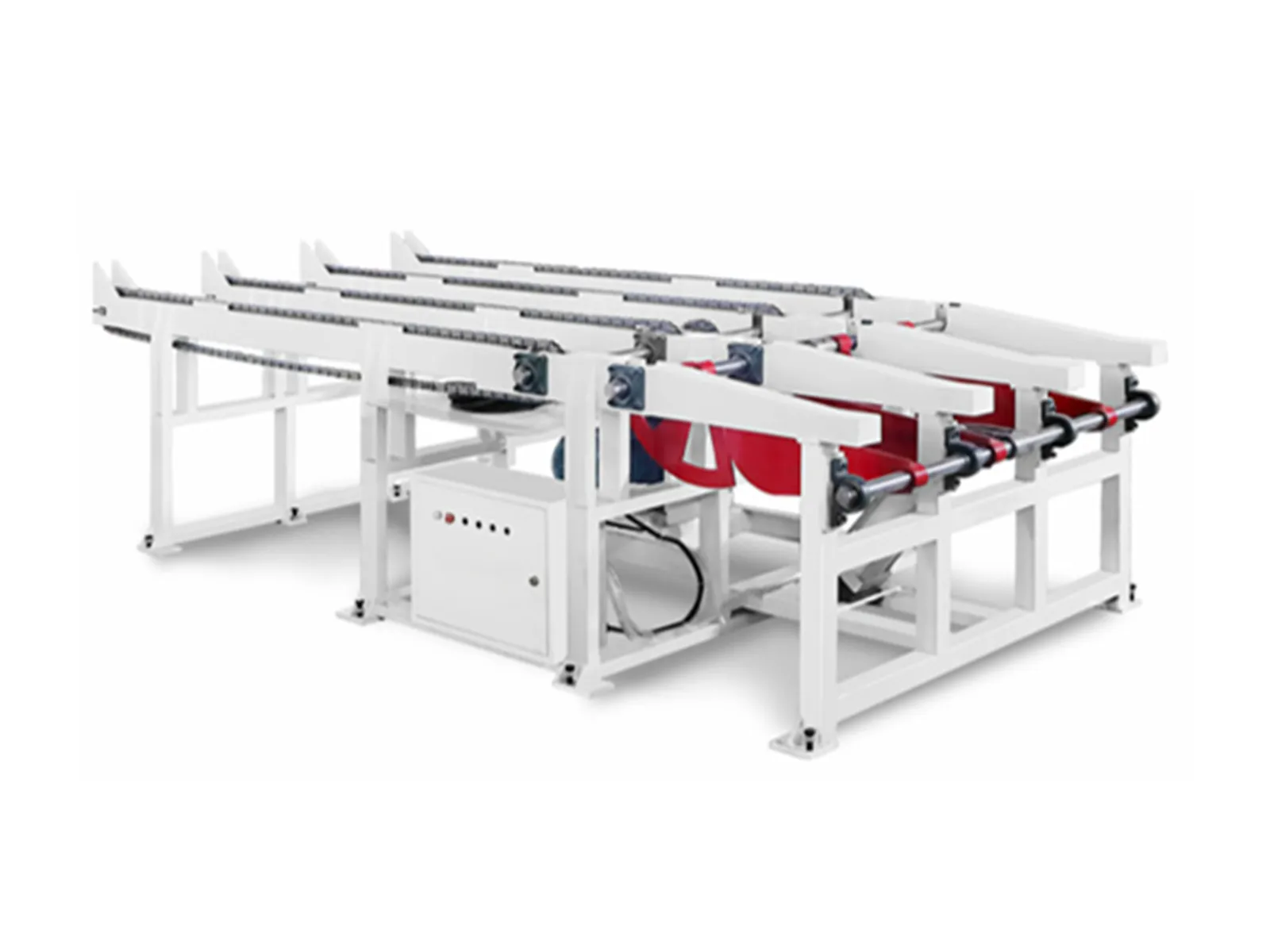

Equipment Model PCDJ-SL3000 (Log Loading Rack)
Total machine weight 2200 kg
Overall dimensions 4600 × 2800 × 1000 mm
Motor power 4 kW - 4-pole
No.1 Pusher Cylinder SC 160 × 250
No.2 Pusher Cylinder SC 160 × 300
Operating Voltage 380 V, 50Hz
Operating Air Pressure 0.7 Mpa

Product Parameters

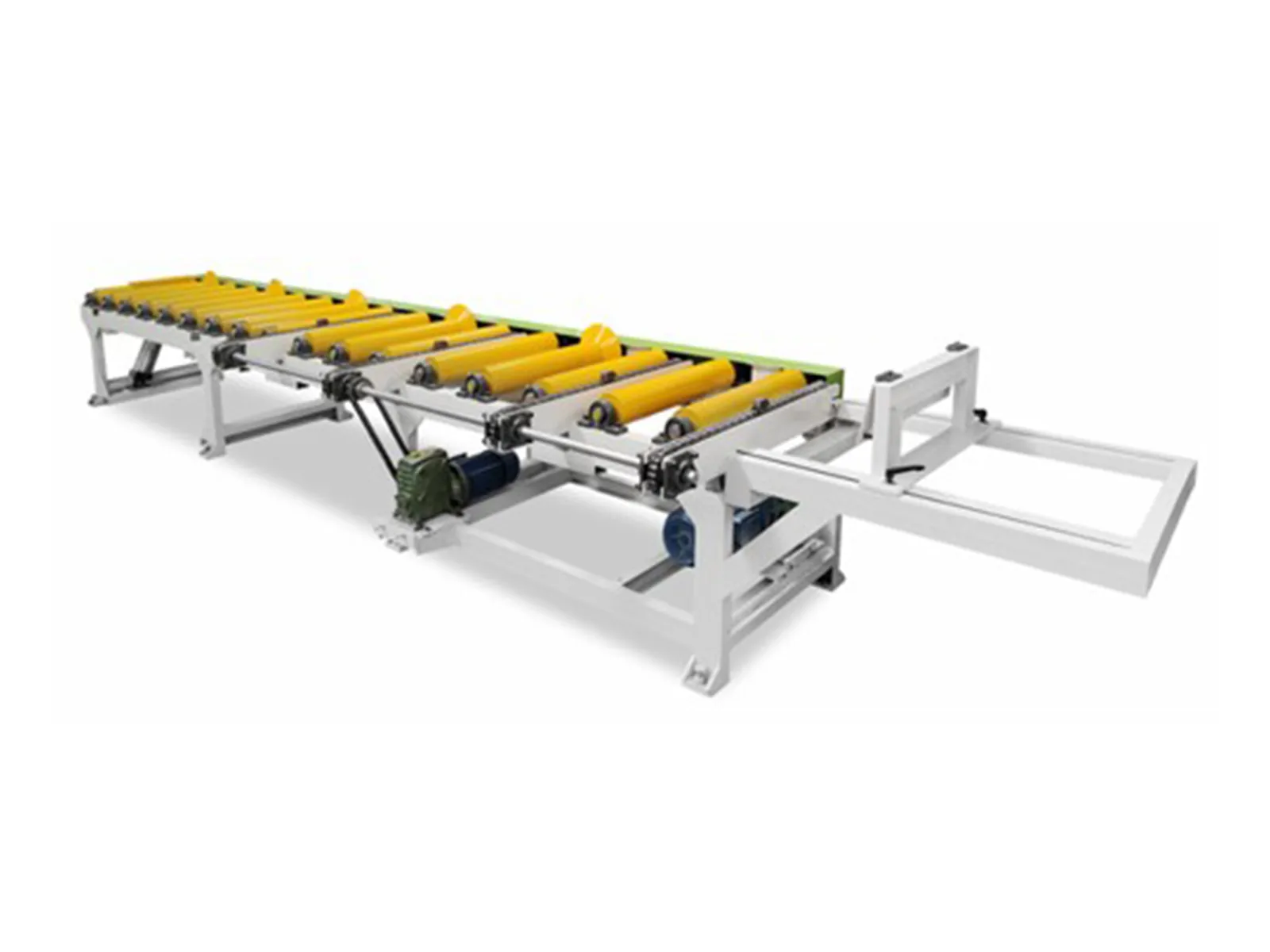

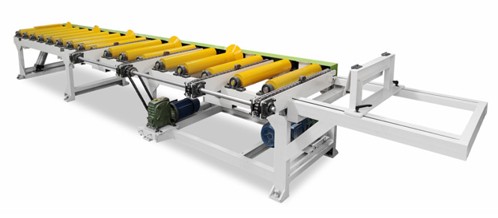

Equipment Model PCDJ-XL6000 (Log Unloading Rack)
Total machine weight 1500 kg
Overall dimensions 5700 × 2250 × 850 mm
Roller motor power 2.2 kW - 4-pole
Power of transverse moving chain 1.5 kW - 4-pole
Armrest cylinder SC 80 × 200
Operating Voltage 380 V, 50Hz
Operating Air Pressure 0.7 Mpa

Related tags：

Previous page： None

Next page： None

Equipment Model	PCDJ-PC3000	PCDJ-PC4000
Total machine weight	6800 kg	7800 kg
Overall dimensions	10200 × 2600 × 2800 mm	12200 × 2600 × 2800 mm
Racing car track length	10000 mm	12000 mm
Workbench Length	3100 mm	4200 mm
Processing Length	900 - 4500 mm	900 - 6000 mm
Turning Arm	3 groups	4 groups
Sports car drive motor	4kW - 4-pole variable frequency	4kW - 4-pole variable frequency
Log feeding motor	2.6 kW servo motor	3 kW servo motor
Log feeding speed	0 - 4 m/min	0 - 4 m/min
Sports car return speed	60 m/min	60 m/min

Equipment Model	PCDJ-DJ950	PCDJ-PC1200
Total machine weight	2800 kg	3600 kg
Overall dimensions	1750 × 2150 × 3150 mm	1750 × 2400 × 3600 mm
Maximum Sawing Diameter	950 mm	1200 mm
Saw wheel diameter	1020 mm (40 inches)	1220 mm (48 inches)
Saw wheel width	105 mm	130 mm
Material passing width	400 mm	500 mm
Saw wheel speed	400 - 600 r/min	400 - 500 r/min
Saw blade size	6900×(105-125)×1.6/1.8mm	8300×(125-140)×1.6/1.8mm
Saw wheel motor	37 kw	45 kw
Saw clamp lifting motor	0.37 kw	0.37 kw
Saw blade tension pressure	120 - 180 kg/m²	150 - 200 kg/m²

Equipment Model	PCDJ-SL3000 (Log Loading Rack)
Total machine weight	2200 kg
Overall dimensions	4600 × 2800 × 1000 mm
Motor power	4 kW - 4-pole
No.1 Pusher Cylinder	SC 160 × 250
No.2 Pusher Cylinder	SC 160 × 300
Operating Voltage	380 V, 50Hz
Operating Air Pressure	0.7 Mpa

Equipment Model	PCDJ-XL6000 (Log Unloading Rack)
Total machine weight	1500 kg
Overall dimensions	5700 × 2250 × 850 mm
Roller motor power	2.2 kW - 4-pole
Power of transverse moving chain	1.5 kW - 4-pole
Armrest cylinder	SC 80 × 200
Operating Voltage	380 V, 50Hz
Operating Air Pressure	0.7 Mpa
