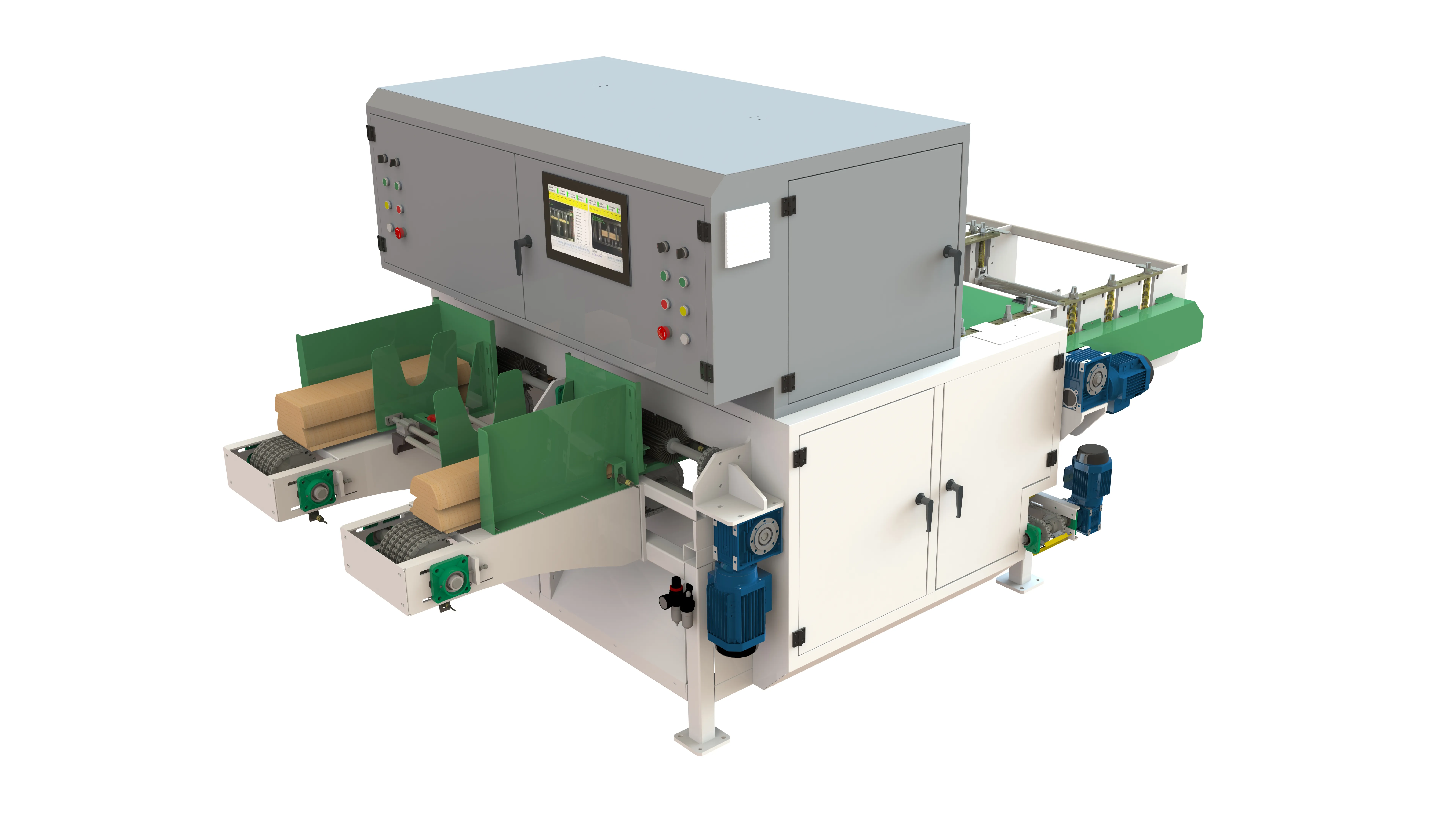

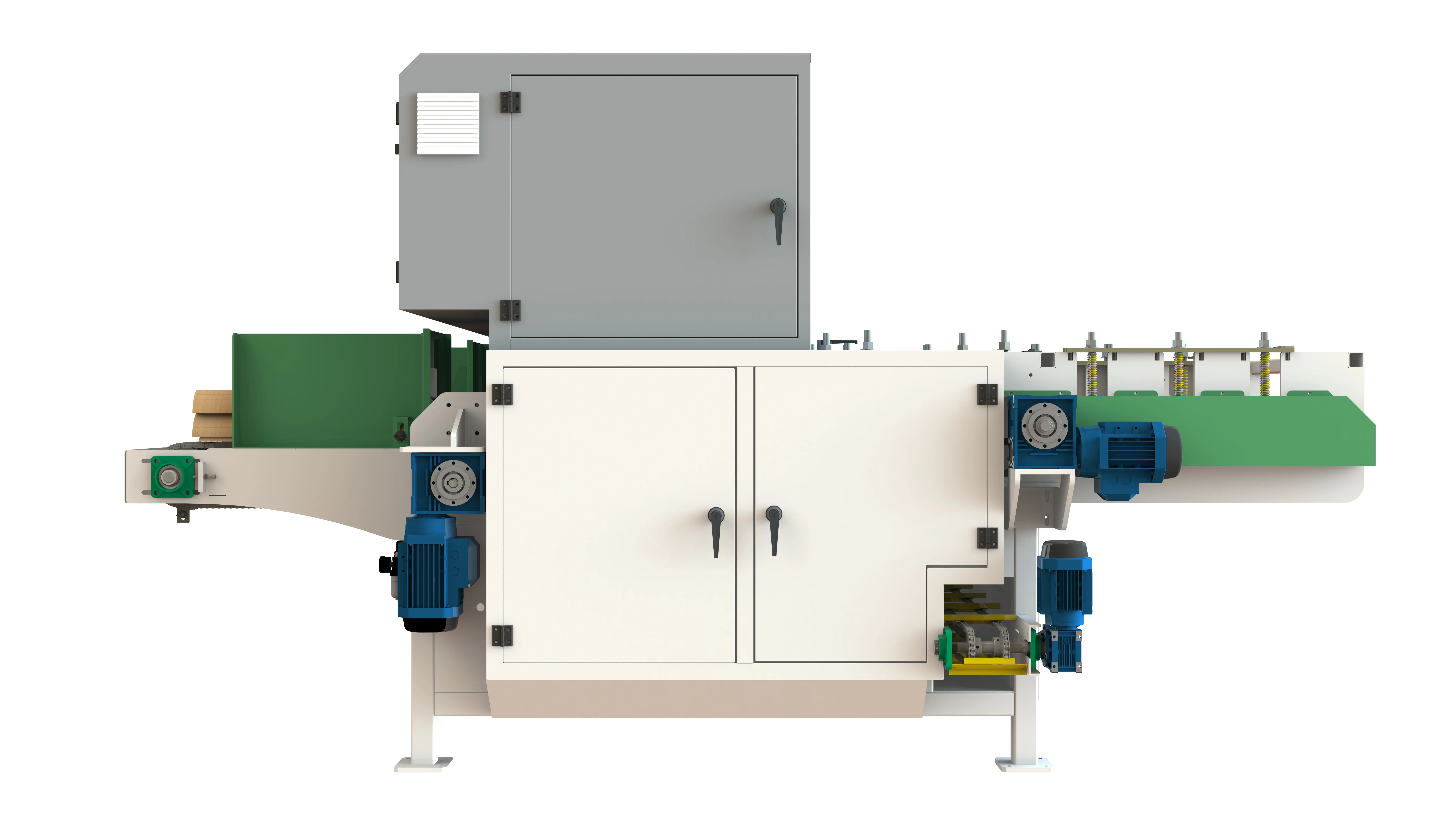

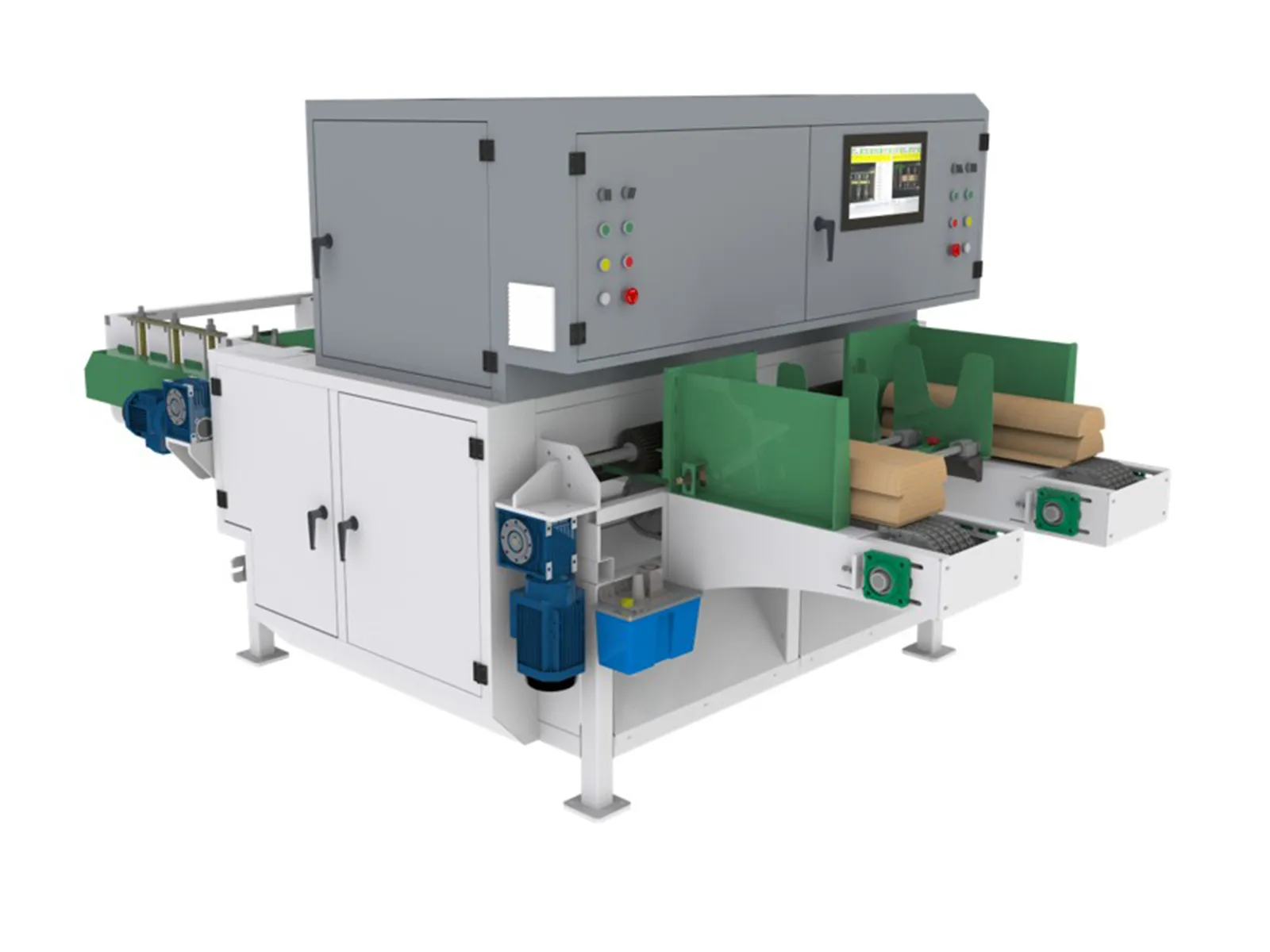

Dual-Station Fixed-Axis Intelligent Edge Trimming Machine

1.The intelligent edge-trimming machine is a set of automated woodworking equipment integrating AI machine vision, servo control, automatic feeding and intelligent cutting.
2.It performs automatic edge trimming and fixed-width cutting for rough-edged planks, random-width boards and edge off-cuts to maximize timber yield, replacing traditional manual and semi-automatic edge-trimming workflows.

Share：

Contact us Inquiry

Detailed Description

Detailed Description

Core Technologies & Advantages

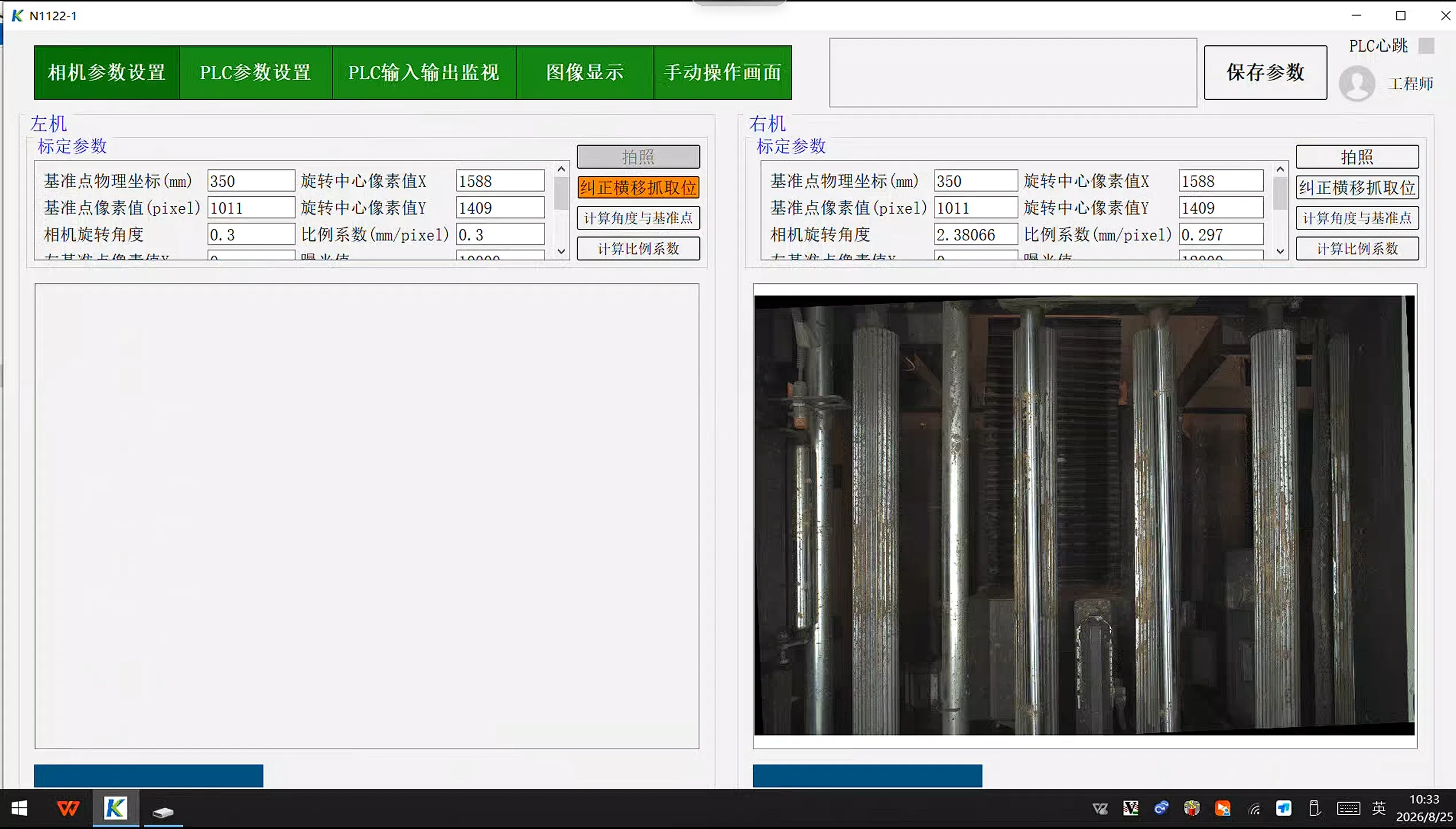

AI Visual Recognition
Adapts to dirt, defects and various materials; positioning accuracy up to 0.1 mm.
Intelligent Deviation Correction
Servo & rotary correction, angle accuracy 0.1°, stable repeated positioning.
High Productivity
Capacity: 28–32 pcs/min, saving 1–2 workers per unit.
Higher Yield Rate
Yield increased by 20%–30% vs. traditional processing, less waste.
High Automation
One-touch operation, low dependence on skilled labor.

Product Parameters
Equipment Model QBJ-500SG QBJ-700SG QBJ-1200SG
main color White + Gray White + Gray White + Gray
total power 18.5 kw 18.5 kw 18.5 kw
size /W-L-H 2.1×3.1×1.8m 2.1×4×1.8m 2.1×4.7×1.8m
Total Weight 1.8 T 2.06 T 2.28 T
processing width 40-200mm 40-200mm 40-200mm
processing thickness 10-25mm 10-25mm 10-25mm
processing length 450-500mm 500-700mm 700-1200mm
spindle specifications Φ 50mm Φ 50mm Φ 50mm
spindle speed 3750 rpm 3750 rpm 3750 rpm
main motor power 5.5Kw × 2 pcs 5.5Kw × 2 pcs 5.5Kw × 2 pcs
feeding motor power 0.75 Kw × 6 pcs 0.75 Kw × 6 pcs 0.75 Kw × 6 pcs
feeding speed Max 50 m/min Max 50 m/min Max 50 m/min
efficiency 4800 pcs/h 3400 pcs/h 2000 pcs/h
blade size 150 × 1.9 × 50 × 20T / 160 × 1.9 × 50 × 20T 150 × 1.9 × 50 × 20T / 160 × 1.9 × 50 × 20T 150 × 1.9 × 50 × 20T / 160 × 1.9 × 50 × 20T
Working Pressure 0.6-0.8Mpa, dry compressed air 0.6-0.8Mpa, dry compressed air 0.6-0.8Mpa, dry compressed air
Working Temperature Indoor, -10℃~40℃ Indoor, -10℃~40℃ Indoor, -10℃~40℃
Power Supply 3-phase 380V, 50Hz, voltage fluctuation ±5% 3-phase 380V, 50Hz, voltage fluctuation ±5% 3-phase 380V, 50Hz, voltage fluctuation ±5%
