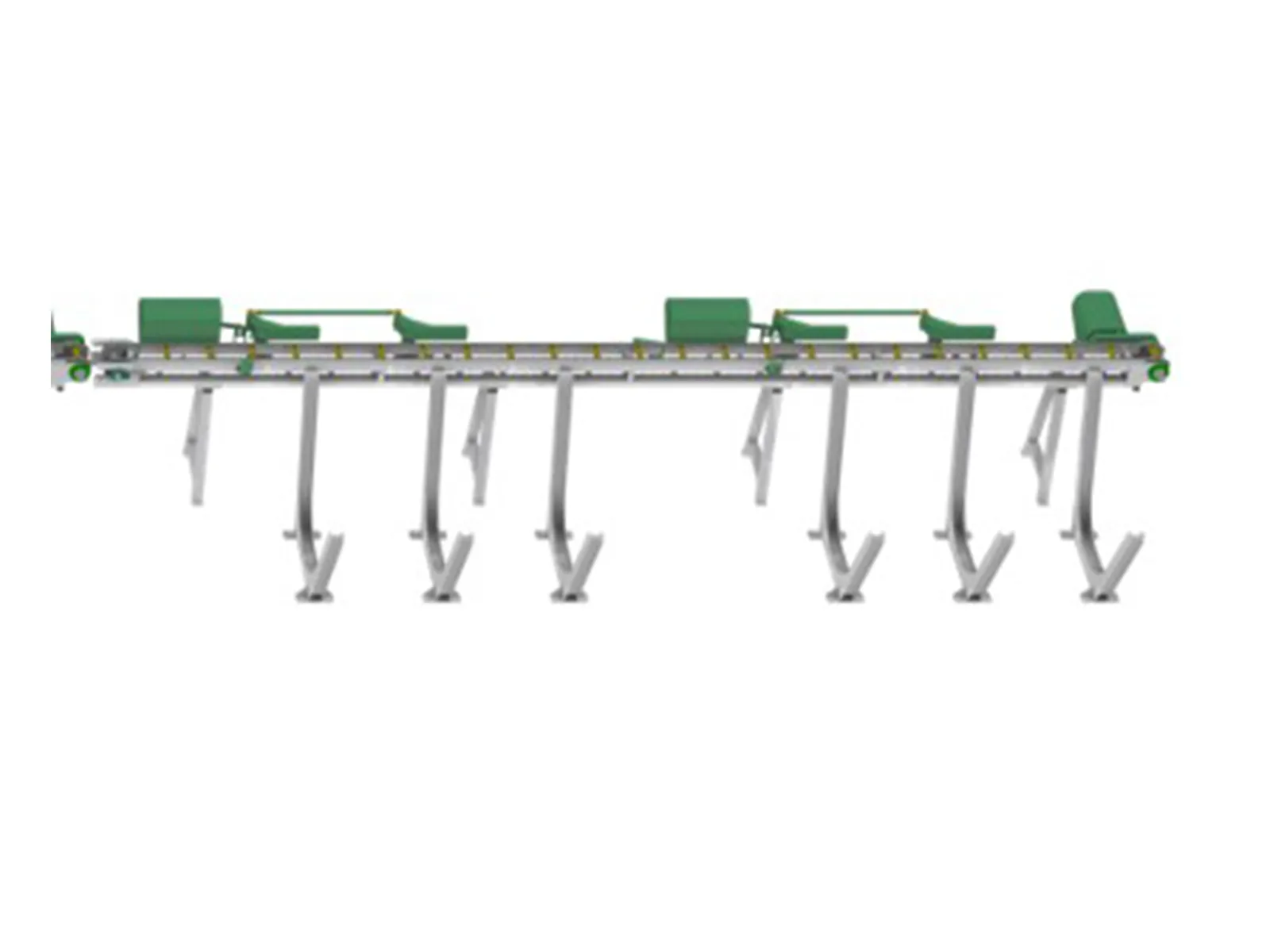

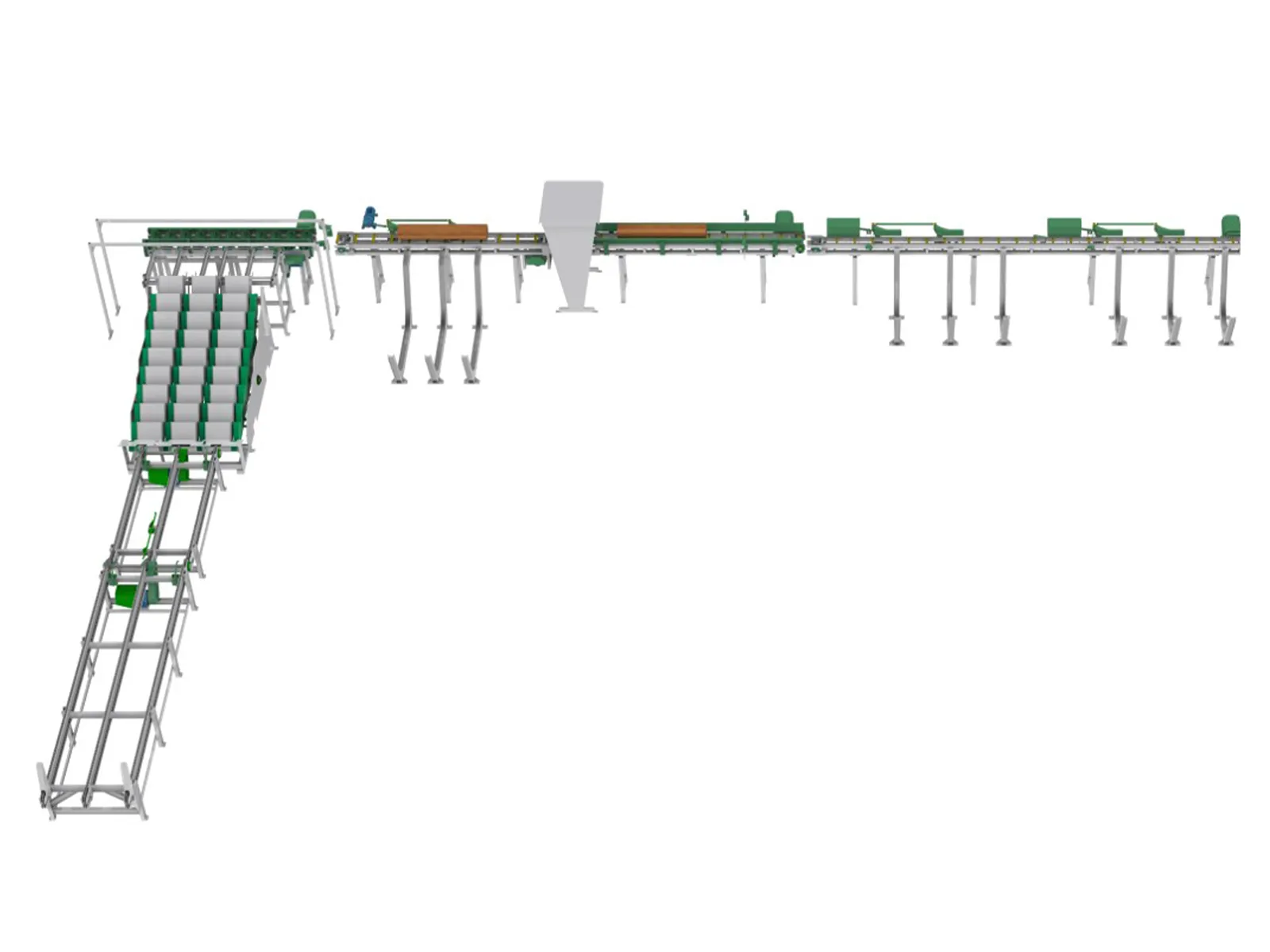

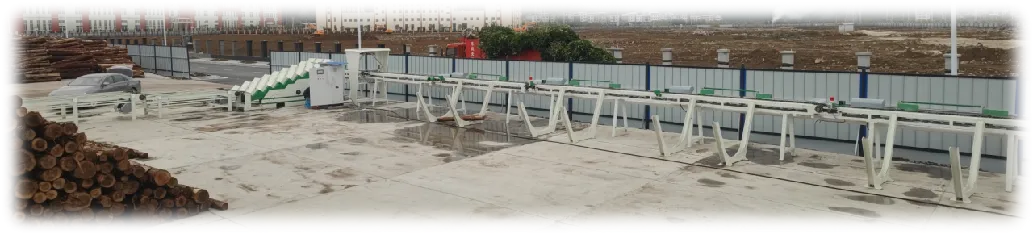

Log Sorting Line

1.One-stop automation: length,diameter sorting.
2.Cloud storage & local export for data.
3.Customizable sorting ports, special-shaped screening, extendable.
4.AI recognition, >95% accuracy.
5.One operator, no pre-sorting or manual errors.
6.Separates abnormal logs to protect equipment.

Share：

Contact us Inquiry

Detailed Description

Detailed Description

Product Parameters
Equipment Model YMFX-4P-3000 YMFX-8P-3000 YMFX-4P-6000 YMFX-6P-6000
Total machine weight 12800 kg 18000 kg 13600 kg 16600 kg
Overall dimensions 36000 × 17600 × 2600 mm 56000 × 17600 × 2600 mm 72000 × 17600 × 2600 mm 92000 × 17600 × 2600 mm
Loading frame power 4 kw × 2pcs 4 kw × 2pcs 5.5 kw × 2pcs 5.5 kw × 2pcs
Stair climber power 7.5 kw 7.5 kw 11 kw 11 kw
Stepper width 3000 mm 3000 mm 5000 mm 5000 mm
Log diameter range 60 - 600mm / 300 -1000 mm (Customized according to requirements) 60 - 600mm / 300 -1000 mm (Customized according to requirements) 60 - 600mm / 300 -1000 mm (Customized according to requirements) 60 - 600mm / 300 -1000 mm (Customized according to requirements)
Log length range 2000 - 3000 mm 2000 - 3000 mm 2500 - 6000 mm 2500 - 6000 mm
Material distributing outlet 4 sets + 1 set special-shaped materials 8 sets + 1 set special-shaped materials 4 sets + 1 set special-shaped materials 6 sets + 1 set special-shaped materials
Feeding motor 2.2kw × 3pcs+3 kw × 2 pcs 2.2kw × 3pcs+3 kw × 4 pcs 3kw × 3pcs+4 kw × 2 pcs 3kw × 3pcs+4 kw × 3 pcs
Kick material motor power 3 kw × 5 pcs 3 kw × 9 pcs 3 kw × 5 pcs 3 kw × 7 pcs
Log inspection Scanning and inspection by two/three sets of precision grating instruments with an accuracy error of ±1.5mm Scanning and inspection by two/three sets of precision grating instruments with an accuracy error of ±1.5mm Scanning and inspection by two/three sets of precision grating instruments with an accuracy error of ±1.5mm Scanning and inspection by two/three sets of precision grating instruments with an accuracy error of ±1.5mm
Additional Functions Configurable metal detection devices, system networked monitoring, customized mobile APP programs, etc. Configurable metal detection devices, system networked monitoring, customized mobile APP programs, etc. Configurable metal detection devices, system networked monitoring, customized mobile APP programs, etc. Configurable metal detection devices, system networked monitoring, customized mobile APP programs, etc.

Related tags：

Previous page： None

Next page： None

Equipment Model	YMFX-4P-3000	YMFX-8P-3000	YMFX-4P-6000	YMFX-6P-6000
Total machine weight	12800 kg	18000 kg	13600 kg	16600 kg
Overall dimensions	36000 × 17600 × 2600 mm	56000 × 17600 × 2600 mm	72000 × 17600 × 2600 mm	92000 × 17600 × 2600 mm
Loading frame power	4 kw × 2pcs	4 kw × 2pcs	5.5 kw × 2pcs	5.5 kw × 2pcs
Stair climber power	7.5 kw	7.5 kw	11 kw	11 kw
Stepper width	3000 mm	3000 mm	5000 mm	5000 mm
Log diameter range	60 - 600mm / 300 -1000 mm (Customized according to requirements)	60 - 600mm / 300 -1000 mm (Customized according to requirements)	60 - 600mm / 300 -1000 mm (Customized according to requirements)	60 - 600mm / 300 -1000 mm (Customized according to requirements)
Log length range	2000 - 3000 mm	2000 - 3000 mm	2500 - 6000 mm	2500 - 6000 mm
Material distributing outlet	4 sets + 1 set special-shaped materials	8 sets + 1 set special-shaped materials	4 sets + 1 set special-shaped materials	6 sets + 1 set special-shaped materials
Feeding motor	2.2kw × 3pcs+3 kw × 2 pcs	2.2kw × 3pcs+3 kw × 4 pcs	3kw × 3pcs+4 kw × 2 pcs	3kw × 3pcs+4 kw × 3 pcs
Kick material motor power	3 kw × 5 pcs	3 kw × 9 pcs	3 kw × 5 pcs	3 kw × 7 pcs
Log inspection	Scanning and inspection by two/three sets of precision grating instruments with an accuracy error of ±1.5mm	Scanning and inspection by two/three sets of precision grating instruments with an accuracy error of ±1.5mm	Scanning and inspection by two/three sets of precision grating instruments with an accuracy error of ±1.5mm	Scanning and inspection by two/three sets of precision grating instruments with an accuracy error of ±1.5mm
Additional Functions	Configurable metal detection devices, system networked monitoring, customized mobile APP programs, etc.	Configurable metal detection devices, system networked monitoring, customized mobile APP programs, etc.	Configurable metal detection devices, system networked monitoring, customized mobile APP programs, etc.	Configurable metal detection devices, system networked monitoring, customized mobile APP programs, etc.
