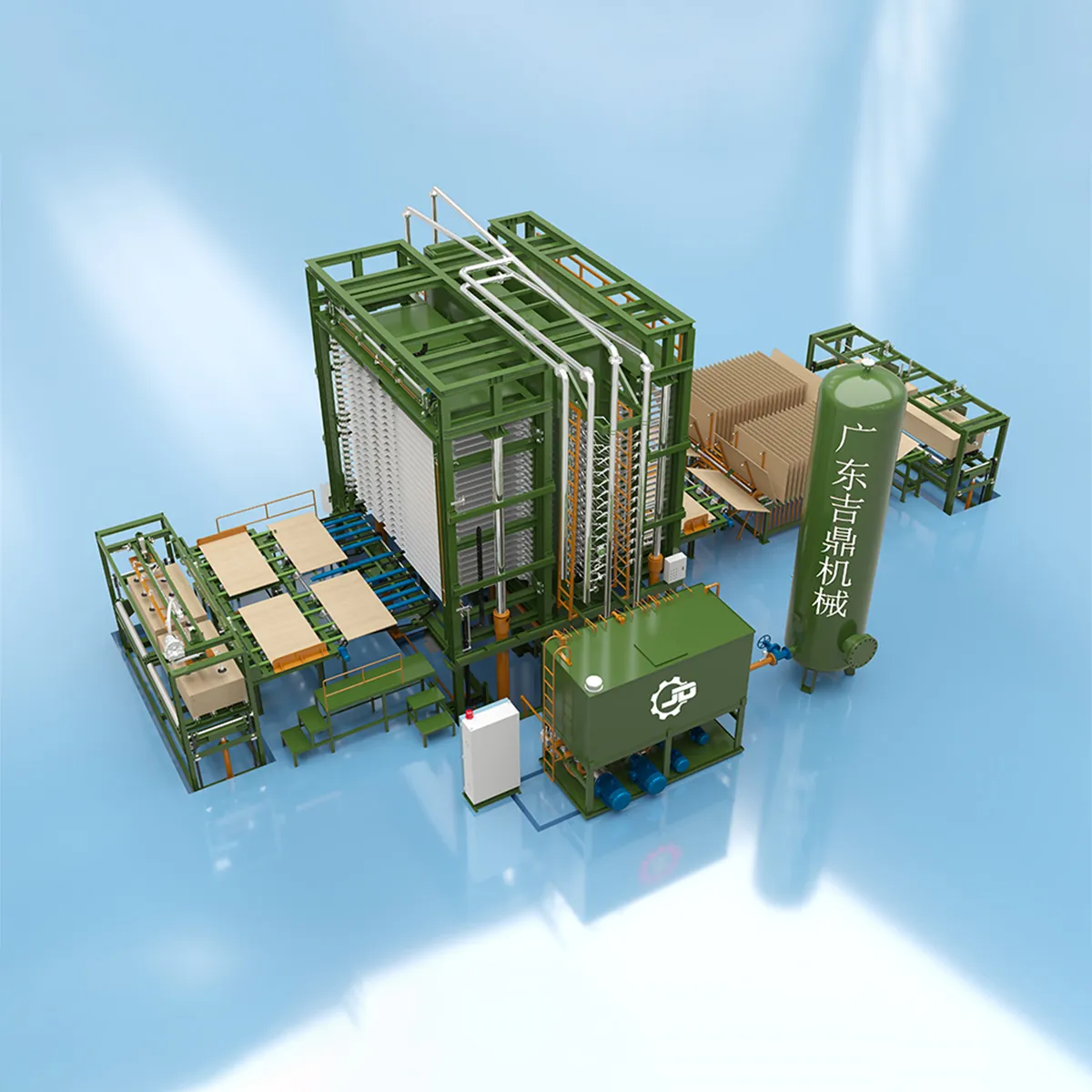

25 story automatic press

JDRY-1000T-25LNominal pressure10000kN Platen sizeL:4200*W:1370*H:60mmFeeding modeDouble in and out Product size (mm)1270*3000 1Pcs;1270*3650 1Pcs1270*3950 1Pcs; 1270*1830 2Pcs970*1830 2PcsOpen-seat80 mmStory number25层Diameter of plunger case(mm)$260*2150mm*8 pcs Working stroke(mm)2000mmWorking pressure(kg/cm2)17kg/cm2Closing speed(m/min)15m/minOverall size(mm)L:5030*W:1370*H:7200mmNitrogen tank sizep1440*6620mm (9m3) 1pcsWeight of nitrogen tank4900kgHydraulic station sizeL:3200*W:1500*H:2800mmTank volume7m3Total weight5800kgLow pressure pump motor22KW*2 pcsHighpump motor5.6KW*1...

Inquiry

Detailed Description

JDRY-1000T-25L
Nominal pressure	10000kN	Platen size	L:4200W:1370H:60mm
Feeding mode	Double in and out	Product size (mm)	12703000 1Pcs;12703650 1Pcs12703950 1Pcs; 12701830 2Pcs970*1830 2Pcs
Open-seat	80 mm	Story number	25层
Diameter of plunger case(mm)	$2602150mm8 pcs	Working stroke(mm)	2000mm
Working pressure(kg/cm2)	17kg/cm2	Closing speed(m/min)	15m/min
Overall size(mm)	L:5030W:1370H:7200mm	Nitrogen tank size	p1440*6620mm (9m3) 1pcs
Weight of nitrogen tank	4900kg	Hydraulic station size	L:3200W:1500H:2800mm
Tank volume	7m3	Total weight	5800kg
Low pressure pump motor	22KW*2 pcs	Highpump motor	5.6KW*1 pcs
Elevator motor	2.2KW*1 pcs	total power(kw)	51.8KW
Depth of foundation pit	6500mm	Total weight	120T

JDRY-1000T-25L-ZBJ
Product dimensions(mm)	12703000 1Pcs; 12703650 1Pcs12703950 1Pcs; 12701830 2Pcs970*1830 2Pcs	Open-seat	80mm
Story number	25层	Ram& Cylinder(Frames Up)	Q1953700mm2 pcs
Working stroke(mm)	3550mm	Lifting speed	15m/min
Drive into the board	Double hydraulic motor	Total weight(T)	17T

JDRY-1000T-25L-XBJ
Product dimensions(mm)	12703000 1Pcs; 12703650 1Pcs12703950 1Pcs; 12701830 2Pcs970*1830 2Pcs	Open-seat	80mm
Story number	25层	Ram& Cylinder(Frames Up)	Q1603700mm2 pcs
Working stroke(mm)	3550mm	Lifting speed	15m/min
		Total weight(T)	12T

Double position suction cup feeding machine
Negative pressure power	3.75kw	Total weight(T)	0.8T

Double station frame type automatic plate collector
Closing heigh	1200mm	lBelt motor	0.75kw
Cage lifting platform	5T	Total weight	4T
