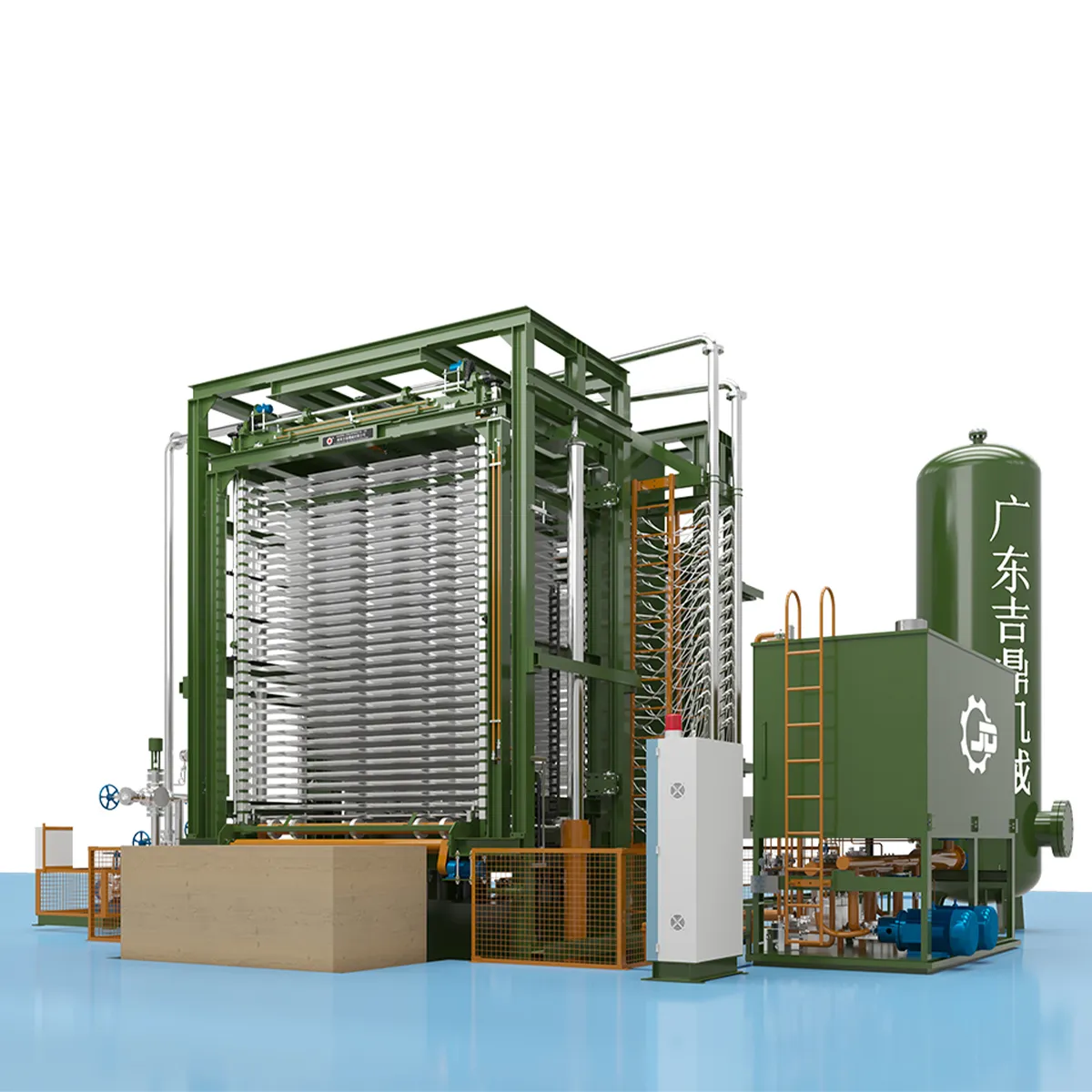

30-layer stand-alone thermal oil press

    30-layer stand-alone thermal oil press

    JDRY-800T-30LNominal pressure8000kN Platen sizeL:2700*W:1370*H:42mmFeeding modeDouble in and out Product size (mm)4*8尺:1220*2440mm 1pcsOpen-seat70 mmStorynumber30层Diameter of plunger case(mm)$320*2250mm*4 pcs (Main) Working stroke(mm)2800mmWorking pressure(kg/cm2)21kg/cm2Closing speed(m/min)15m/minOverall size(mm)L:3590*W:1370*H:6650mmNitrogen tank size$1440*6620mm (9m3) 1pcsWeight of nitrogen tank4900kgHydraulic station sizeL:3200*W:1500*H:2800mmTank volume7m3Total weight of hydraulic station5800kgLow pressure pump motor22KW*2 pcsHigh-pressure pump motor5.6KW*1 pcsElevatormot...
  • Share：
    • Contact us Inquiry


JDRY-800T-30L

Nominal pressure8000kN

 Platen size

L:2700*W:1370*H:42mm

Feeding modeDouble in and out

 Product size (mm)

4*8尺:1220*2440mm 1pcs


Open-seat70 mm

Storynumber

30层

Diameter of plunger case(mm)$320*2250mm*4 pcs (Main) Working stroke(mm)2800mm
Working pressure(kg/cm2)21kg/cm2Closing speed(m/min)15m/min
Overall size(mm)L:3590*W:1370*H:6650mm

Nitrogen tank size

$1440*6620mm (9m3) 1pcs
Weight of nitrogen tank4900kgHydraulic station sizeL:3200*W:1500*H:2800mm
Tank volume7m3Total weight of hydraulic station5800kg
Low pressure pump motor22KW*2 pcsHigh-pressure pump motor5.6KW*1 pcs
Elevatormotor2.2KW*1 pcsWhole machine total power(kw)51.8KW
height of workshop6500mmDepth of foundation pit4300mm
Total weight75T




JDRY-800T-30L-ZBJ

Product dimensions(mm)4*8尺:1220*2440mm 1pcs

Open-seat

70mm

Story number30层

Ram& Cylinder(Frames Up)

p160*3550mm*2 pcs

Working stroke(mm)3400mm

Lifting speed

15m/min

Overall dimensions(mm)L:4220*W:2020*H:9000mmDrive into the boardDouble hydraulic motor
Total weight(T)9.8T





JDRY-800T-30L-XBJ

Product dimensions(mm)4*8尺: 1220*2440mm 1pcs

Open-seat

70mm

Story number40层

Ram& Cylinder(Frames Up)

$140*4000mm*2 pcs

Working stroke(mm)3850mm

Lifting speed

15m/min

Overall dimensions(mm)L:4220*W:1015*H:10020mmDrive into the boardDouble hydraulic motor
Total weight(T)7.4T




Continuous product improvement, when the appearance and parameters of change,are subject to real sample, witnout notice.
