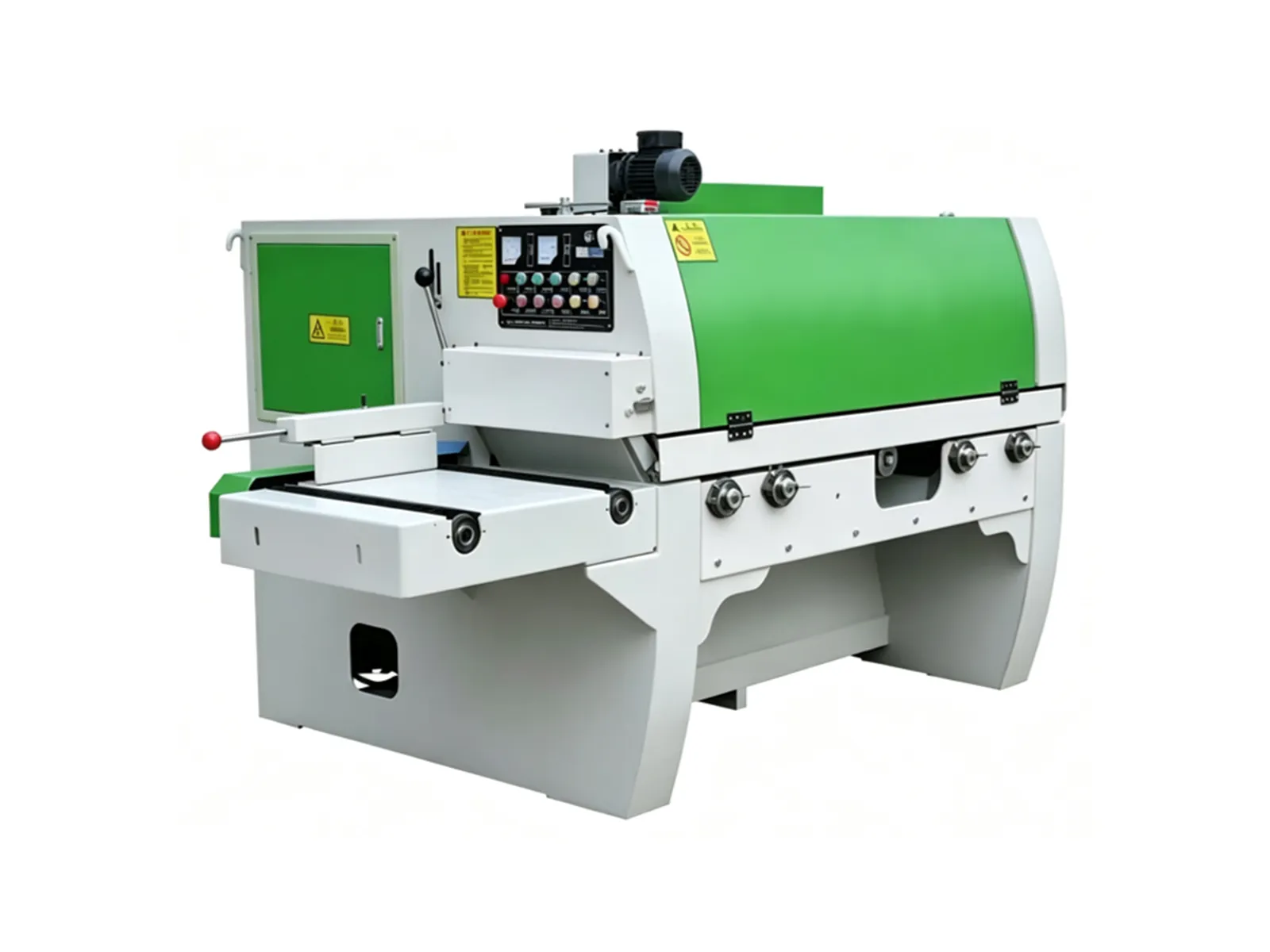

Heavy duty square wood multi blade saw

1.Square timber, multiple boards in one pass, multiplied efficiency.

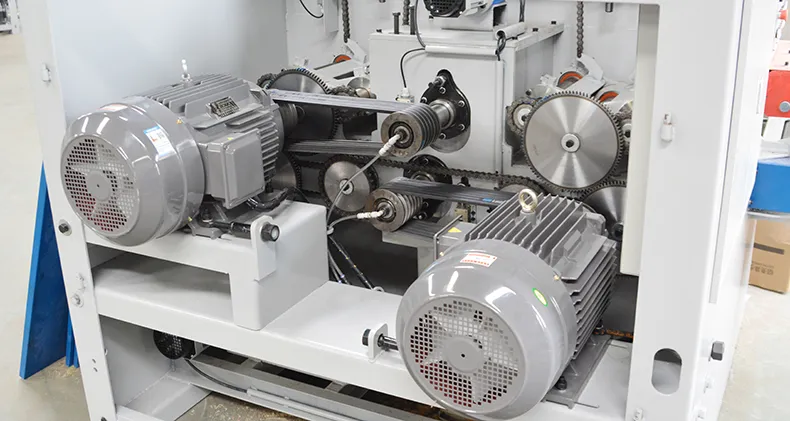

2.Reinforced frame, high-power motor, stable cutting of hard timbers.
3.Narrow kerf, high yield.
4.Adjustable blade spacing, uniform thickness, smooth surfaces.

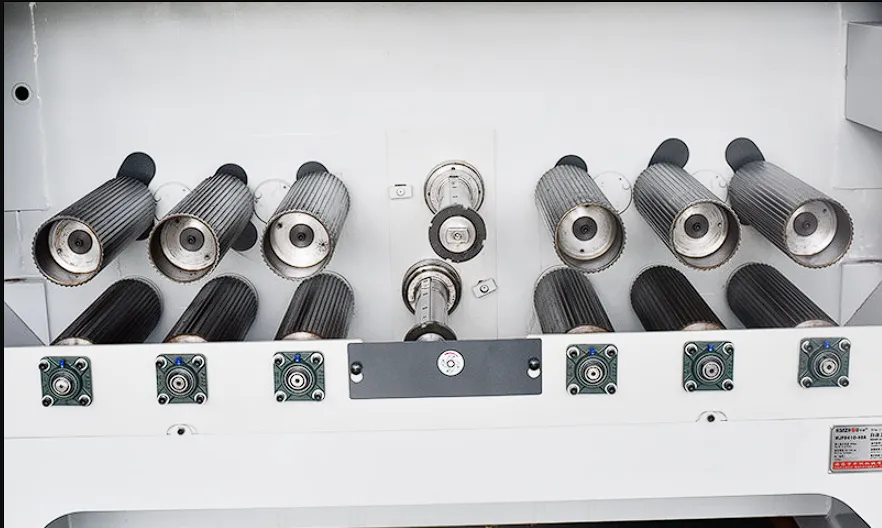

5.Auto feeding with hydraulic pressing, one operator, safe.

Share：

Contact us Inquiry

Detailed Description

Detailed Description

Product Parameters
Equipment Model DPJ-FM8×N DPJ-FM10×N DPJ-FM12×N DPJ-FM14×N DPJ-FM17×N DPJ-FM20×N DPJ-FM22×N DPJ-FM25×N
Processing length >1000 MM >1000 MM >1000 MM >1000 MM >1000 MM >1000 MM >1000 MM >1000 MM
Weight 2.1/2.1/2.5/2.7 t 2.2/2.3/2.7/2.9 t 2.3/2.4/2.7/2.9 t 2.4/2.5/2.5/3.1 t 3.5 t 3.55 t 3.7 t 4.1 t
Overall dimensions 4.5×2.3×1.8 m 4.5×2.3×1.8 m 4.5×2.3×1.8 m 4.5×2.3×1.8 m 4.5×2.3×1.8 m 4.5×2.3×1.8 m 4.5×2.3×1.8 m 4.5×2.3×1.8 m
Minimum machining thickness 80 mm 100 mm 120 mm 140 mm 170 mm 200 mm 220 mm 250 mm
Effective processing width colspan="8" 300 / 350 / 400 / 500 mm (Corresponding device model N)

Feed speed colspan="8" 0 - 10 m/min (Variable-frequency adjustable)

Saw blade specifications (mm) 210/210/210/230 230/230/230/255 255/255/255/280 280/280/280/305 305/305/305/320 320/320/320/355 355/355/355/380 405/405/405/455
Total power (kw) 45/45/55/61 45/45/55/61 55/55/58/75 61/75/75/91 75/75/91/91 75/75/91/91 91/91/111/111 91/91/111/111

Related tags：

Previous page： Large-diameter Multi-blade Saw Production Line

Next page： Large-diameter Log Multi-blade Saw

Equipment Model	DPJ-FM8×N	DPJ-FM10×N	DPJ-FM12×N	DPJ-FM14×N	DPJ-FM17×N	DPJ-FM20×N	DPJ-FM22×N	DPJ-FM25×N
Processing length	>1000 MM	>1000 MM	>1000 MM	>1000 MM	>1000 MM	>1000 MM	>1000 MM	>1000 MM
Weight	2.1/2.1/2.5/2.7 t	2.2/2.3/2.7/2.9 t	2.3/2.4/2.7/2.9 t	2.4/2.5/2.5/3.1 t	3.5 t	3.55 t	3.7 t	4.1 t
Overall dimensions	4.5×2.3×1.8 m	4.5×2.3×1.8 m	4.5×2.3×1.8 m	4.5×2.3×1.8 m	4.5×2.3×1.8 m	4.5×2.3×1.8 m	4.5×2.3×1.8 m	4.5×2.3×1.8 m
Minimum machining thickness	80 mm	100 mm	120 mm	140 mm	170 mm	200 mm	220 mm	250 mm
Effective processing width	colspan="8"	300 / 350 / 400 / 500 mm (Corresponding device model N)
Feed speed	colspan="8"	0 - 10 m/min (Variable-frequency adjustable)
Saw blade specifications (mm)	210/210/210/230	230/230/230/255	255/255/255/280	280/280/280/305	305/305/305/320	320/320/320/355	355/355/355/380	405/405/405/455
Total power (kw)	45/45/55/61	45/45/55/61	55/55/58/75	61/75/75/91	75/75/91/91	75/75/91/91	91/91/111/111	91/91/111/111
