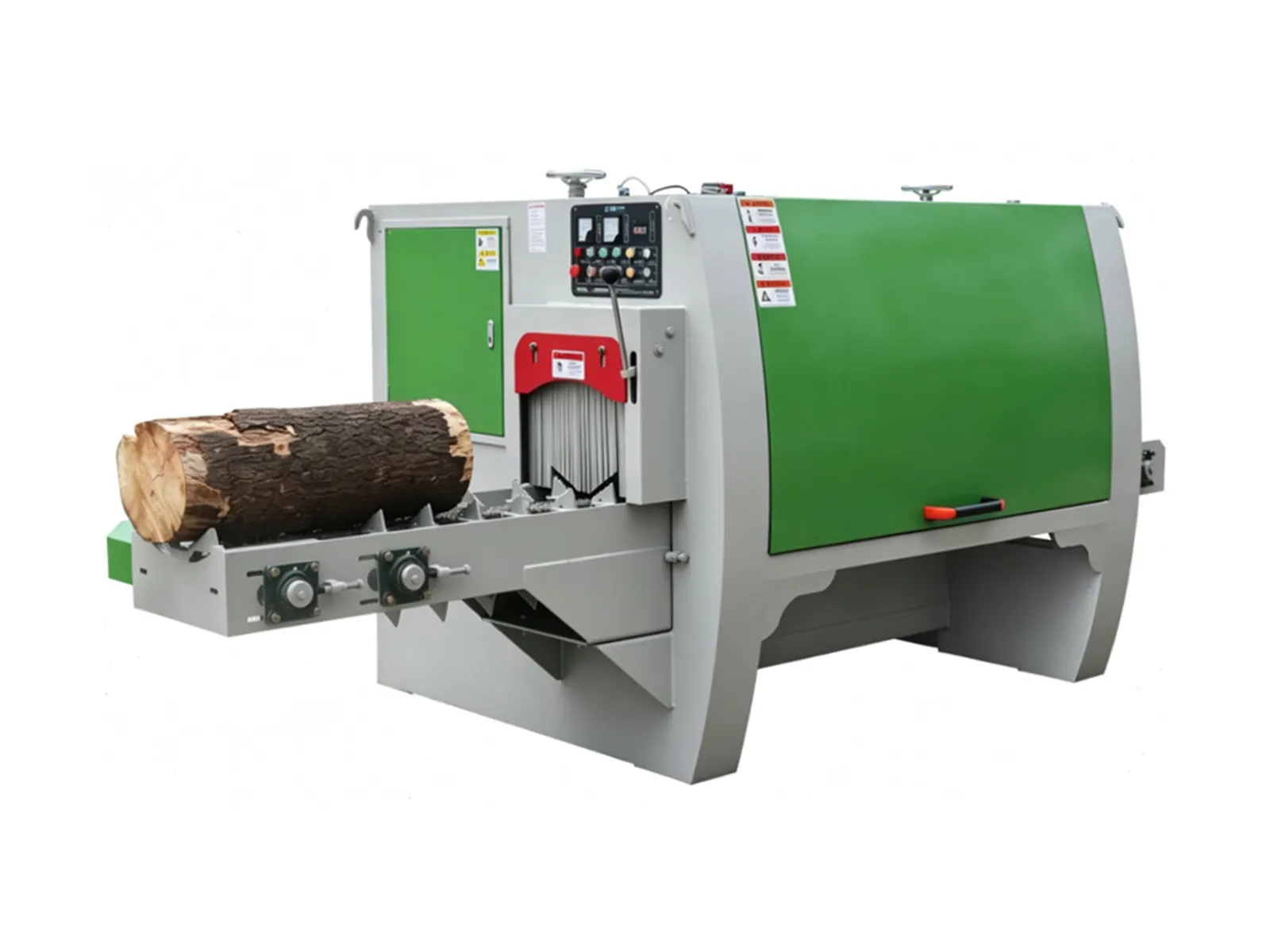

Large-diameter Log Multi-blade Saw

1.Φ300 mm+ logs cut into several large boards in one pass.
2.Reinforced frame and spindle, stable under heavy cutting.
3.Multiple boards at once, narrow kerf, high yield.
4.High-power motor handles hard and large logs.
5.Auto feeding with guards, one operator.

Share：

Contact us Inquiry

Detailed Description

Detailed Description

Product Parameters
Equipment Model DPJ-YM15-30 DPJ-YM15-35 DPJ-YM20-40 DPJ-YM20-25 DPJ-YM30-50
Processing length >1000 MM >1000 MM >1000 MM >1500 MM >1500 MM
Weight 2600 kg 3000 kg 3700 kg 4500 kg 5300 kg
Overall dimensions 4.5×1.7×1.7 m 4.5×1.7×1.7 m 4.8×2.7×1.9 m 4.8×2.7×1.9 m 4.8×2.7×2 m
Minimum diameter Ø15 cm Ø15 cm Ø20 cm Ø25 cm Ø30 cm
Maximum diameter Ø30 cm Ø35 cm Ø40 cm Ø45 cm Ø50 cm
Feed speed 0 – 10 m/min (Variable-frequency adjustable) 0 – 10 m/min (Variable-frequency adjustable) 0 – 10 m/min (Variable-frequency adjustable) 0 – 8 m/min (Variable-frequency adjustable) 0 – 8 m/min (Variable-frequency adjustable)
Saw blade specifications 420 mm 480 mm 550 mm 650 mm 700 mm
Total power 30 kw + 37 kw 37 kw + 45 kw 45 kw + 55 kw 55 kw + 75 kw 75 kw + 75 kw

Related tags：

Previous page： Heavy duty square wood multi blade saw

Next page： Multi-blade saw for small and medium-diameter logs

Equipment Model	DPJ-YM15-30	DPJ-YM15-35	DPJ-YM20-40	DPJ-YM20-25	DPJ-YM30-50
Processing length	>1000 MM	>1000 MM	>1000 MM	>1500 MM	>1500 MM
Weight	2600 kg	3000 kg	3700 kg	4500 kg	5300 kg
Overall dimensions	4.5×1.7×1.7 m	4.5×1.7×1.7 m	4.8×2.7×1.9 m	4.8×2.7×1.9 m	4.8×2.7×2 m
Minimum diameter	Ø15 cm	Ø15 cm	Ø20 cm	Ø25 cm	Ø30 cm
Maximum diameter	Ø30 cm	Ø35 cm	Ø40 cm	Ø45 cm	Ø50 cm
Feed speed	0 – 10 m/min (Variable-frequency adjustable)	0 – 10 m/min (Variable-frequency adjustable)	0 – 10 m/min (Variable-frequency adjustable)	0 – 8 m/min (Variable-frequency adjustable)	0 – 8 m/min (Variable-frequency adjustable)
Saw blade specifications	420 mm	480 mm	550 mm	650 mm	700 mm
Total power	30 kw + 37 kw	37 kw + 45 kw	45 kw + 55 kw	55 kw + 75 kw	75 kw + 75 kw
