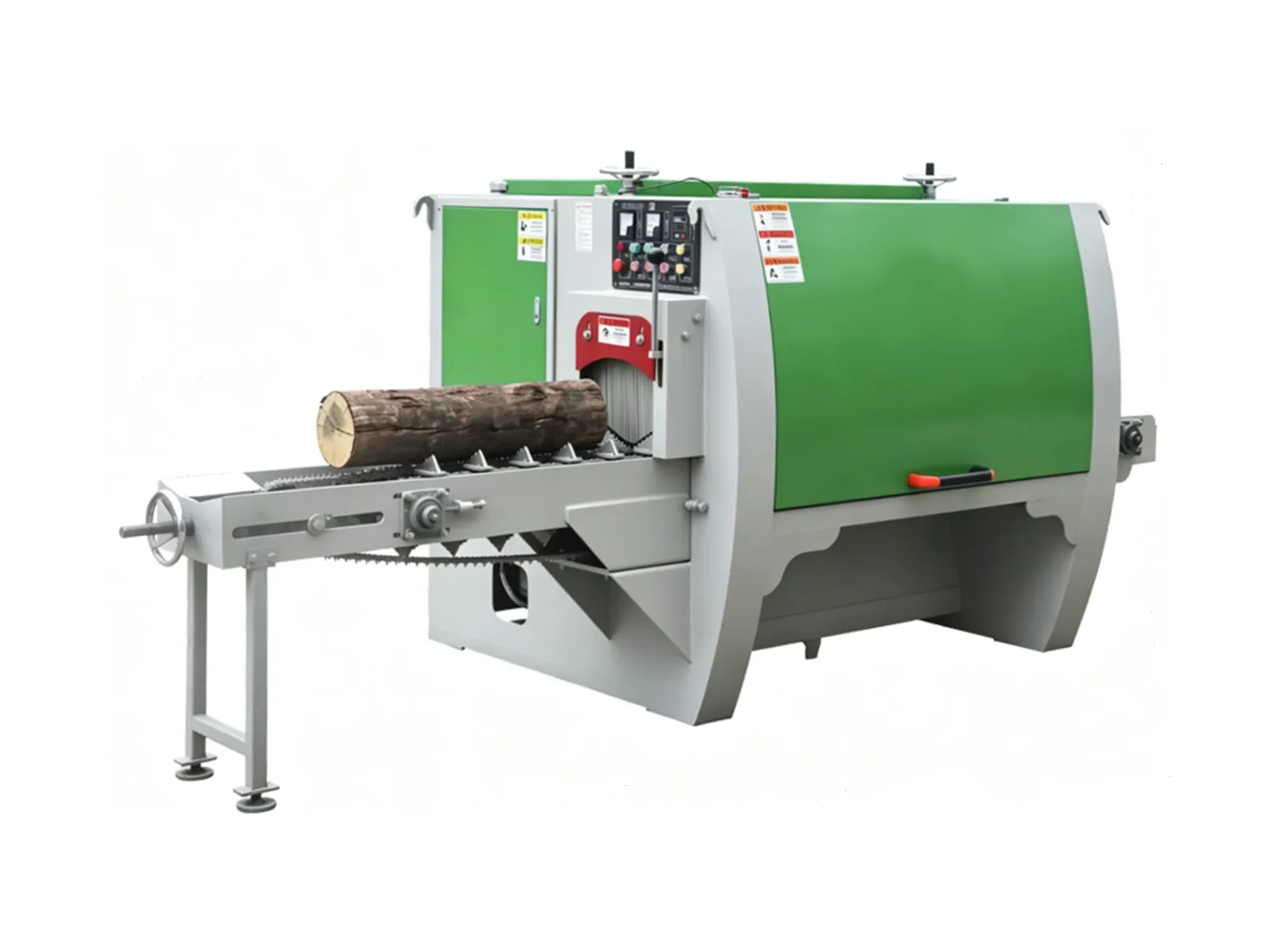

Multi-blade saw for small and medium-diameter logs

1.Multiple boards in one pass, several times more efficient than band saws.
2.Thin blades, narrow kerf, up to 85%+ yield.
3.Auto feeding and centering, safe and labor-saving.
4.Adjustable blade spacing, smooth surfaces, no re-machining.
5.For small and medium logs (12–26 cm), one operator.

Share：

Contact us Inquiry

Detailed Description

Detailed Description

Product Parameters
Equipment Model DPJ-YM3-12 DPJ-YM3-14 DPJ-YM6-16 DPJ-YM8-18 DPJ-YM8-20 DPJ-YM10-22 DPJ-YM10-24 DPJ-YM10-26
Processing length >300 MM >300 MM >300 MM >300 MM >400 MM >400 MM >800 MM >800 MM
Weight 1800 kg 1800 kg 1950 kg 2050 kg 2100 kg 2200 kg 2300 kg 2350 kg
Overall dimensions 4.1×1.6×1.6 m 4.1×1.6×1.6 m 4.1×1.6×1.6 m 4.1×1.6×1.6 m 4.1×1.7×1.7 m 4.1×1.7×1.7 m 4.1×1.7×1.7 m 4.1×1.7×1.7 m
Minimum diameter Ø3 cm Ø3 cm Ø6 cm Ø8 cm Ø8 cm Ø10 cm Ø10 cm Ø10 cm
Maximum diameter Ø12 cm Ø14 cm Ø16 cm Ø18 cm Ø20 cm Ø22 cm Ø24 cm Ø26 cm
Feed speed 0 – 15 m/min (Variable-frequency adjustable) 0 – 15 m/min (Variable-frequency adjustable) 0 – 15 m/min (Variable-frequency adjustable) 0 – 15 m/min (Variable-frequency adjustable) 0 – 12 m/min (Variable-frequency adjustable) 0 – 12 m/min (Variable-frequency adjustable) 0 – 12 m/min (Variable-frequency adjustable) 0 – 12 m/min (Variable-frequency adjustable)
Saw blade specifications 210 mm 230 mm 255 mm 280 mm 305 mm 320 mm 355 mm 380 mm
Total power 11 kw × 2 pcs 15 kw × 2 pcs 18.5 kw × 2 pcs 22 kw × 2 pcs 22 kw × 2 pcs 22 kw + 27 kw 27 kw × 2 pcs 27 kw + 30 kw
