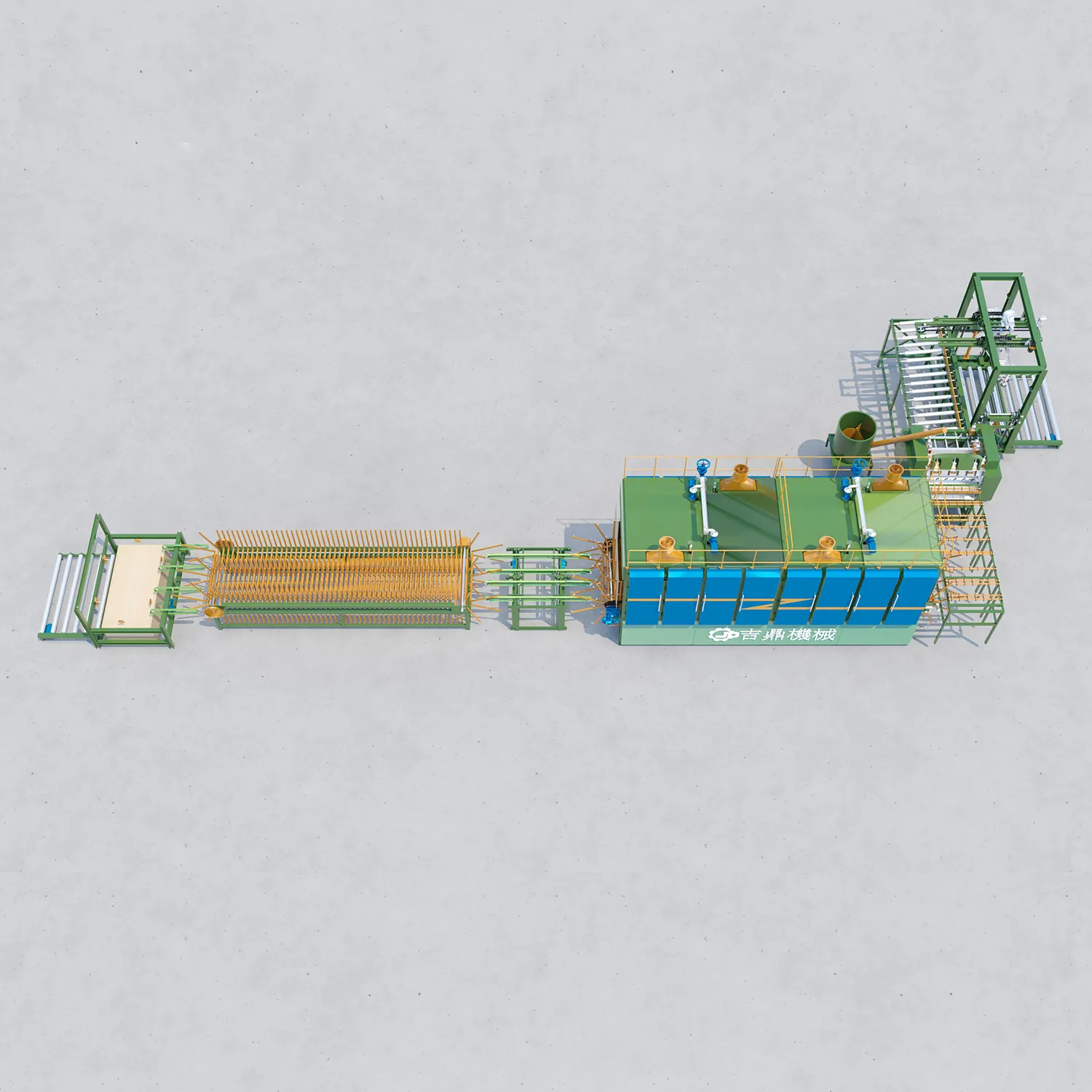

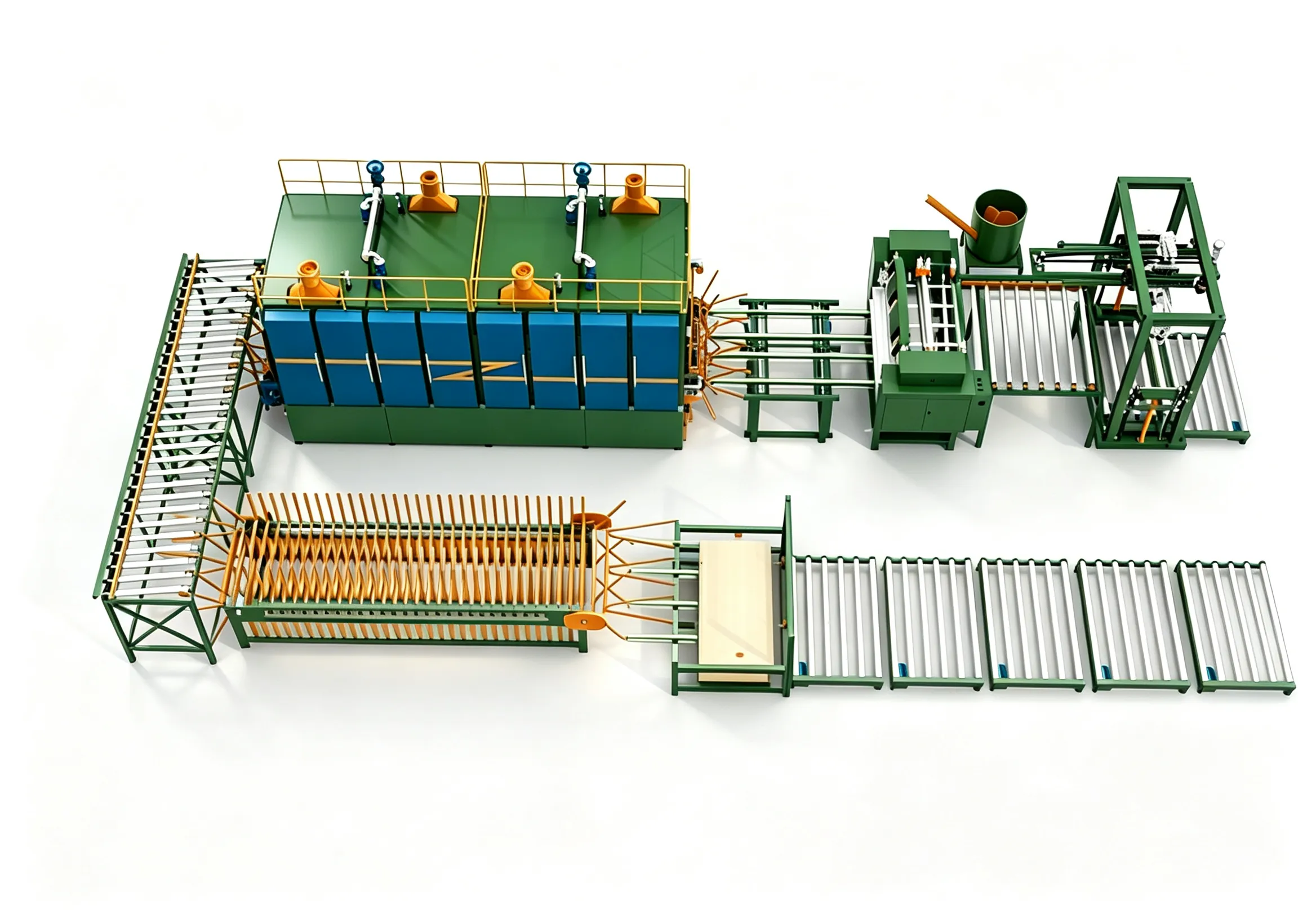

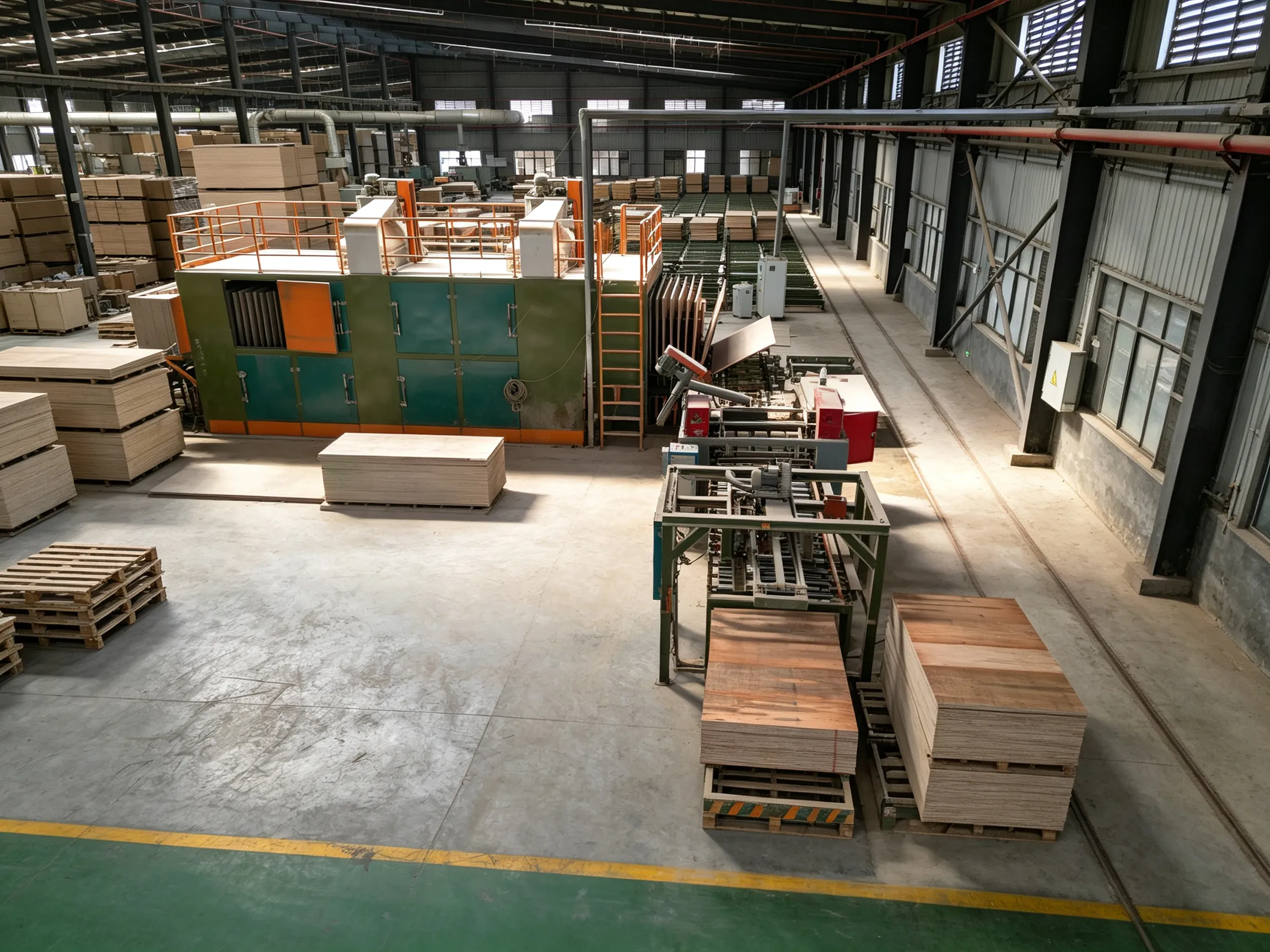

Fully automatic putty application and drying line

1.Automatic filling & joint repairing, constant temperature rapid drying
2.Fill board surface defects, continuous & efficient drying
3.Continuous line operation, firm adhesion of putty

Share：

Contact us Inquiry

Detailed Description

Detailed Description

Product Parameters
No. Parameter Item Specification
1 Equipment Model Vertical dryer machine
2 Model 4' × 8'
3 Story number 100
4 Heating model Steam/Thermal oil
5 Humidification fan 0.12kw × 4 pcs
6 Heating fan 0.75kw × 8 pcs
7 Conveyor motor 1.5kw
8 Negative pressure fan 1.5kw × 2 pcs
9 Drying capacity 400 pcs / h
10 Shutter speed 3.2 s / pcs
11 Out speed 7 s / pcs
12 Dring box dimensions L:2000×W:3200×H:3600mm
13 Cooldimensions L:1850×W:3200×H:3000mm
14 Drying box heat 50,000 kcal
15 Whole machine size L:12000×W:3200×H:3600mm
