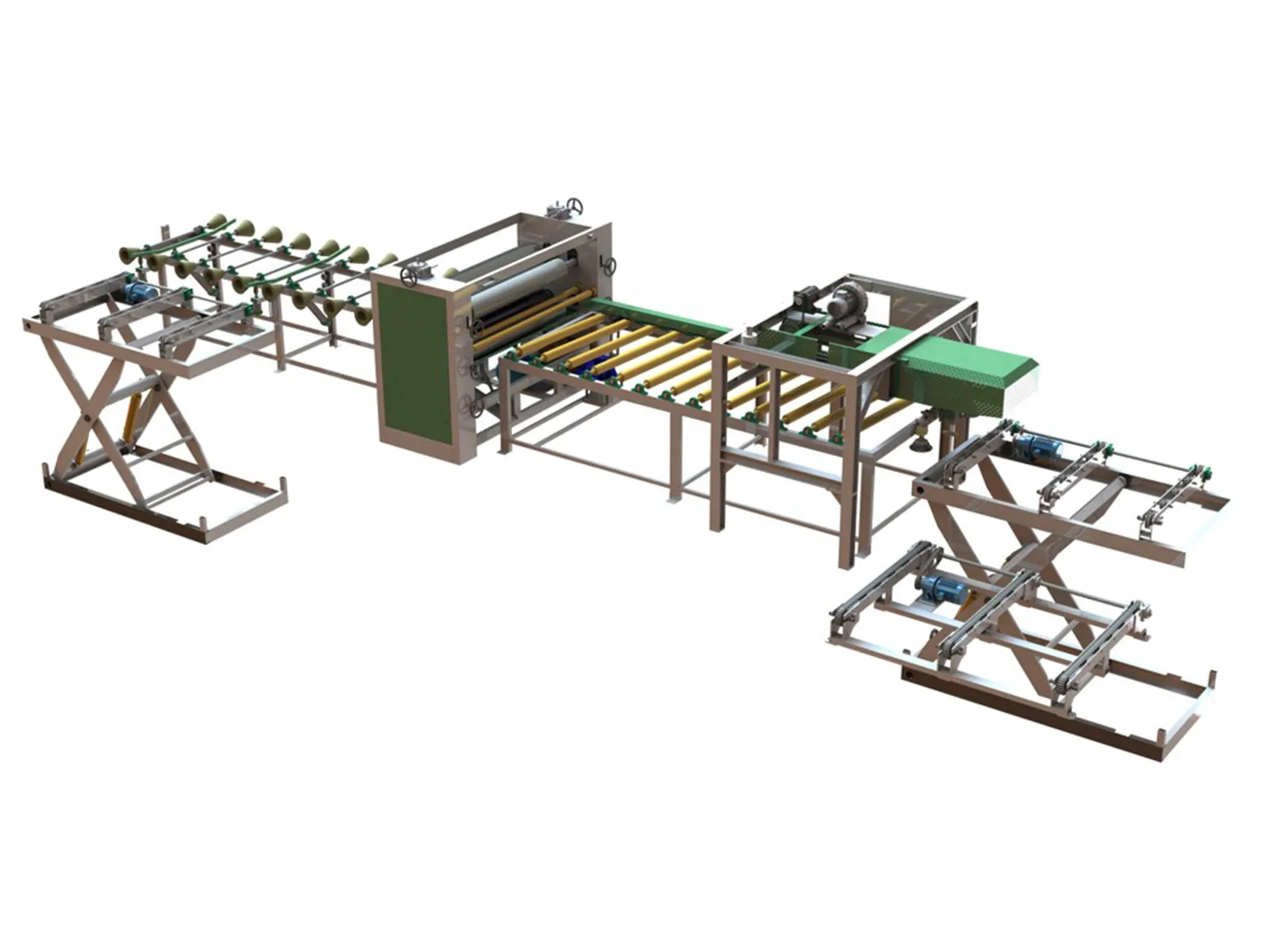

Panel Gluing and Lamination Production Line

    Panel Gluing and Lamination Production Line

      • 1.It is special automatic equipment for panel composite production.
        • 2.It automatically completes board dust removal, double-sided gluing, precise positioning and automatic board laying-up.
          • 3. It produces qualified board blanks for subsequent hot pressing, with stable operation and high precision, which greatly saves labor and improves production capacity.
    Inquiry

Detailed Description

Product Parameters

No.Parameter ItemSpecification
1Equipment ModelTMZP-48M
2Panel size1220×2440mm (Customization available)
3Panel thickness3 ~ 40 mm
4Conveying speed3 ~ 12 m/min, VFD adjustable
5Positioning accuracy≤±0.8 mm
6Glue spread rate80 ~ 180 g/㎡ adjustable, for water-based glue / UF glue
7Control systemPLC + Touch Screen, full line synchronous linkage
8Power supply380V/50Hz
9Installed powerapprox. 28 ~ 36 kW
10Air source0.5 ~ 0.7 MPa
11Production capacity40 ~ 70 pcs/h
12Applicable panelsMDF, Particleboard, Plywood, Solid wood core board
