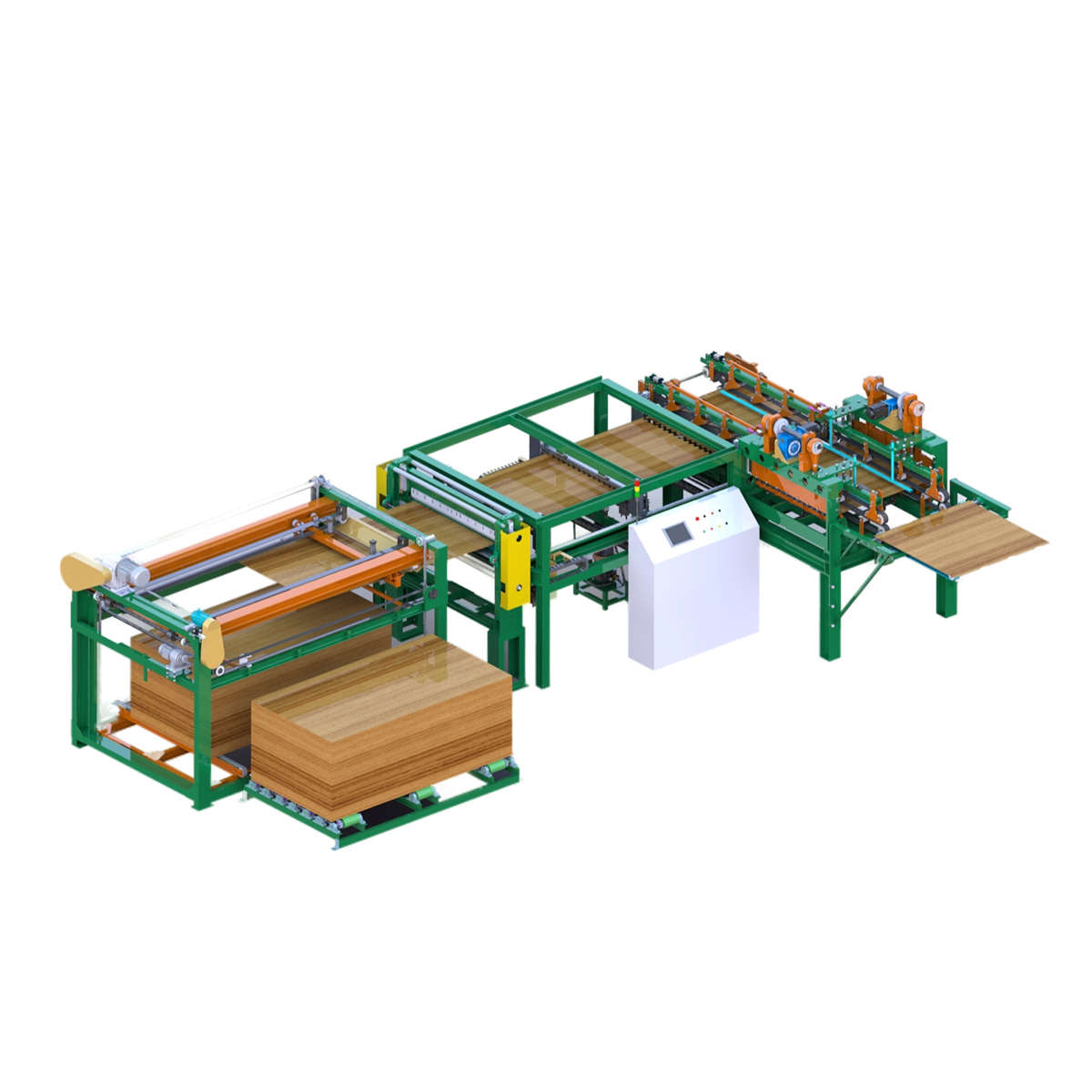

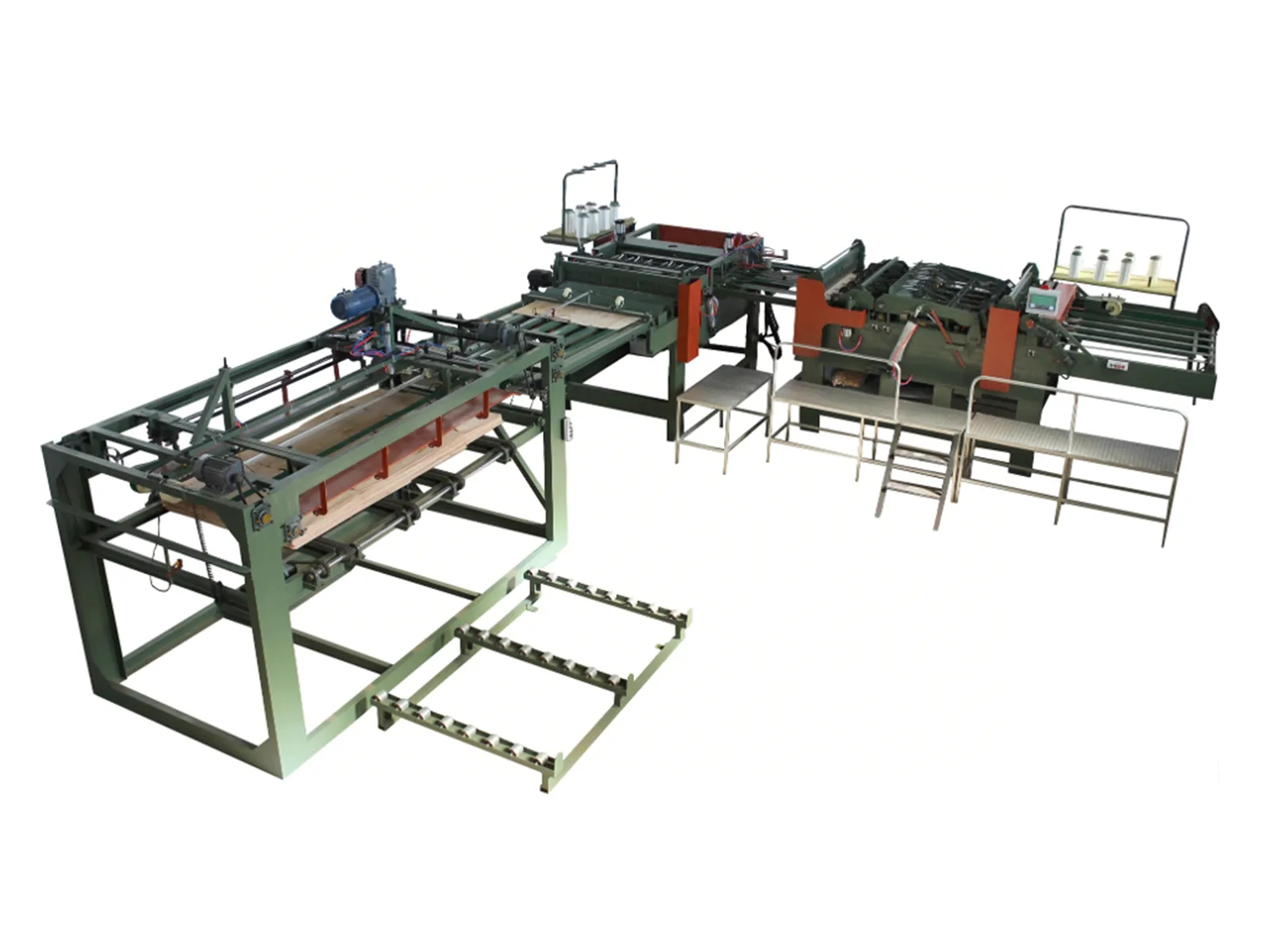

LXZP-2500A Fully Automatic Continuous Finger Jointing Workstation

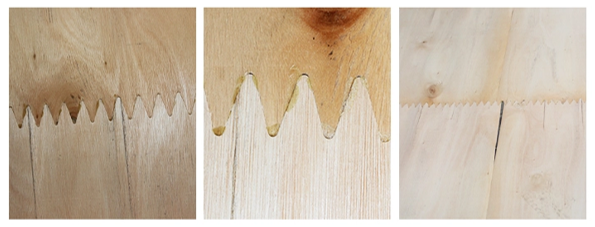

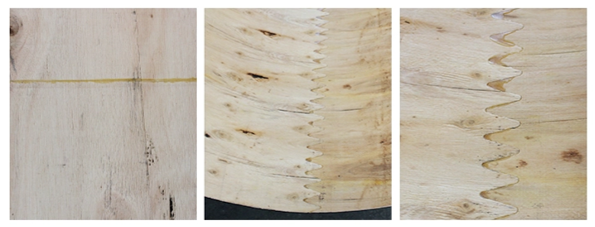

·Tight finger joints prevent board cracking
·Stable feeding avoids wood bending
·Sturdy frame for long high-speed running
·Precise servo control ensures tiny size errors

Share：

Contact us Inquiry

Detailed Description

Detailed Description

Equipment Introduction
A veneer finger jointer is an efficient woodworking machine used to longitudinally splice short-sized veneers (especially the core veneers in plywood production) via finger tenon-and-mortise structures to manufacture large-format wood-based panels.

Product Parameters
No. Parameter Item Specification
1 Equipment Model Fully Automatic Continuous Finger Jointing Workstation
2 Main Color Green
3 Floor Area L 13m × W 11.5m × H 2.3m
4 Total Power 55.7KW
5 Total Weight 6.4 t
6 Processing Width 970-1270MM
7 Processing Thickness 1.2mm-4.0mm
8 Cutting Precision ±1mm
9 Equipment Efficiency 300pcs/h (4 × 8 chi)
10 Plate Output Size 4 chi × 8 chi
11 Gas Consumption 1250L/min
12 Blade Length 1350mm
13 Feeding Speed 30-35m/min
14 Working Pressure 0.6-0.8Mpa, dry compressed air
15 Working Temperature Indoor, -10℃-40℃
16 Power Supply Three-phase 380V, 50Hz, voltage fluctuation ±5%
