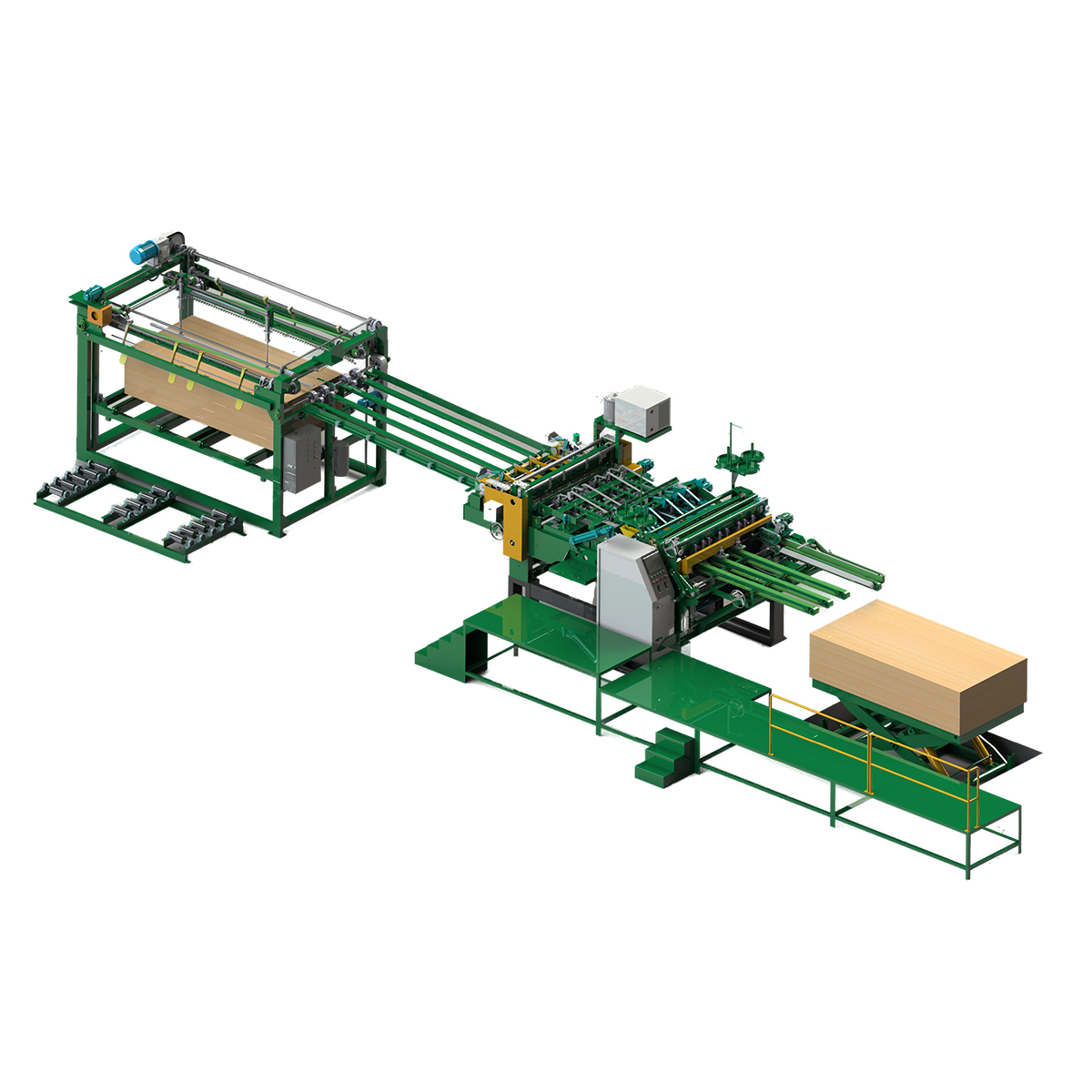

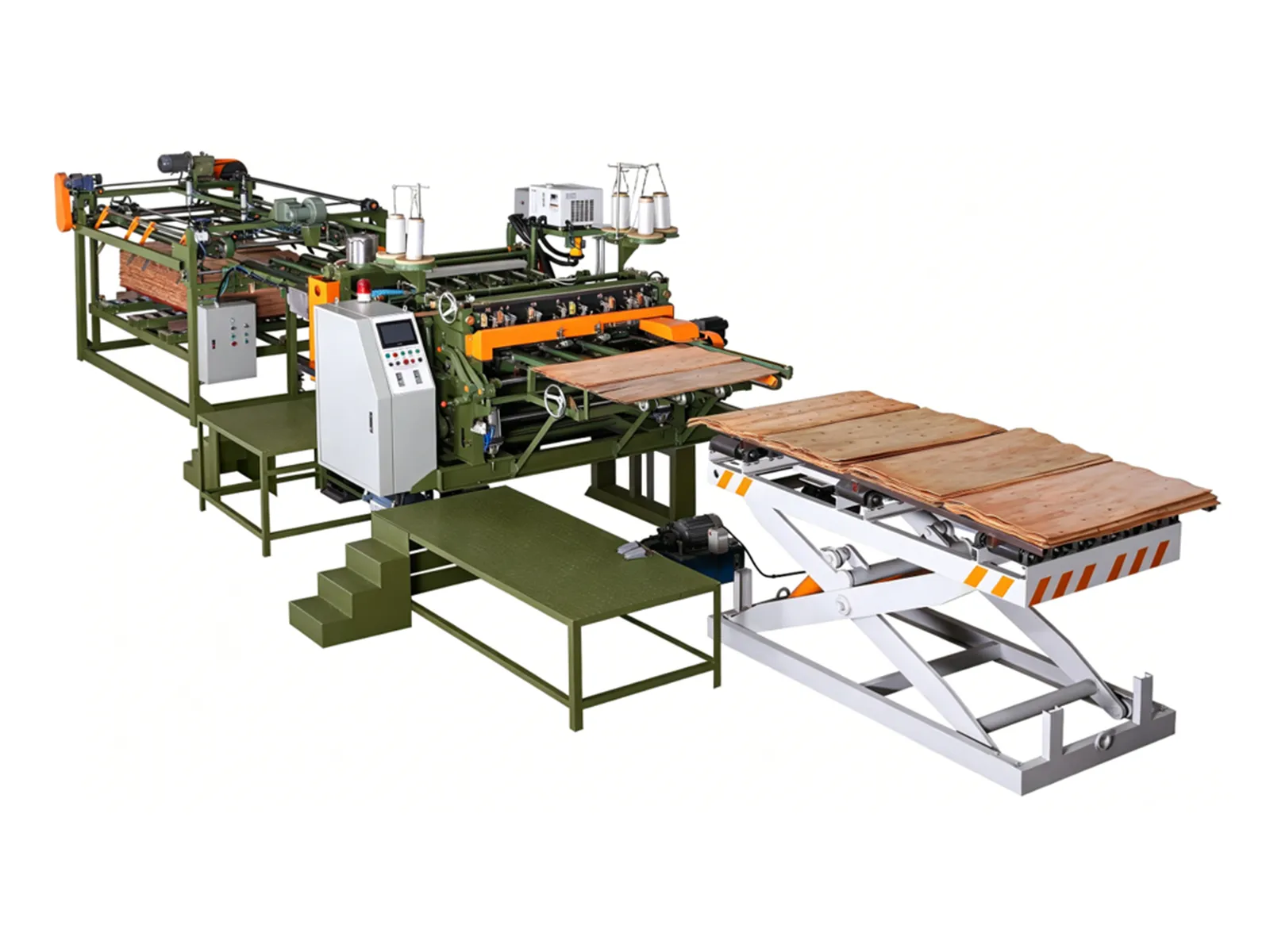

LXHP-1300A Fully Automatic Four-Foot Horizontal Splicing Machine

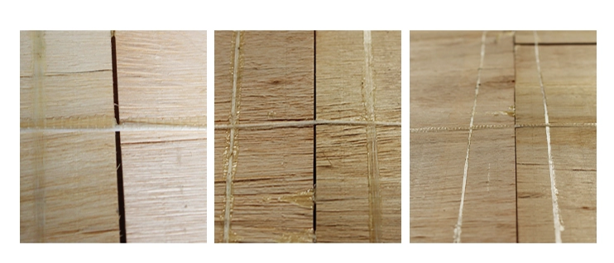

·Even tight joints deliver smooth, attractive panels
·Precise servo positioning keeps tiny machining tolerances
·Intuitive visual controls, easy for new operators

Share：

Contact us Inquiry

Detailed Description

右侧简介

Detailed Description

Equipment Introduction
Horizontal splicing station replaces manual veneer laying. It automatically splices uneven dried rotary-cut veneers into standard large sheets for slab assembly via feeding, thickness sorting, trimming, gluing, pressing, sizing and stacking. It supports single or unmanned operation to boost efficiency and splicing quality.

Product Parameters
No. Parameter Item Specification
1 Equipment Model Fully Automatic Four-Foot Horizontal Splicing Machine
2 Main Color Green
3 Floor Area L 14.6m × W 6.6m × H 2.3m
4 Total Power 23KW
5 Total Weight 5.5 t
6 Processing Width 970-1270MM
7 Processing Thickness 1.2mm-4.0mm
8 Cutting Precision ±1mm
9 Equipment Efficiency 350pcs/h (4 × 8 chi)
10 Plate Output Size 4 chi × 8 chi
11 Gas Consumption 330L/min
12 Blade Length 1350mm
13 Feeding Speed 30-35m/min
14 Working Pressure 0.6-0.8Mpa, dry compressed air
15 Working Temperature Indoor, -10℃-40℃
16 Power Supply Three-phase 380V, 50Hz, voltage fluctuation ±5%

Related tags：

Previous page： LXZP-2500A Fully Automatic Continuous Finger Jointing Workstation

Next page： None

No.	Parameter Item	Specification
1	Equipment Model	Fully Automatic Four-Foot Horizontal Splicing Machine
2	Main Color	Green
3	Floor Area	L 14.6m × W 6.6m × H 2.3m
4	Total Power	23KW
5	Total Weight	5.5 t
6	Processing Width	970-1270MM
7	Processing Thickness	1.2mm-4.0mm
8	Cutting Precision	±1mm
9	Equipment Efficiency	350pcs/h (4 × 8 chi)
10	Plate Output Size	4 chi × 8 chi
11	Gas Consumption	330L/min
12	Blade Length	1350mm
13	Feeding Speed	30-35m/min
14	Working Pressure	0.6-0.8Mpa, dry compressed air
15	Working Temperature	Indoor, -10℃-40℃
16	Power Supply	Three-phase 380V, 50Hz, voltage fluctuation ±5%
