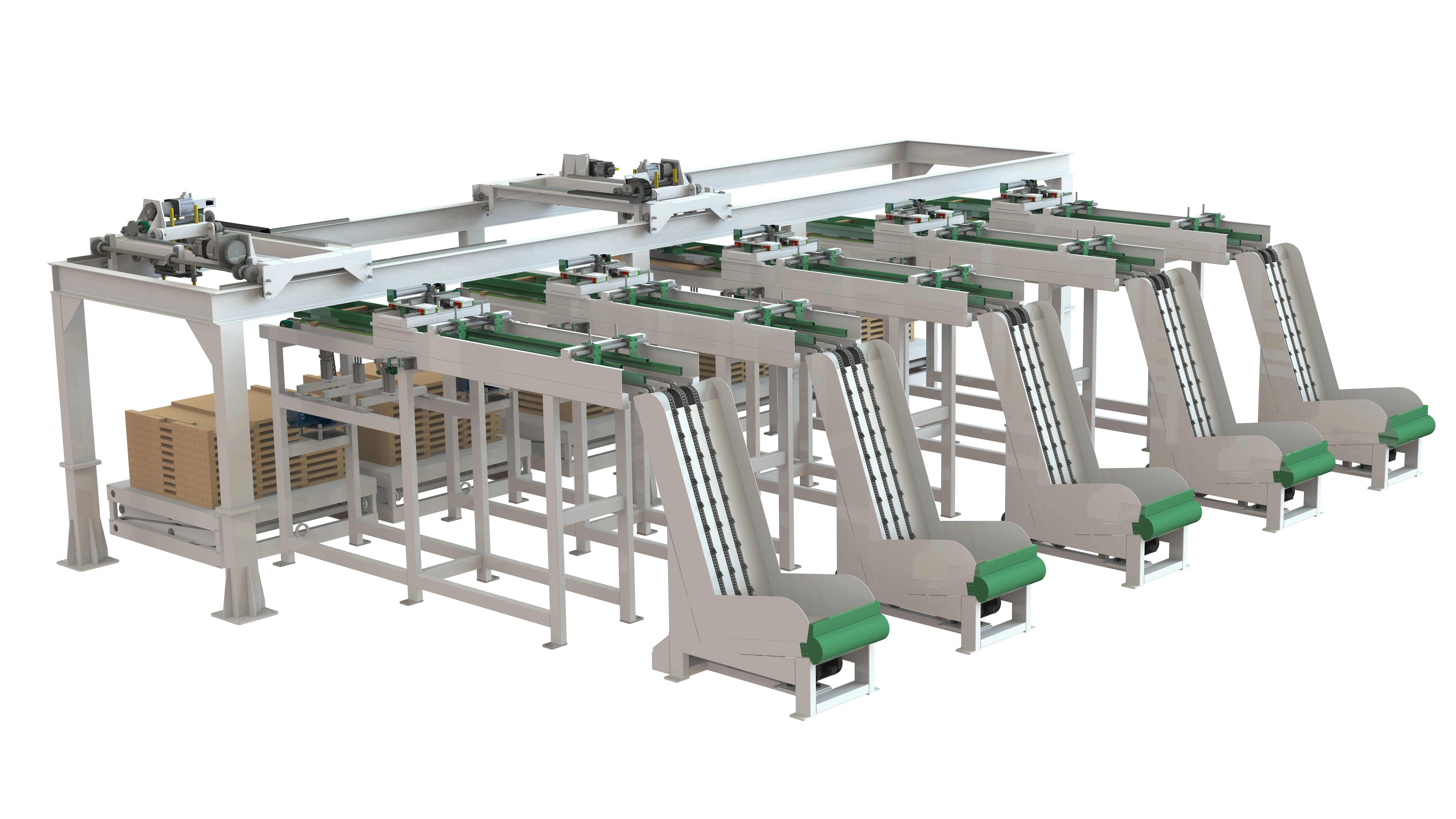

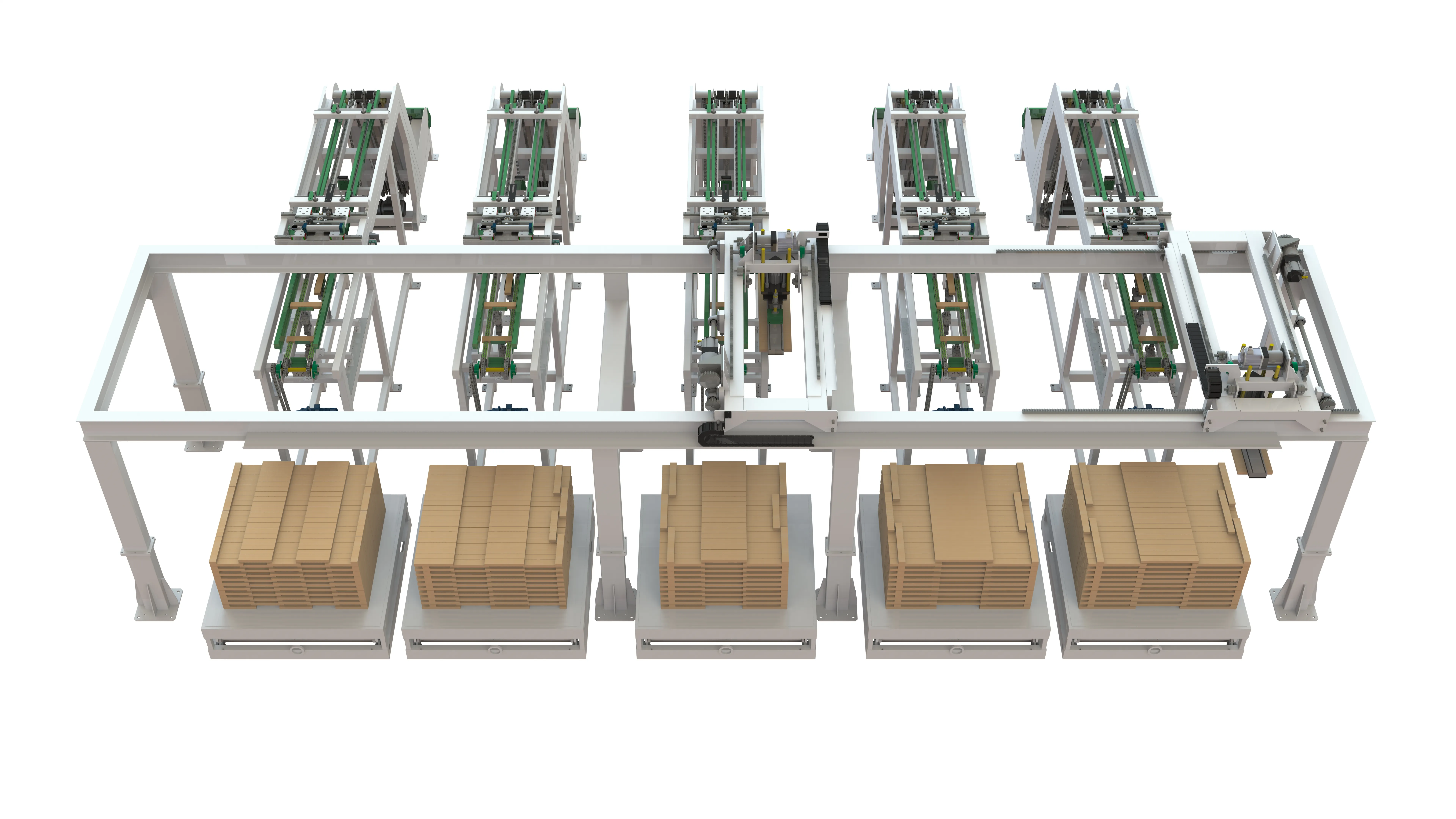

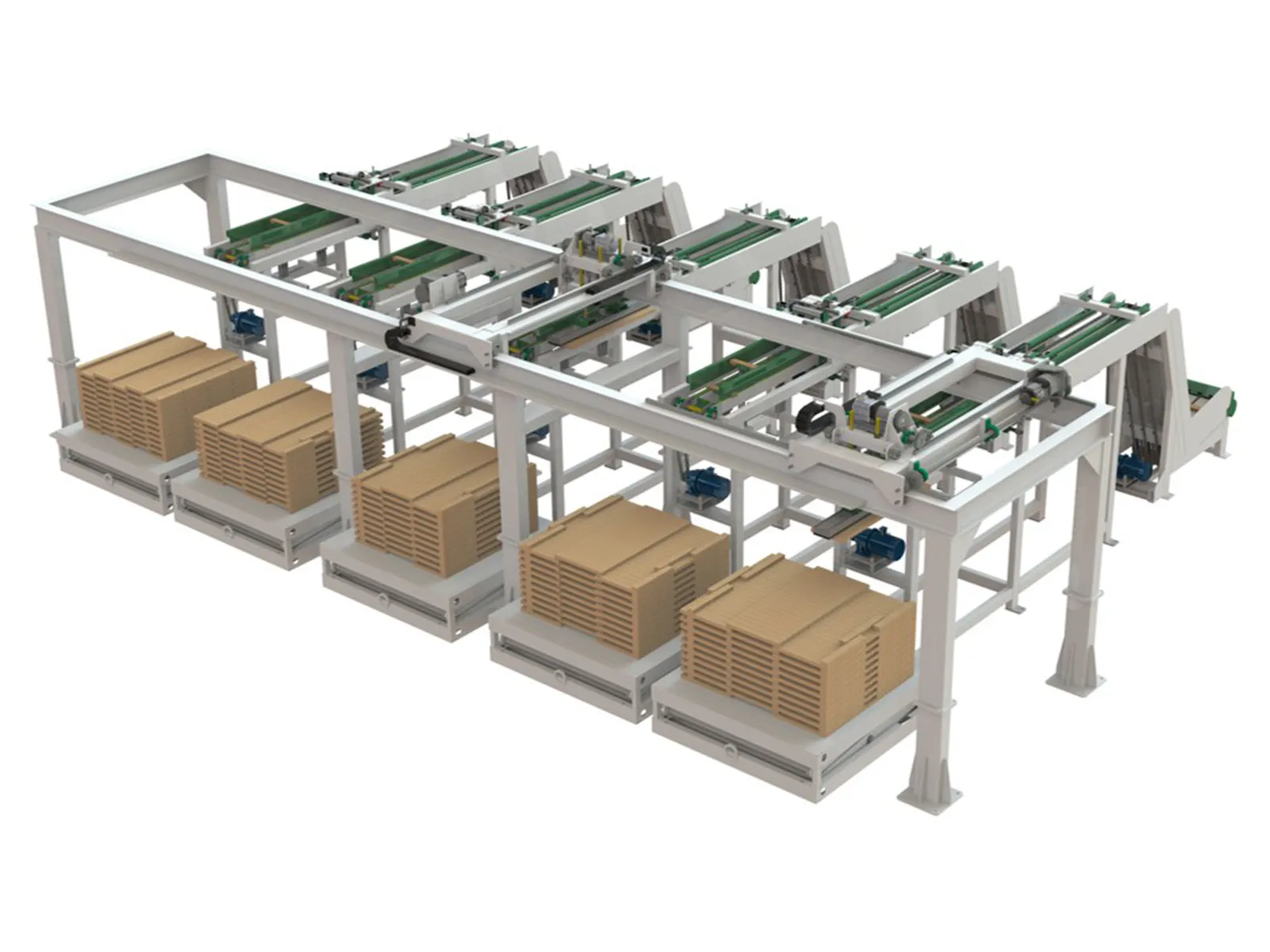

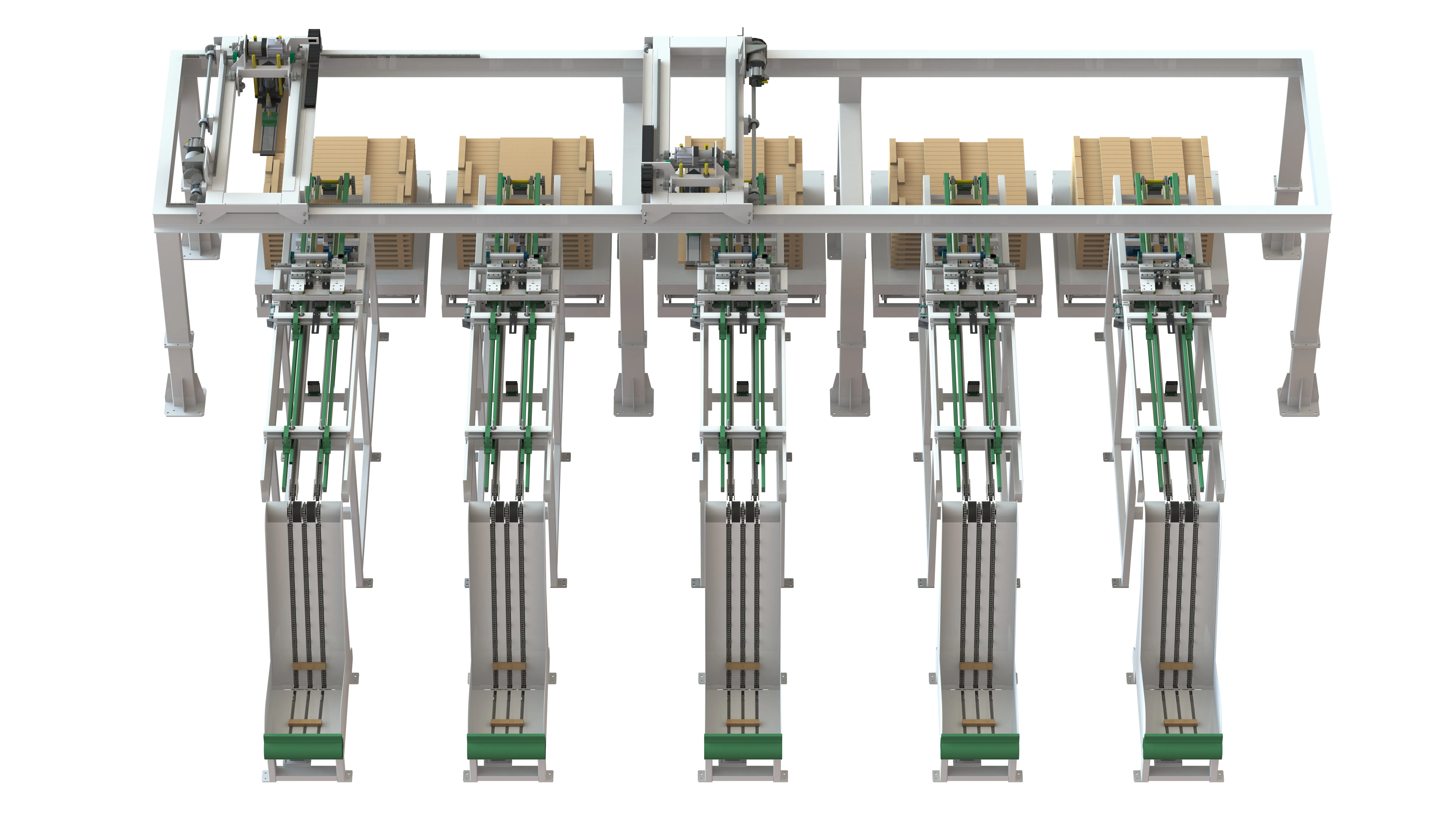

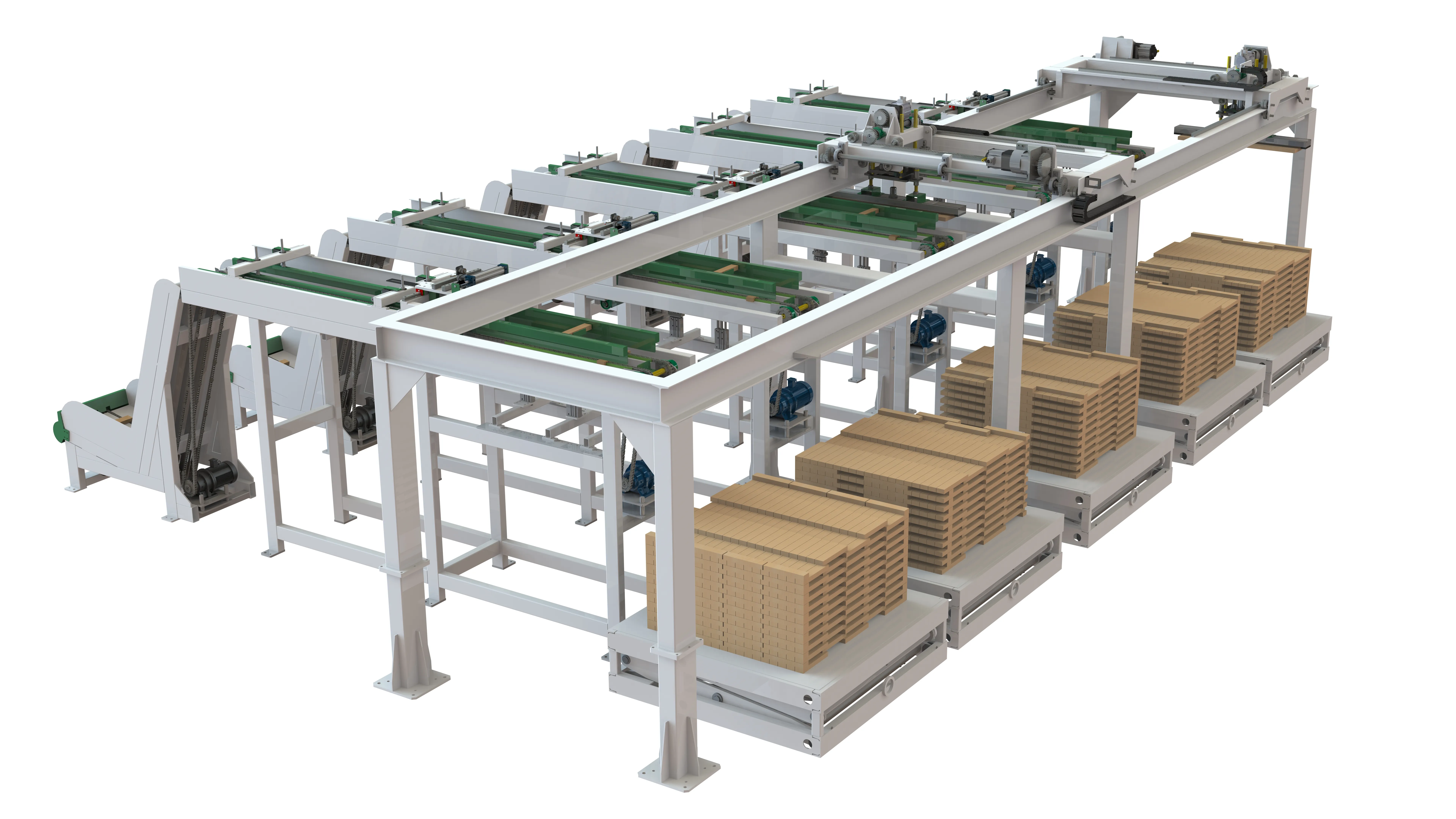

Five-channel Dual-arm Wood Board Palletizer

1.Various non‑standard palletizers can be customized.
2.Can be equipped with pit‑free lifting platform
3.Flexible operation, compatible palletizing for multiple specifications
4.Supports preset layers and spacer placement to meet process requirements

Share：

Contact us Inquiry

Detailed Description

Detailed Description

Product Parameters
Equipment Model MDF-280-420S
main color White + Green
total power 29.4 kw
size / L-W-H 7.2×10.8×2.8 m
Total Weight about 6700 kg
processing width 60 mm (Special customization)
processing thickness 30/60 mm (Special customization)
processing length 280 - 420 mm (Special customization)
Palletized finished product specifications Max. 1100 × 1300 mm
Palletizing method One core board and one spacer, adjustable according to requirements
Palletizing speed 23 s/layer or 48 s/layer
Equipment efficiency about 1.5-2.3 stacks per hour
Traverse motor power 1.5 kw servo motor
Rotating electrical machine power 1.5 kw servo motor
Feeding motor power 1.1 kw × 5 pcs
Suction fan power 4 kw × 2 pcs
Working Pressure 0.6-0.8 Mpa, dry compressed air
Working Temperature Indoor, -10℃~40℃
Power Supply 3-phase 380V, 50Hz, voltage fluctuation ±5%
