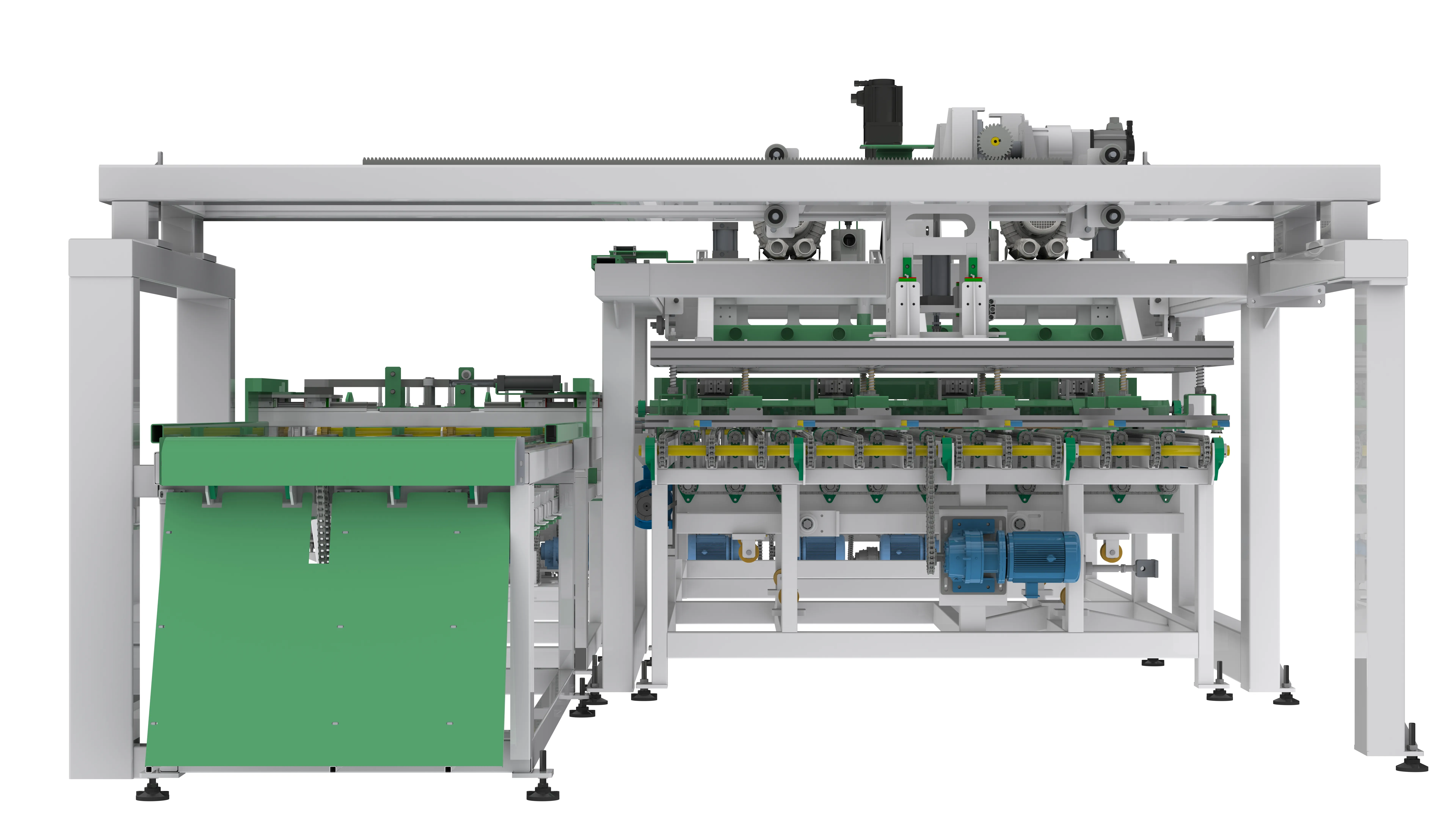

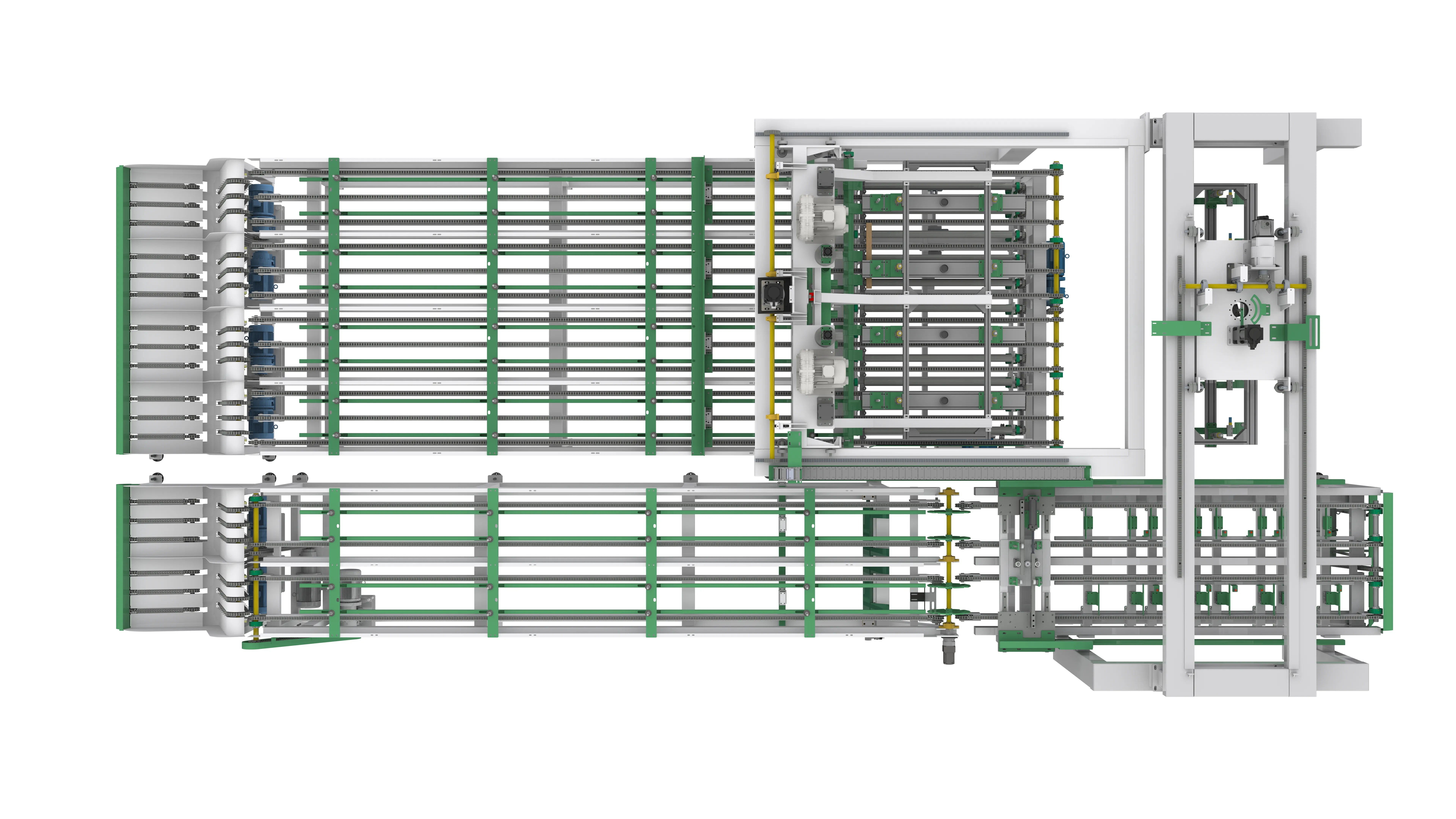

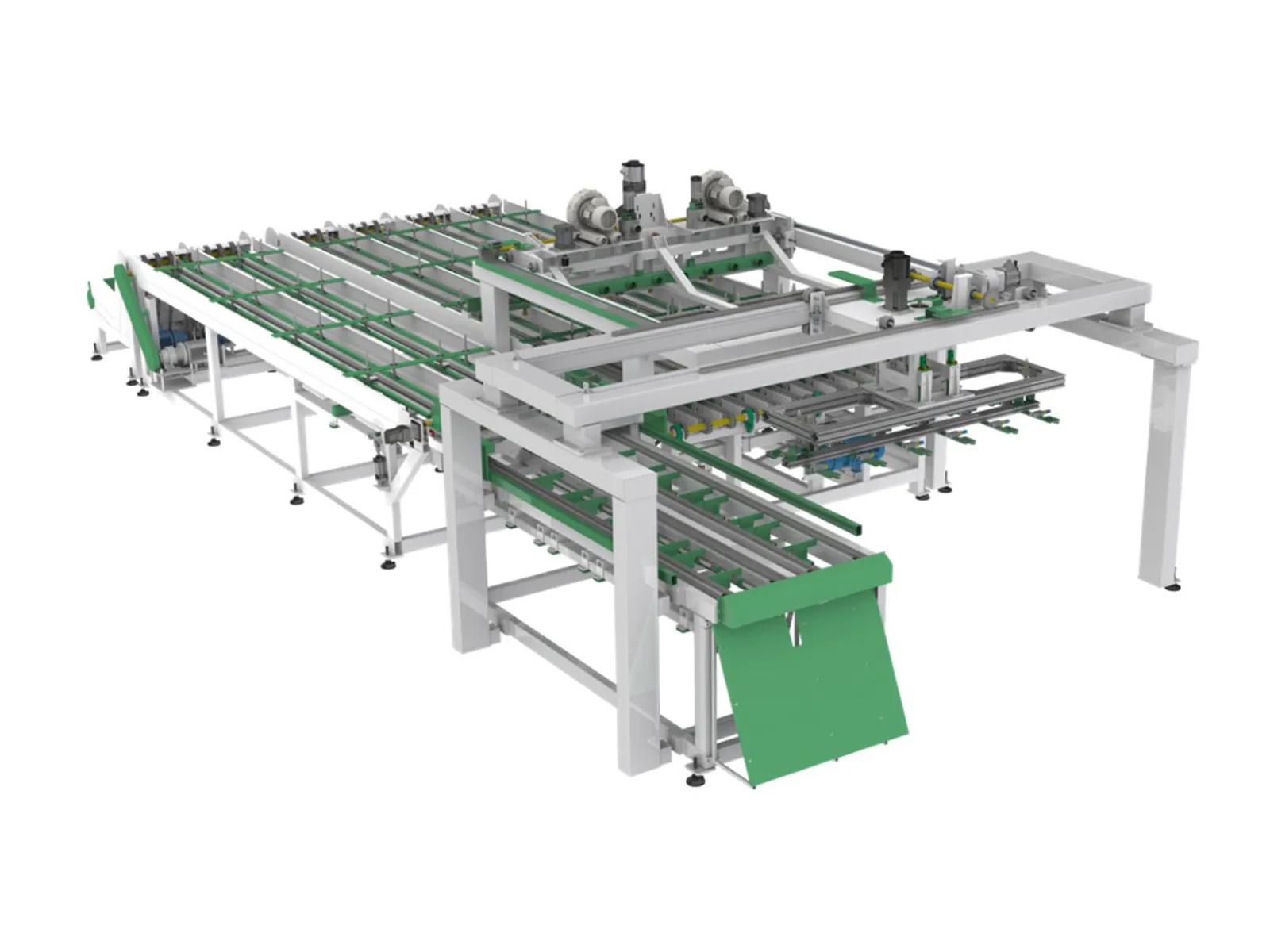

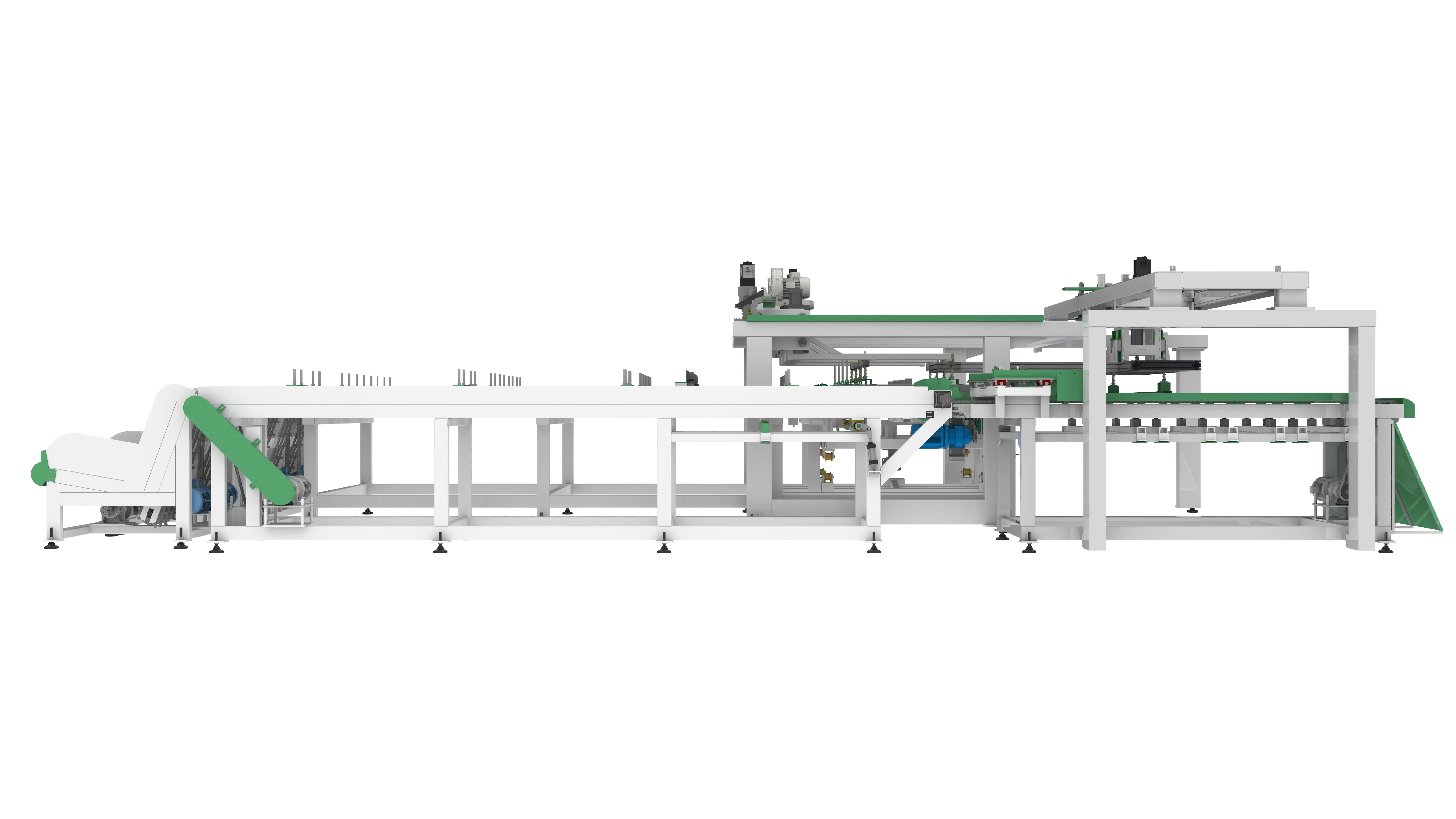

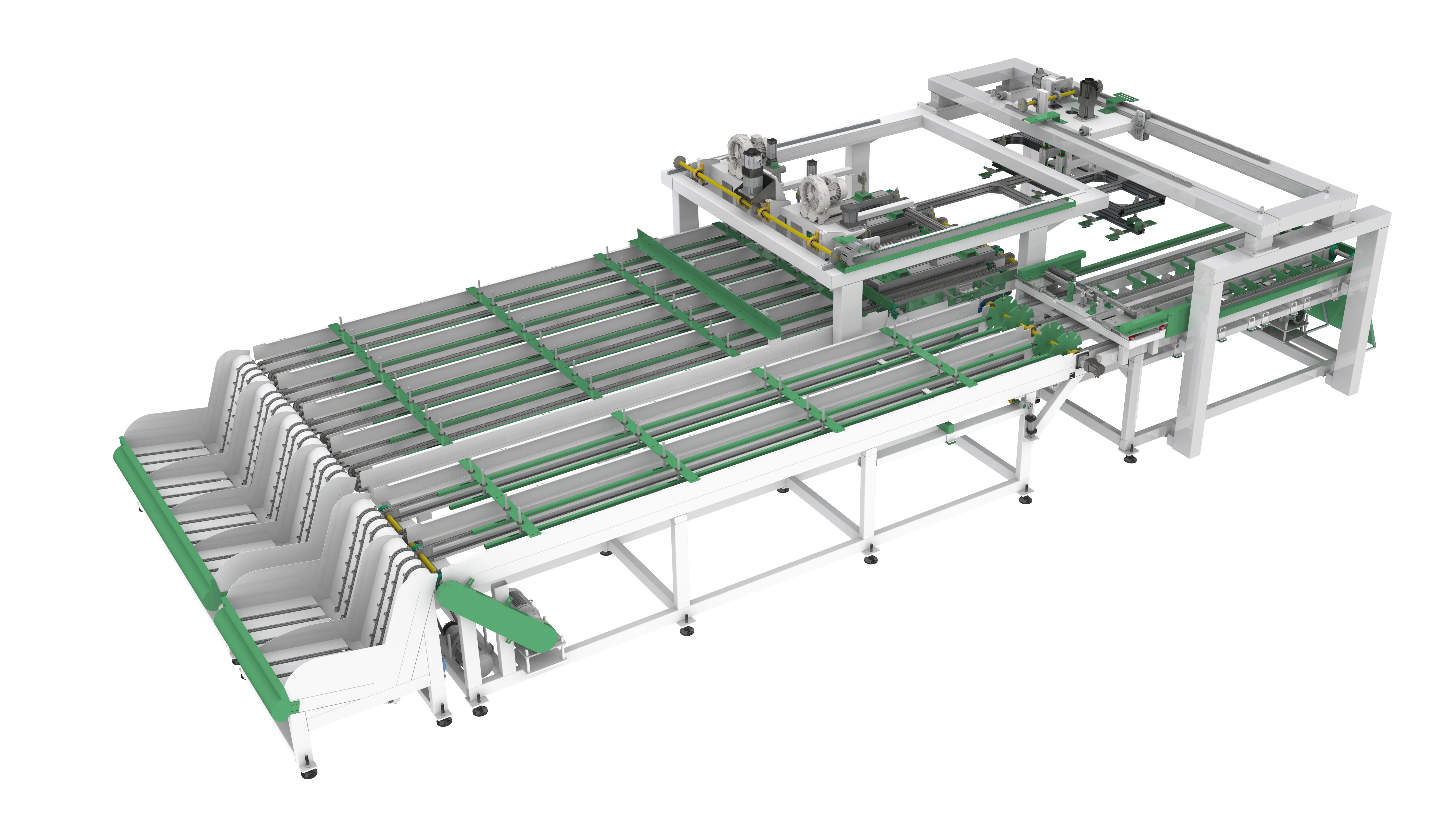

Six-Channel Wood Board Palletizer

1.Six channels, high capacity, multiplied output.

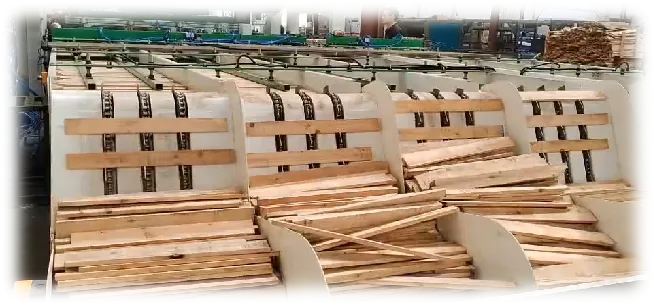

2.Auto-aligned strips, square and even stacks.
3.Lifting, shifting, placing in one motion, no manual sorting.
4.Stack layers and spacing adjustable for various specs.

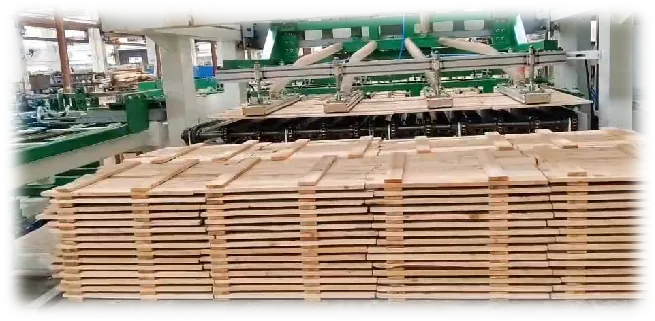

5.Auto receiving, forklift-ready stacks.

Share：

Contact us Inquiry

Detailed Description

Detailed Description

Product Parameters
Equipment Model MDS-500D MDS-700D
main color White + Green White + Green
total power 29.2 kw 29.2 kw
size / L-W-H 10.5×4.2×2.4 m 11.2×5.2×2.4 m
Total Weight about 5850 kg about 5920 kg
processing width 60 mm - 200 mm (Conventional) 60 mm - 200 mm (Conventional)
processing thickness 12 mm - 30 mm (Conventional) 12 mm - 30 mm (Conventional)
processing length 400 - 500 mm 500 - 700 mm
Palletized finished product specifications Max. 1000 × 2000 mm Max. 1400 × 2800 mm
Palletizing method One core board and one spacer, adjustable according to requirements One core board and one spacer, adjustable according to requirements
Palletizing speed 8.3 s/layer 8.6 s/layer
Equipment efficiency about 3-3.5 stacks per hour about 3-3.5 stacks per hour
Traverse motor power 1.5/2.2 kw servo motor 1.5/2.2 kw servo motor
Rotating electrical machine power 1.5 kw servo motor 1.5 kw servo motor
Feeding motor power 1.1 kw × 6 pcs 1.1 kw × 6 pcs
Suction fan power 4 kw × 2 pcs 4 kw × 2 pcs
Working Pressure 0.6-0.8 Mpa, dry compressed air 0.6-0.8 Mpa, dry compressed air
Working Temperature Indoor, -10℃~40℃ Indoor, -10℃~40℃
Power Supply 3-phase 380V, 50Hz, voltage fluctuation ±5% 3-phase 380V, 50Hz, voltage fluctuation ±5%

Related tags：

Previous page： Single-Channel Wood Board Palletizer

Next page： None

Equipment Model	MDS-500D	MDS-700D
main color	White + Green	White + Green
total power	29.2 kw	29.2 kw
size / L-W-H	10.5×4.2×2.4 m	11.2×5.2×2.4 m
Total Weight	about 5850 kg	about 5920 kg
processing width	60 mm - 200 mm (Conventional)	60 mm - 200 mm (Conventional)
processing thickness	12 mm - 30 mm (Conventional)	12 mm - 30 mm (Conventional)
processing length	400 - 500 mm	500 - 700 mm
Palletized finished product specifications	Max. 1000 × 2000 mm	Max. 1400 × 2800 mm
Palletizing method	One core board and one spacer, adjustable according to requirements	One core board and one spacer, adjustable according to requirements
Palletizing speed	8.3 s/layer	8.6 s/layer
Equipment efficiency	about 3-3.5 stacks per hour	about 3-3.5 stacks per hour
Traverse motor power	1.5/2.2 kw servo motor	1.5/2.2 kw servo motor
Rotating electrical machine power	1.5 kw servo motor	1.5 kw servo motor
Feeding motor power	1.1 kw × 6 pcs	1.1 kw × 6 pcs
Suction fan power	4 kw × 2 pcs	4 kw × 2 pcs
Working Pressure	0.6-0.8 Mpa, dry compressed air	0.6-0.8 Mpa, dry compressed air
Working Temperature	Indoor, -10℃~40℃	Indoor, -10℃~40℃
Power Supply	3-phase 380V, 50Hz, voltage fluctuation ±5%	3-phase 380V, 50Hz, voltage fluctuation ±5%
