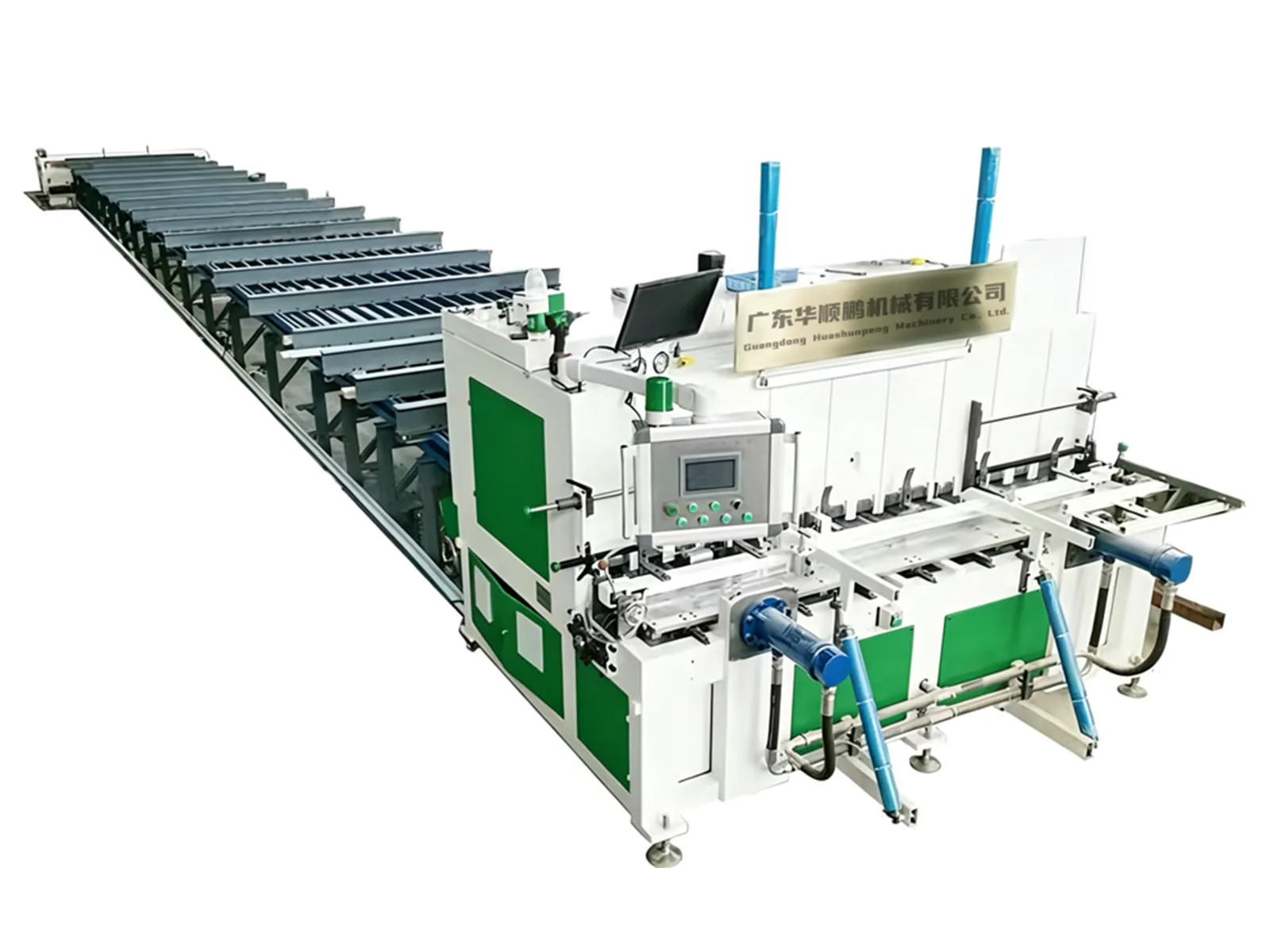

Fully-automatic Continuous Panel Splicing Line

1.Continuous whole-line operation for non‑stop production
2.Bidirectional pressing for flat and compact board surfaces Pressure-forming at ambient temperature, zero risk of thermal deformation
3.Auxiliary heating is optional

Share：

Contact us Inquiry

Detailed Description

Detailed Description

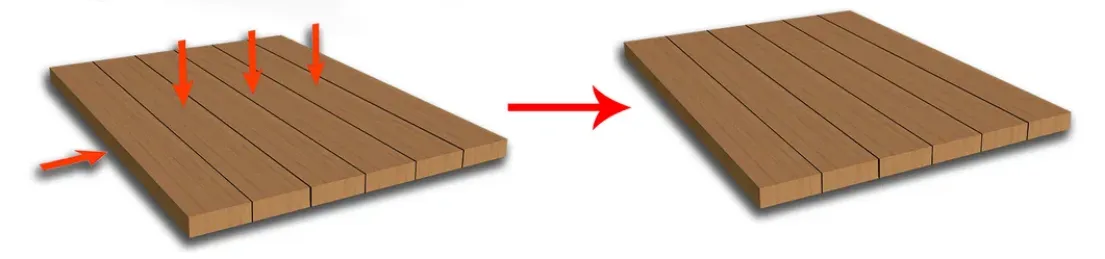

Panelization Example
Process Sequence: Feeding → Gluing → Arranging → Hydraulic Pressing → RT Curing → Stacking
Full PLC control, continuous non-stop operation

No. Item Description
01 Automatic Feeding Auto feed, no manual placement
02 Auto Glue Spreading Metered even gluing saves adhesive
03 Auto Arranging & Aligning Precise end-to-end alignment
04 Hydraulic Pressing Side+top pressure for tight, flat joints
05 RT Curing under Pressure No heat — no warping risk
06 Automatic Stacking Auto stacking for next process

Product Parameters

Equipment Model PBX-48A
main color White + Green
total power 30 kw
size / L-W-H 28000 × 2800 × 2500 mm
Total Weight about 9000 kg
processing width 45 -120 mm
processing thickness 8.5 - 40 mm
processing length 1000 - 2450 mm
Palletized finished product specifications Max. 1300 × 2500 mm
Equipment efficiency 60 - 90 pcs / h
Working Pressure 0.6-0.8 Mpa, dry compressed air
Working Temperature Indoor, -10℃~40℃
Power Supply 3-phase 380V, 50Hz, voltage fluctuation ±5%

Related tags：

Previous page： Three-hot-press Two-line Automatic Panel Splicing Line

Next page： None

No.	Item	Description
01	Automatic Feeding	Auto feed, no manual placement
02	Auto Glue Spreading	Metered even gluing saves adhesive
03	Auto Arranging & Aligning	Precise end-to-end alignment
04	Hydraulic Pressing	Side+top pressure for tight, flat joints
05	RT Curing under Pressure	No heat — no warping risk
06	Automatic Stacking	Auto stacking for next process

Equipment Model	PBX-48A
main color	White + Green
total power	30 kw
size / L-W-H	28000 × 2800 × 2500 mm
Total Weight	about 9000 kg
processing width	45 -120 mm
processing thickness	8.5 - 40 mm
processing length	1000 - 2450 mm
Palletized finished product specifications	Max. 1300 × 2500 mm
Equipment efficiency	60 - 90 pcs / h
Working Pressure	0.6-0.8 Mpa, dry compressed air
Working Temperature	Indoor, -10℃~40℃
Power Supply	3-phase 380V, 50Hz, voltage fluctuation ±5%
