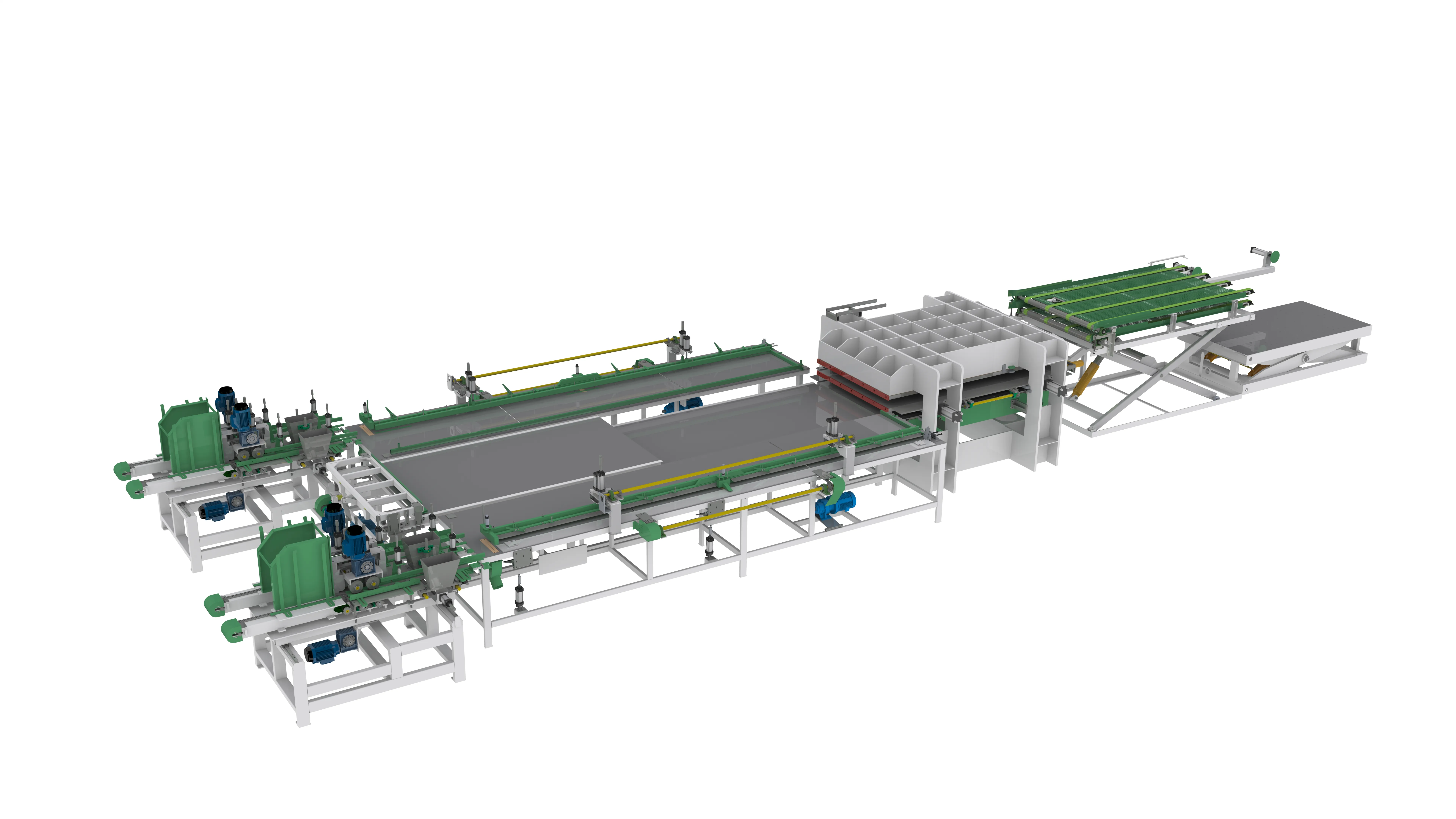

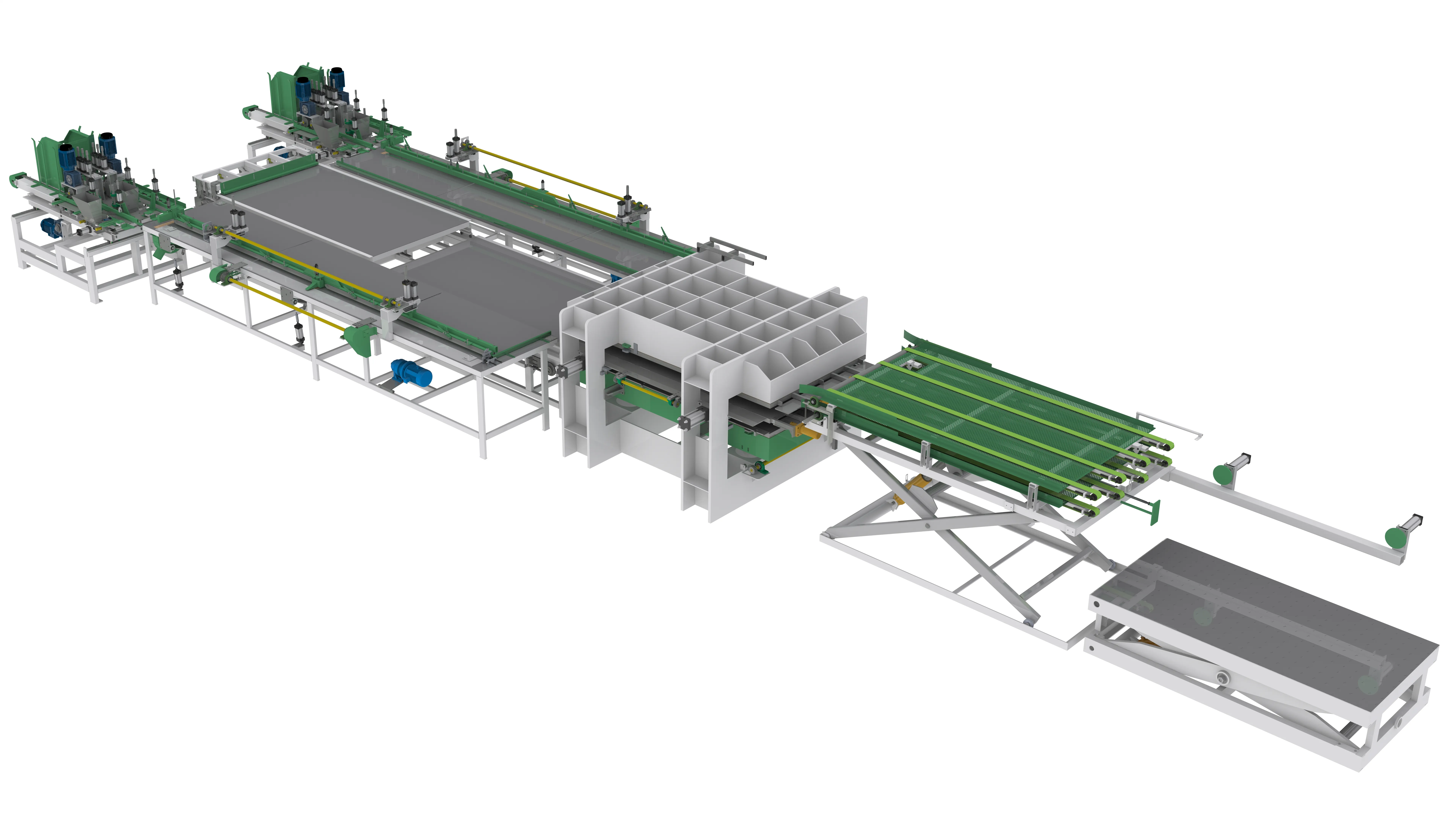

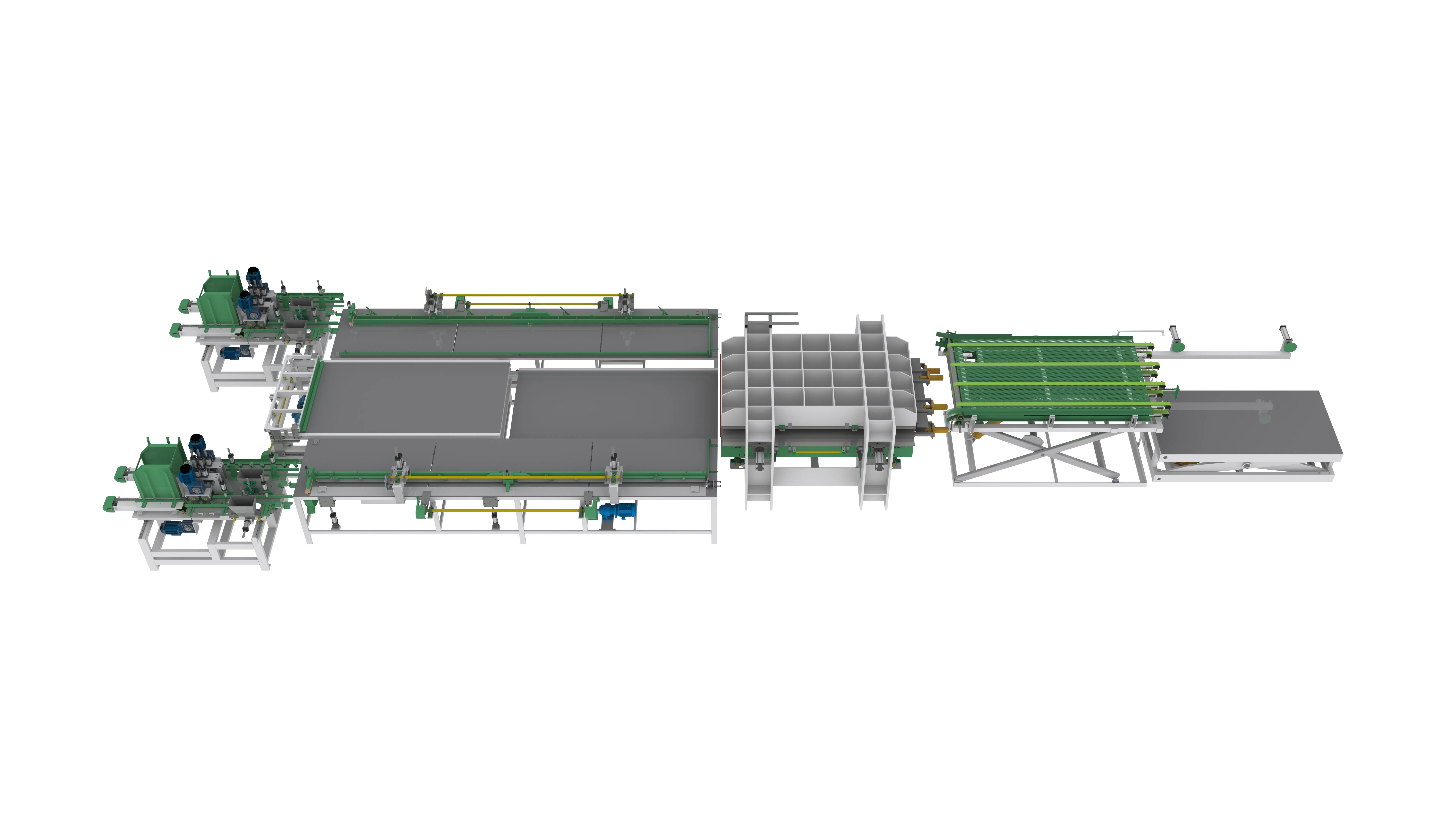

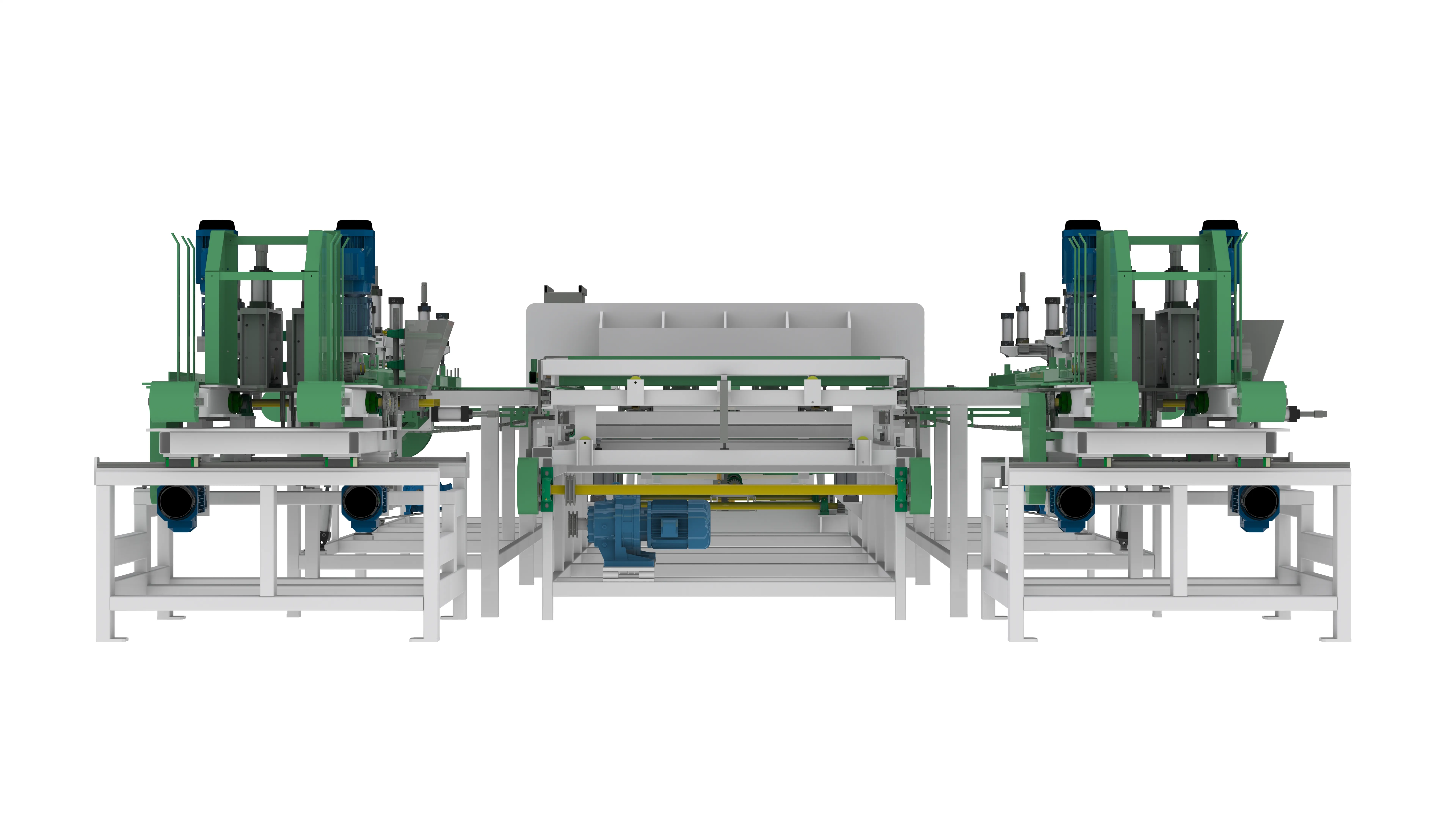

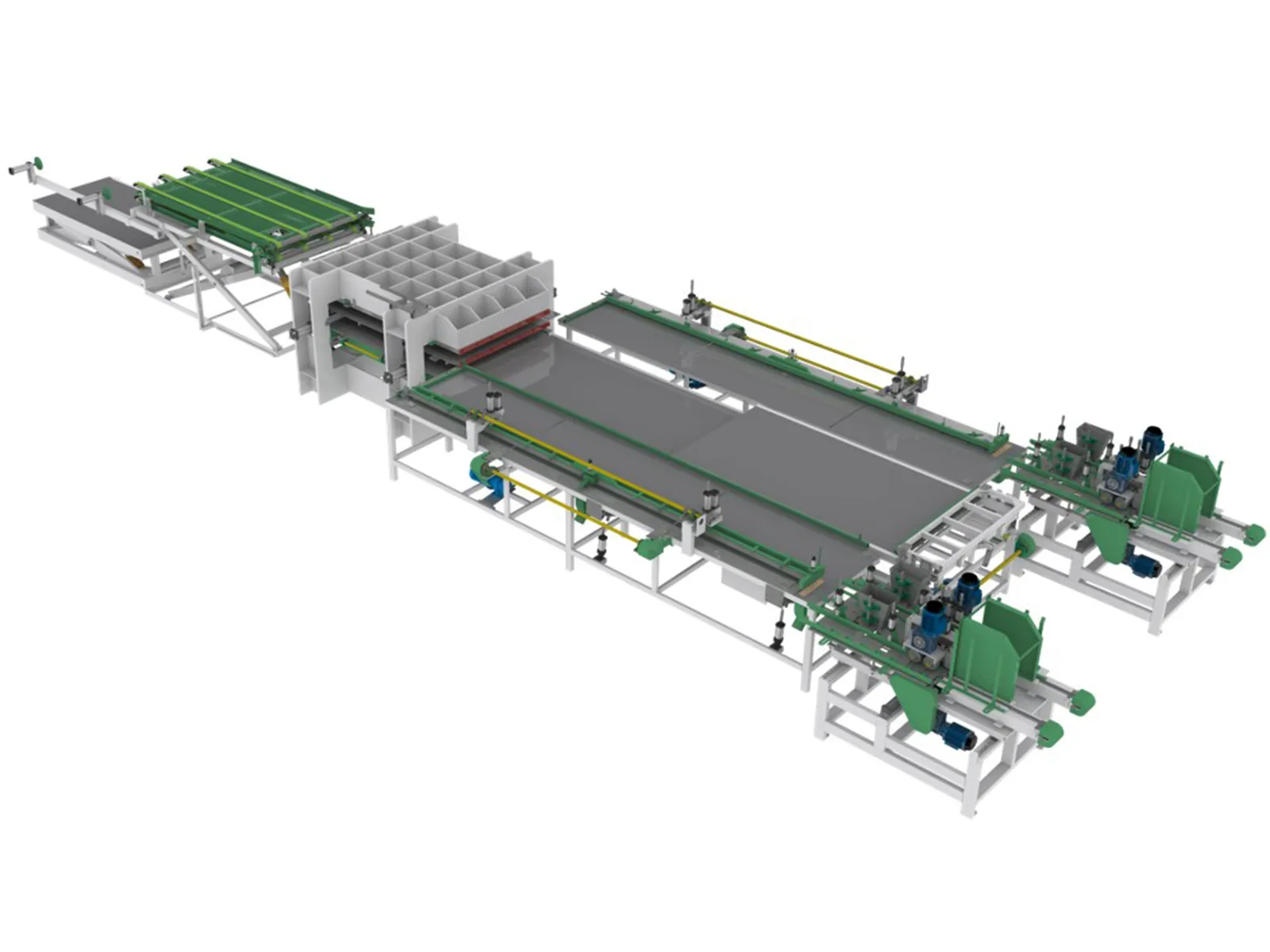

Three-hot-press Two-line Automatic Panel Splicing Line

1.Optional heating by steam or thermal oil
2.The rated temperature reaches 120℃-150℃ for fast and uniform heating of plates.
3.Super-strong pressure, four-sided lateral compression, smooth board output Double-gluing finger-jointing head for single-grade board edge banding

Share：

Contact us Inquiry

Detailed Description

Detailed Description

Product Parameters
Equipment Model SYE-48A
total power 44 kw
size / L-W-H 15.6 × 4.6 × 2.2 m
Total Weight 13100 kg
Processing wood board length 300-700 mm
Processing wood board width 30-120 mm
Processing wood board thickness 8-30 mm
Raw material moisture content 8-12%
Finished product specifications 4 × 8 ft(Other sizes can be customized)
Work cycle 2.5-3 minutes per time
Equipment efficiency about 300 - 380 pcs / 8 h

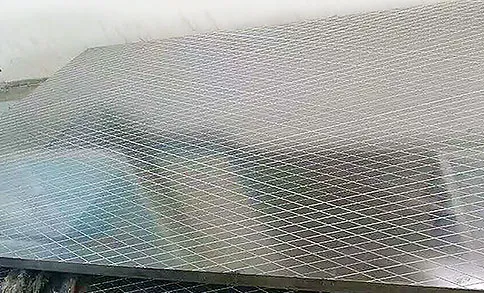

platen material stainless steel countertop
Glue Dispenser Power 6 kw × 2 pcs
Splicing Machine Power 7.5 kw × 2 pcs
Push-plate frame power 1.5 kw

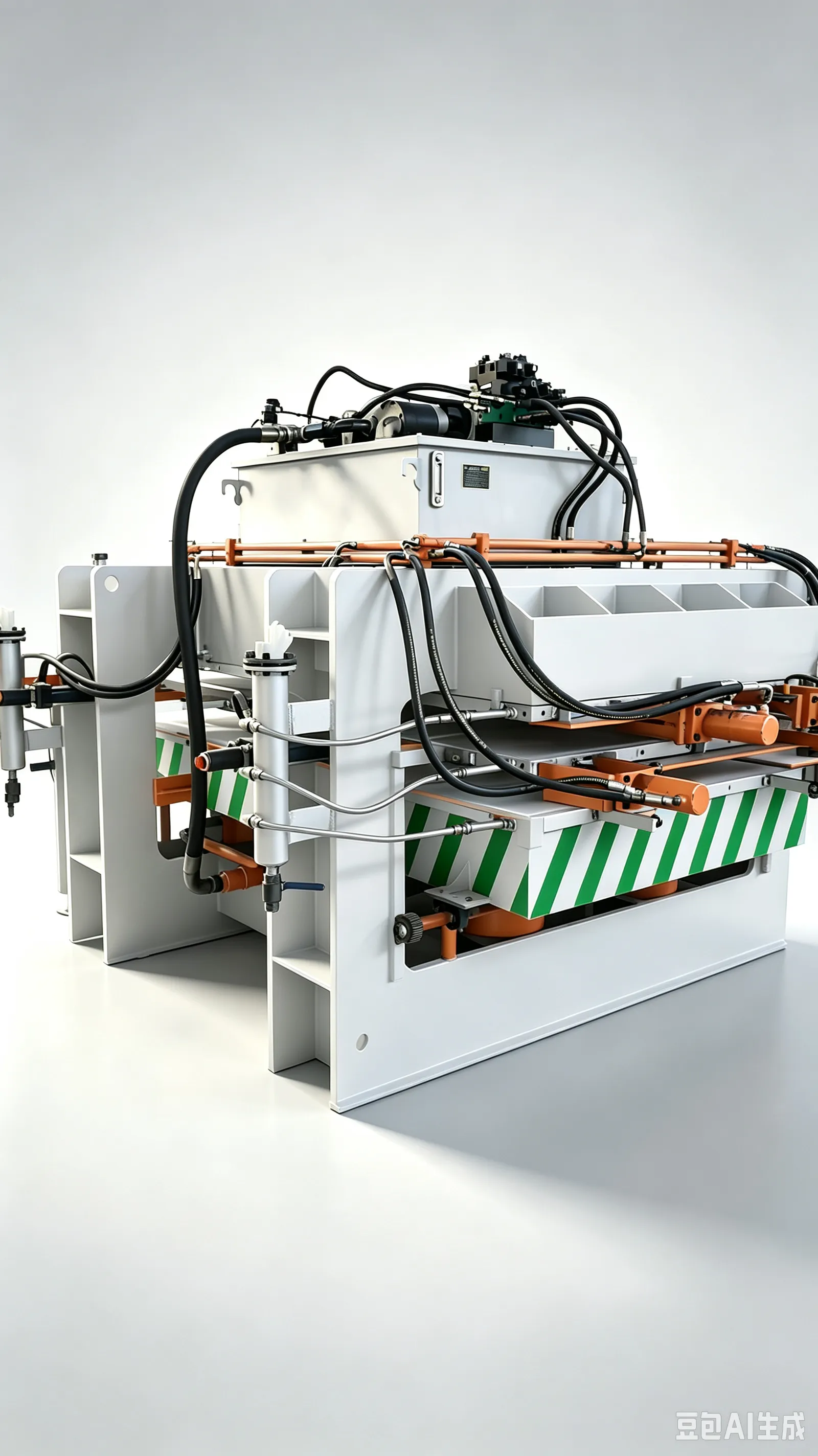

Hot press power 11 kw
Side pressure cylinder pressure 20 t
Bottom cylinder pressure 300 t
Working Pressure 0.6-0.8 Mpa，Dry compressed air
Equipment composition Gluing Machine ×2 + Panel Splicing Line ×2Pushing Table ×1 + Hot Press Machine ×1Board-Receiving Rack ×1 + Lifting Platform ×1

Related tags：

Previous page： None

Next page： Fully-automatic Continuous Panel Splicing Line

Equipment Model	SYE-48A
total power	44 kw
size / L-W-H	15.6 × 4.6 × 2.2 m
Total Weight	13100 kg
Processing wood board length	300-700 mm
Processing wood board width	30-120 mm
Processing wood board thickness	8-30 mm
Raw material moisture content	8-12%
Finished product specifications	4 × 8 ft(Other sizes can be customized)
Work cycle	2.5-3 minutes per time
Equipment efficiency	about 300 - 380 pcs / 8 h
platen material	stainless steel countertop
Glue Dispenser Power	6 kw × 2 pcs
Splicing Machine Power	7.5 kw × 2 pcs
Push-plate frame power	1.5 kw
Hot press power	11 kw
Side pressure cylinder pressure	20 t
Bottom cylinder pressure	300 t
Working Pressure	0.6-0.8 Mpa，Dry compressed air
Equipment composition	Gluing Machine ×2 + Panel Splicing Line ×2Pushing Table ×1 + Hot Press Machine ×1Board-Receiving Rack ×1 + Lifting Platform ×1
