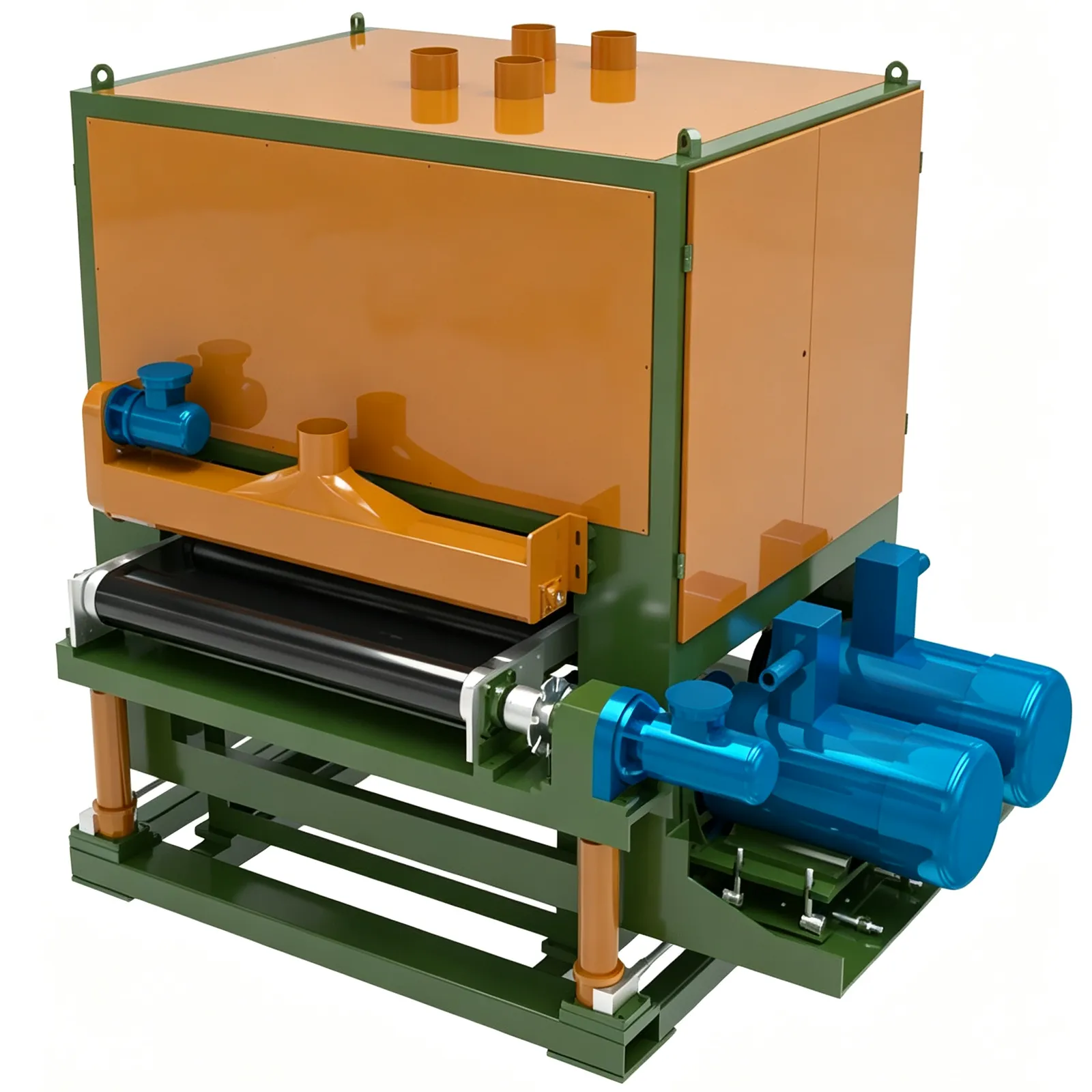

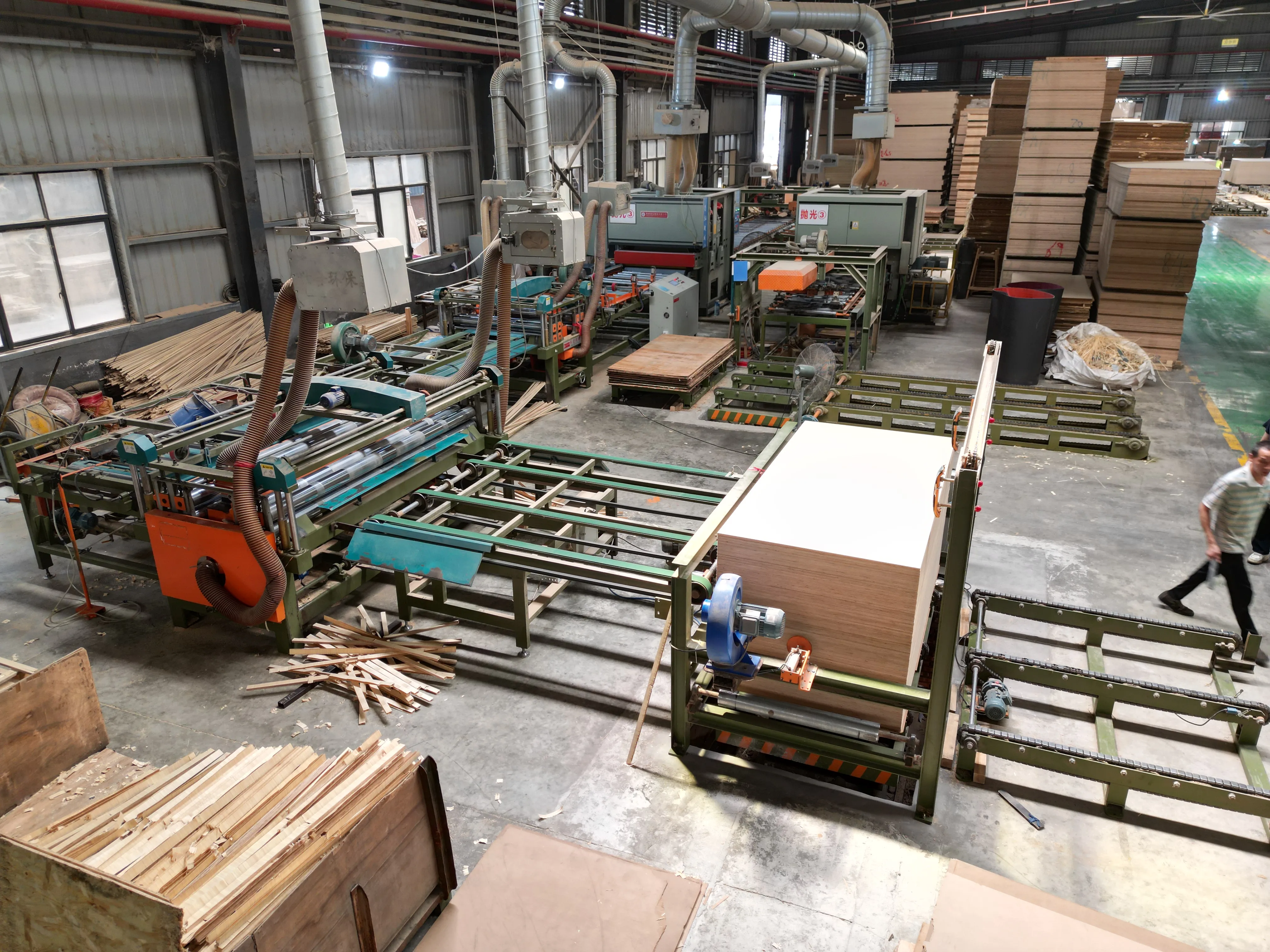

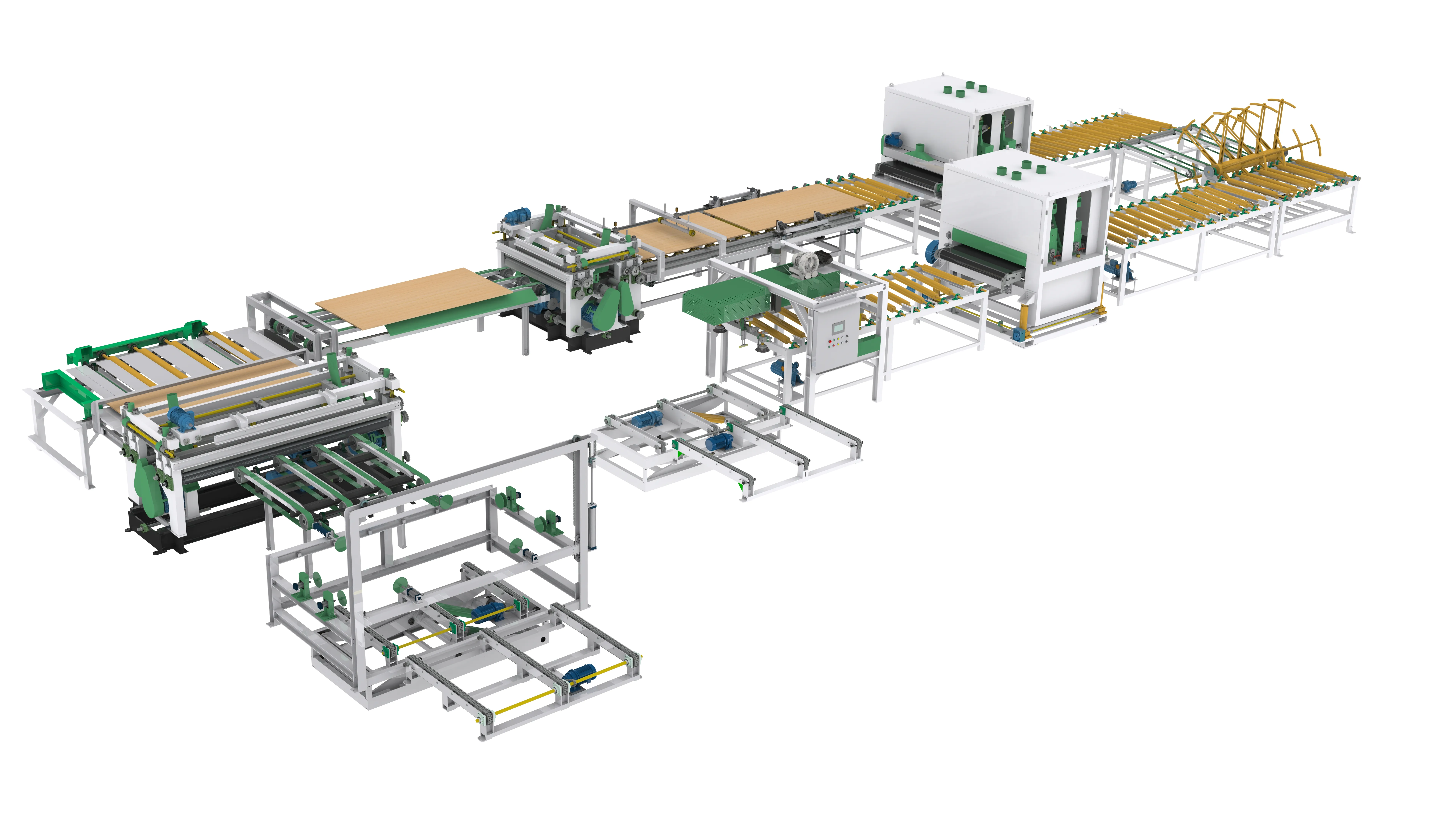

Fully automated board sanding and edge-trimming production line

1.Automated panel polishing line combining precision surface sanding/polishing with four-side sizing sawing.
2.Full-plate sanding removes scratches, unevenness, and defects.
3.Four-side sawing trims rough edges for precise, consistent dimensions.
4.Result: smooth surfaces and accurate finished sizes.

Share：

Contact us Inquiry

Detailed Description

Detailed Description

Product Parameters
No. Parameter Item Specification
1 Equipment Model BSGN5214R-R
2 Processing width 80-1300 mm
3 Thickness opening volume 0~100 mm
4 Processing length ≥860 mm
5 Processing precision +0.1 mm
6 Inclination Angle of Front Sand Frame 5° left
7 First sanding frame φ320 rubber roller
8 Second sand frame φ210 Rubber roller + polishing pad
9 Power of auto-feed motor 7.5 kw, feeding speed 5-50m/min
10 Power of worktable elevating system 1.1 kw
11 Power of sand belt motor 30+37 kw
12 Dust suction air volume 20000 ㎡/h
13 Overall dimension 2.7×2.82×2.5 m
14 Net weight 11000 kg
